Dr-20A: Repairing Injector #5 Control Circuit

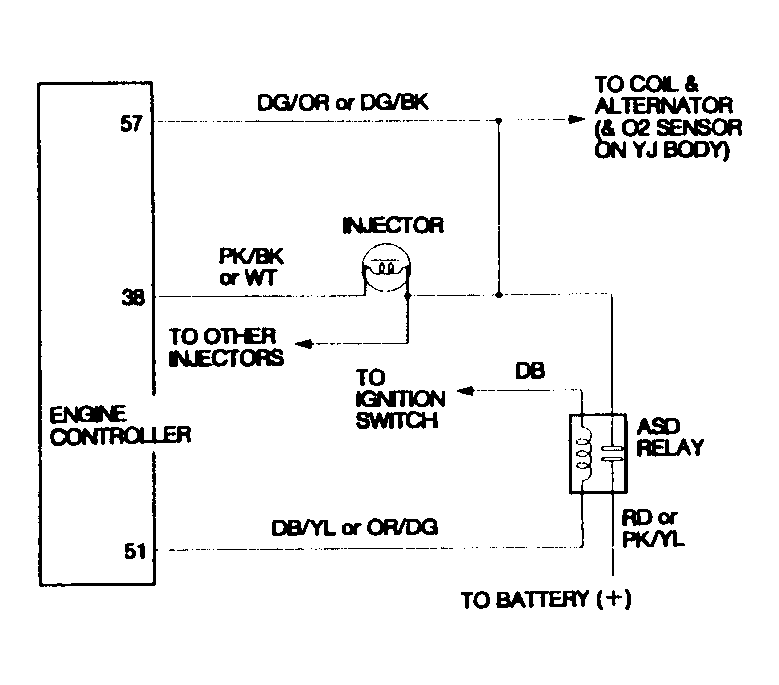

Fig 1: Test DR-20A Schematic, Injector #5 Control Circuit

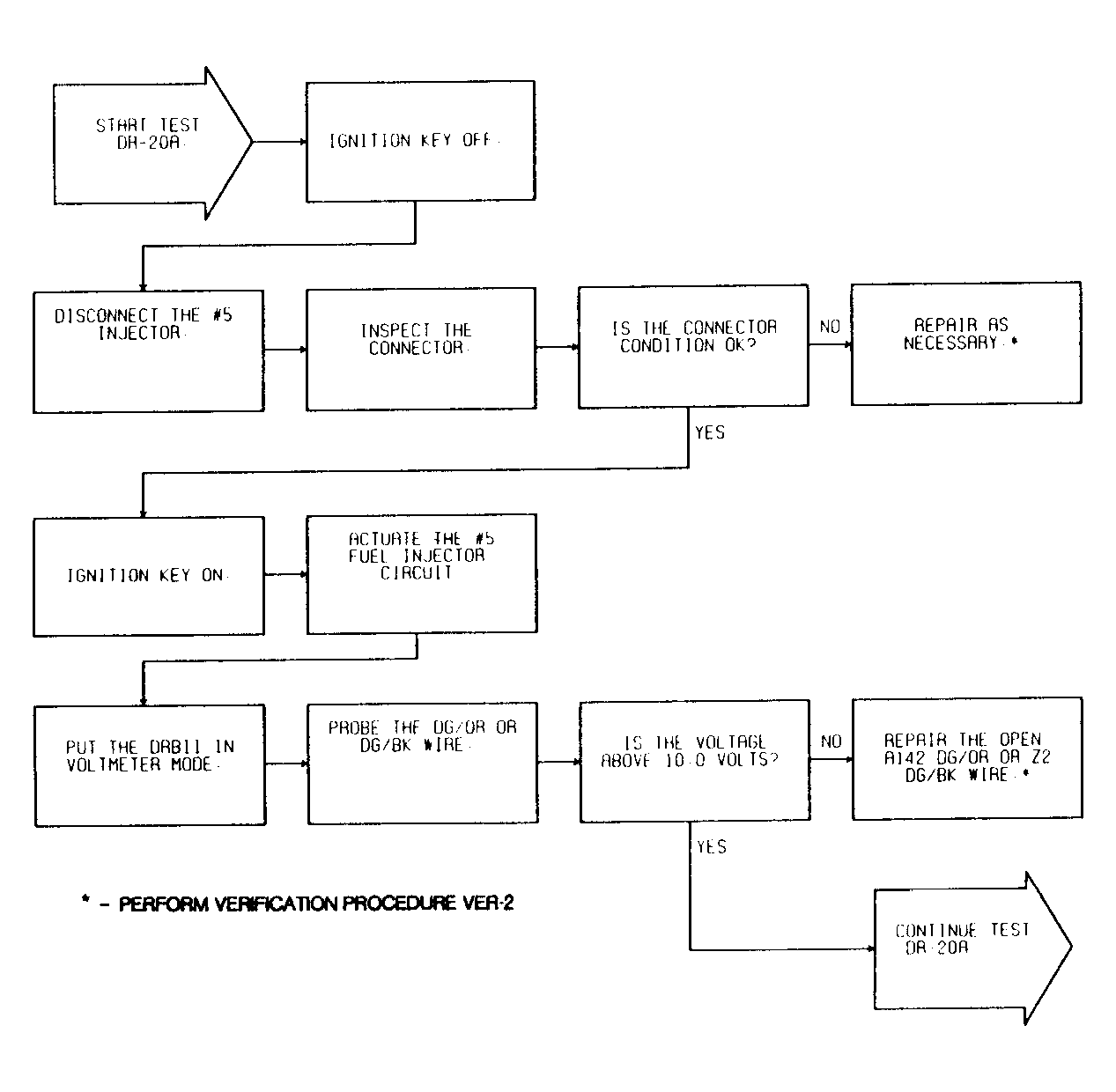

Fig 2: Test DR-20A (1 of 3) Injector #5 Control Circuit

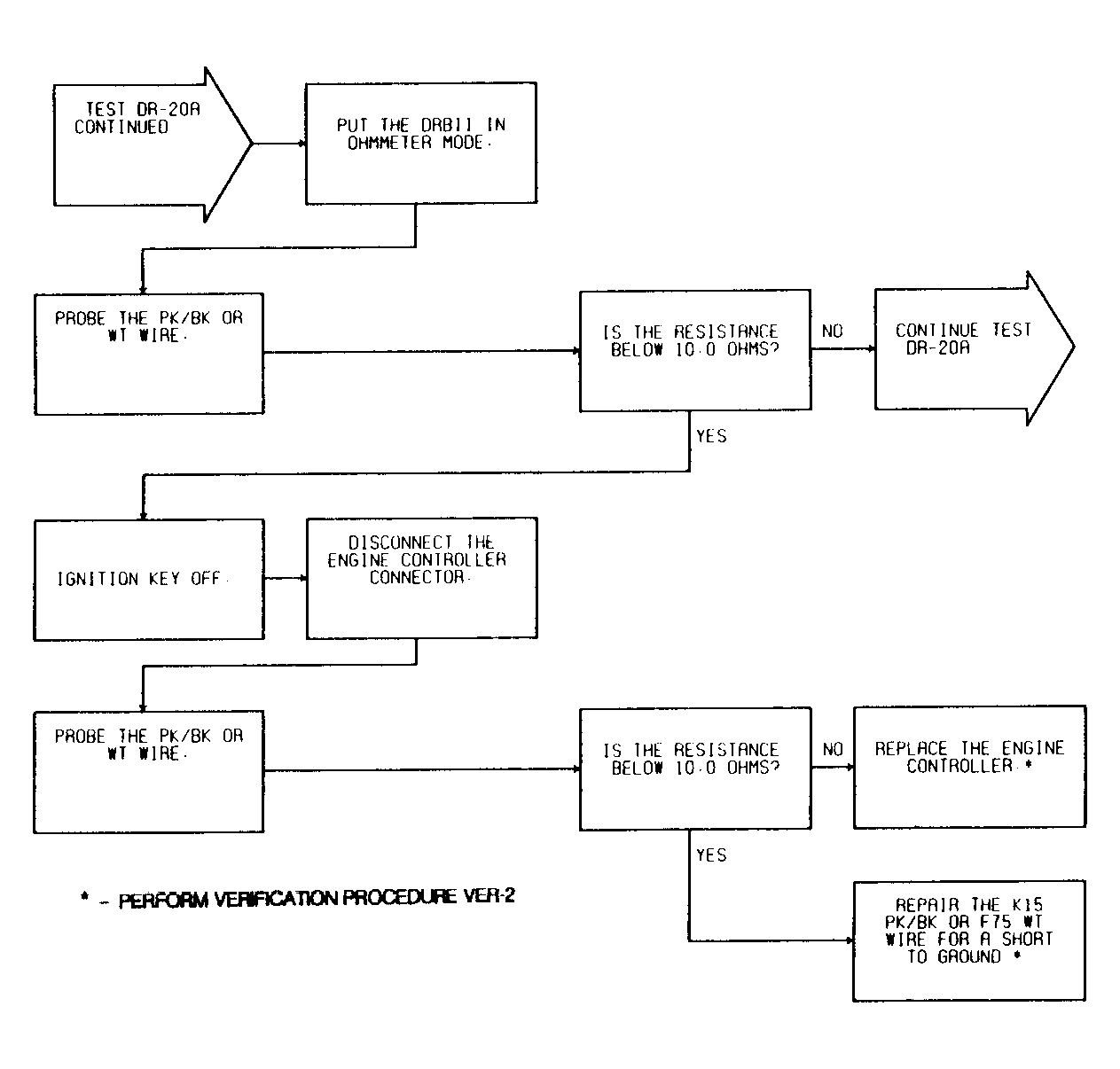

Fig 3: Test DR-20A (2 of 3) Injector #5 Control Circuit

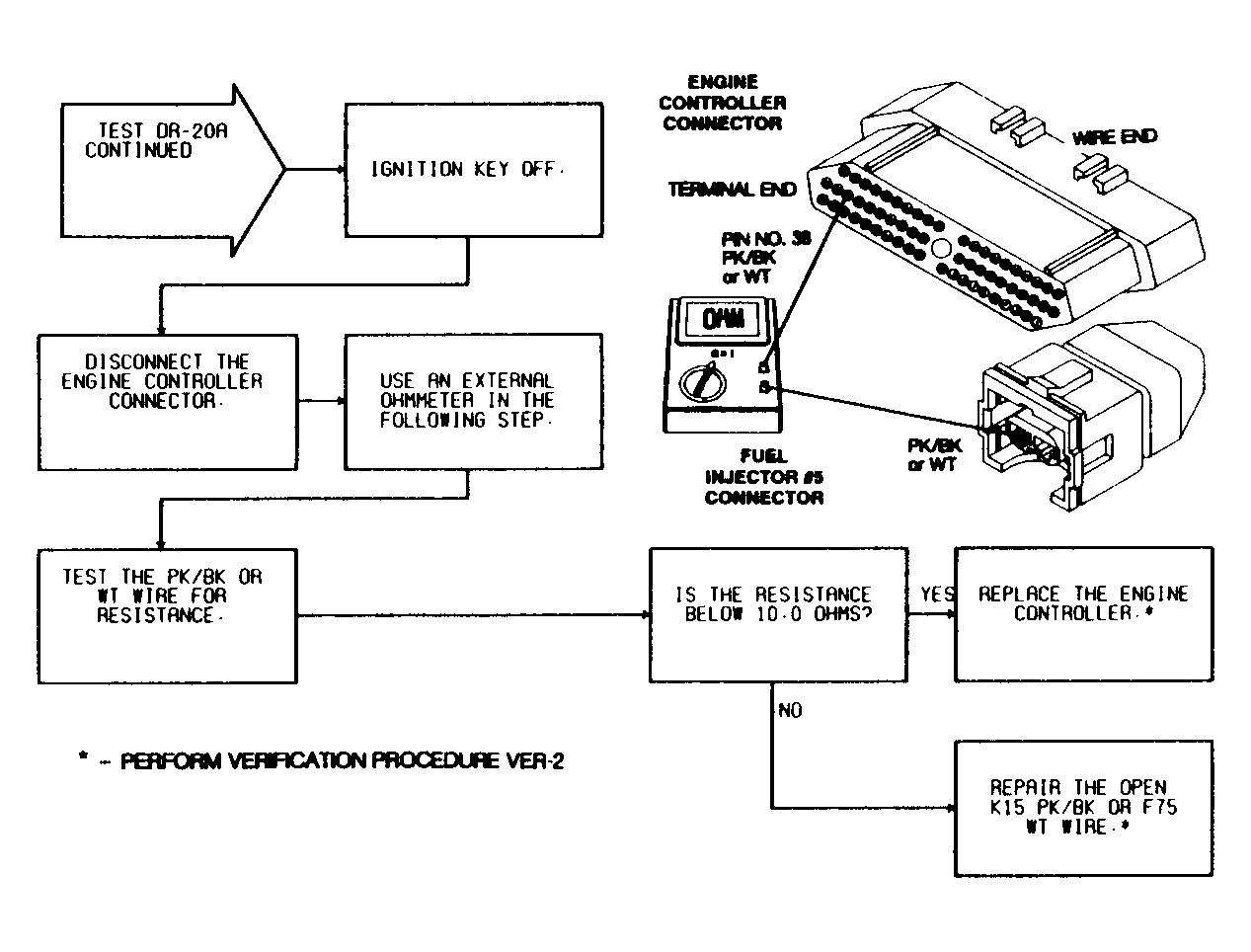

Fig 4: Test DR-20A (3 of 3) Injector #5 Control Circuit
