Dr-19A: Repairing Injector #4 Control Circuit

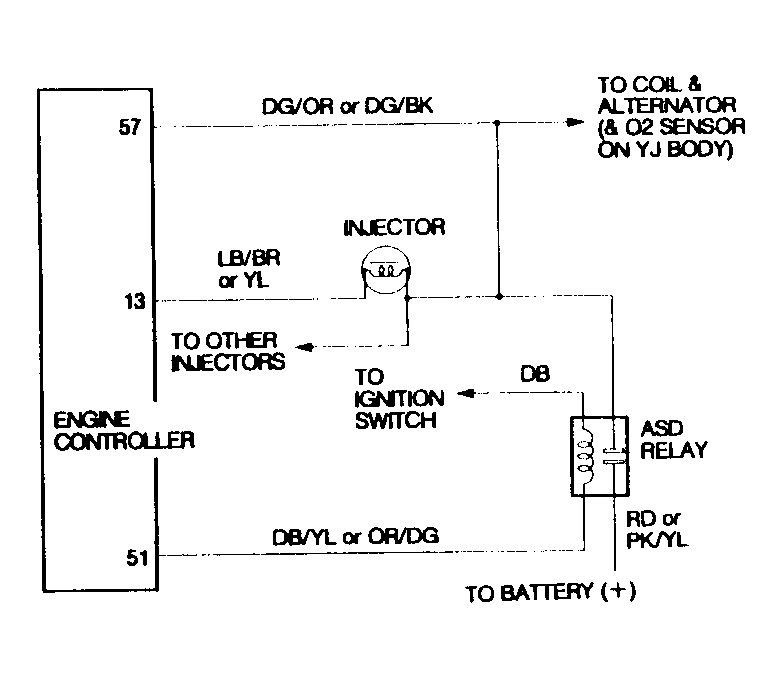

Fig 1: Test DR-19A (1 of 3) Injector #4 Control Circuit

G91A13953

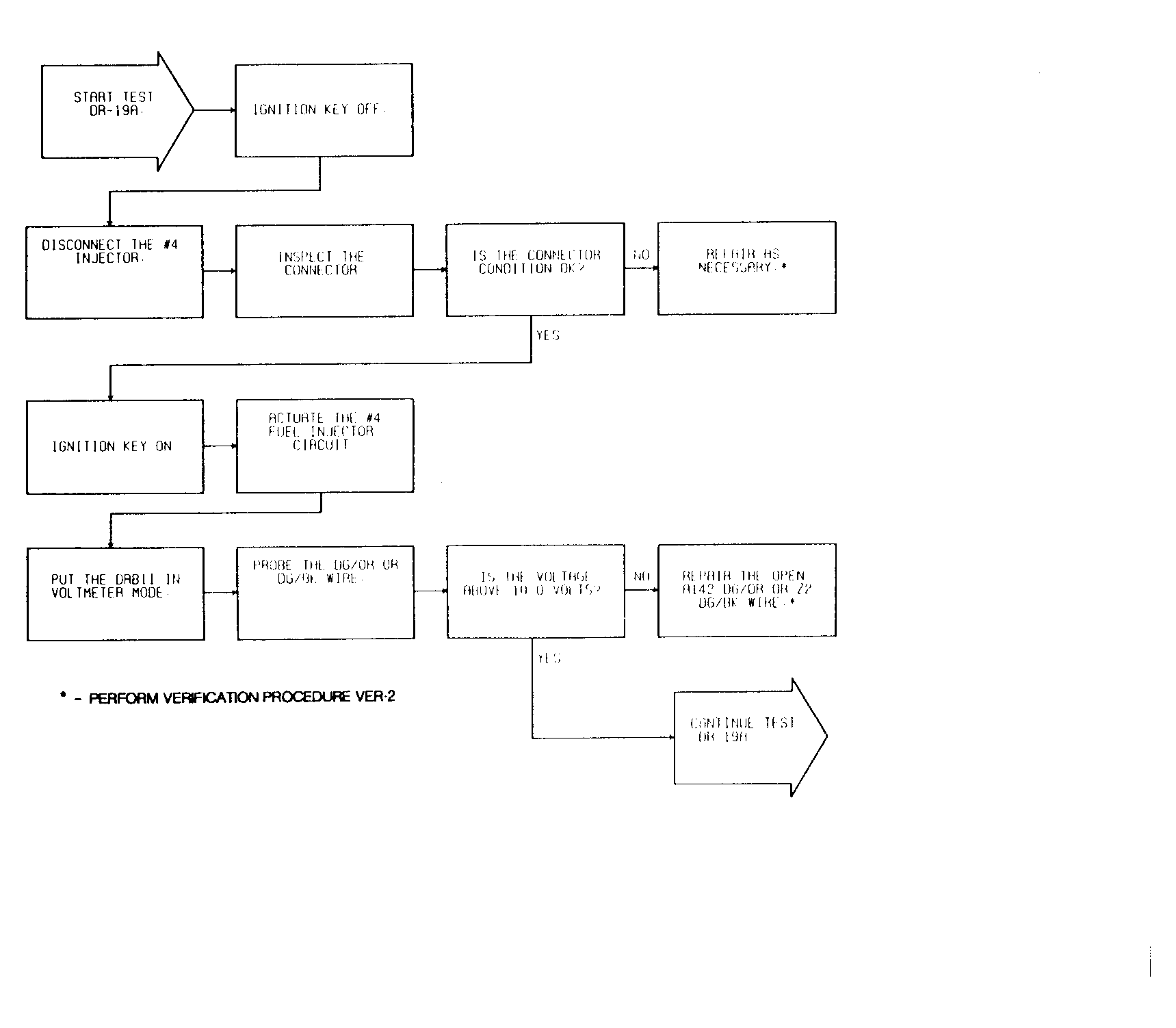

Fig 2: Test DR-19A (1 of 3) Injector #4 Control Circuit

G91H13893

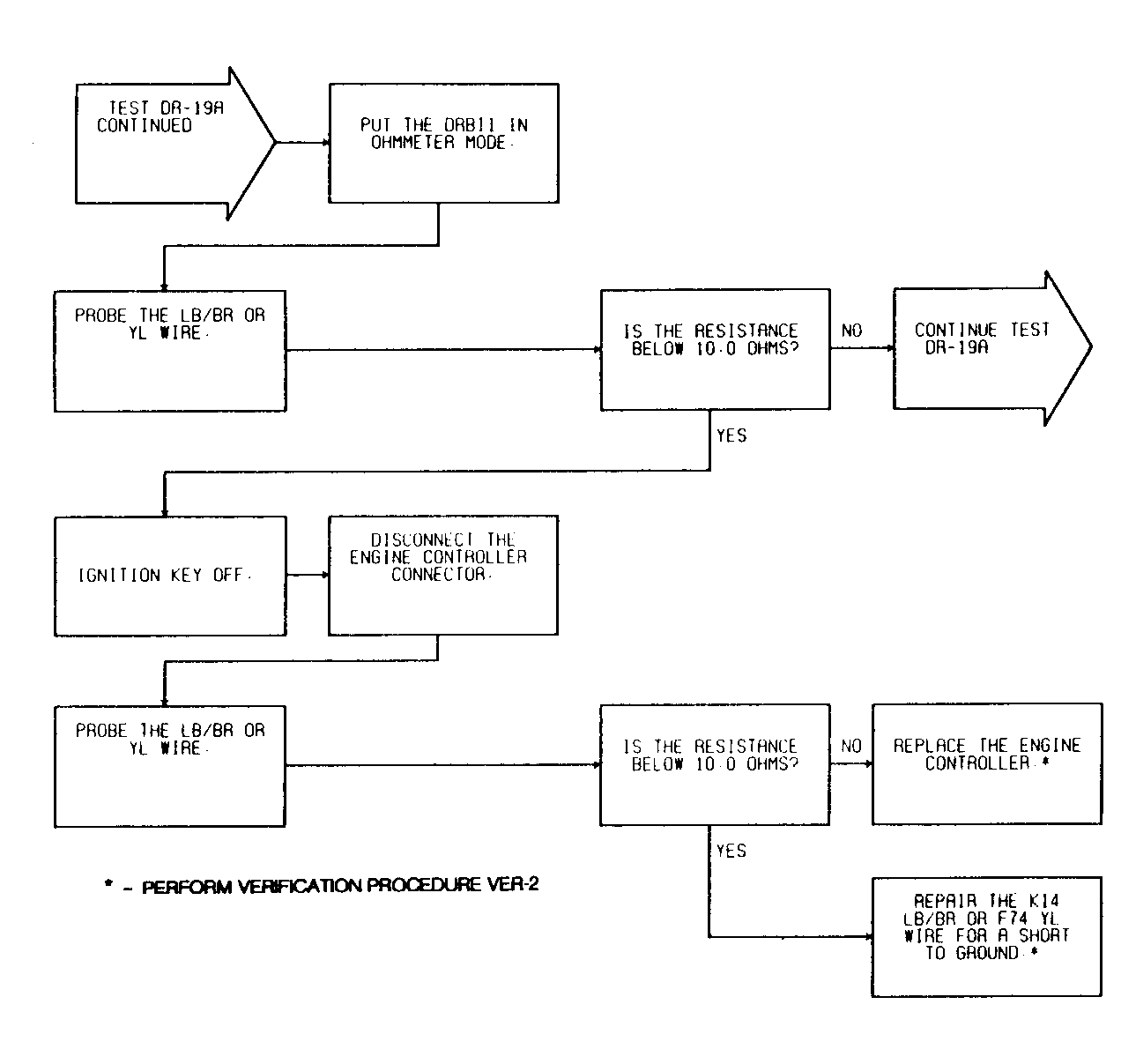

Fig 3: Test DR-19A (2 of 3) Injector #4 Control Circuit

G91I13894

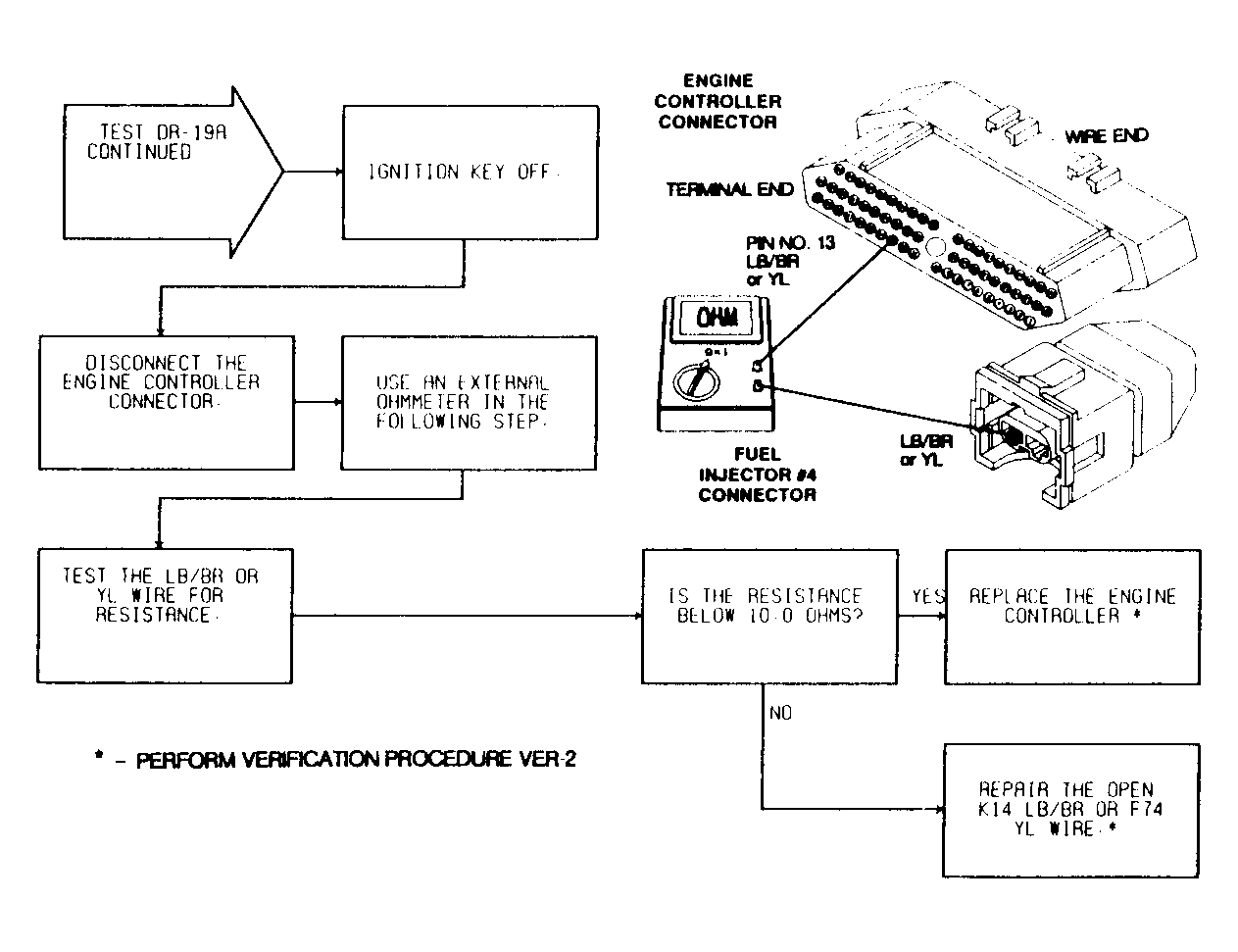

Fig 4: Test DR-19A (3 of 3) Injector #4 Control Circuit

G91J13895
