Dr-17A: Repairing Injector #2 Control Circuit

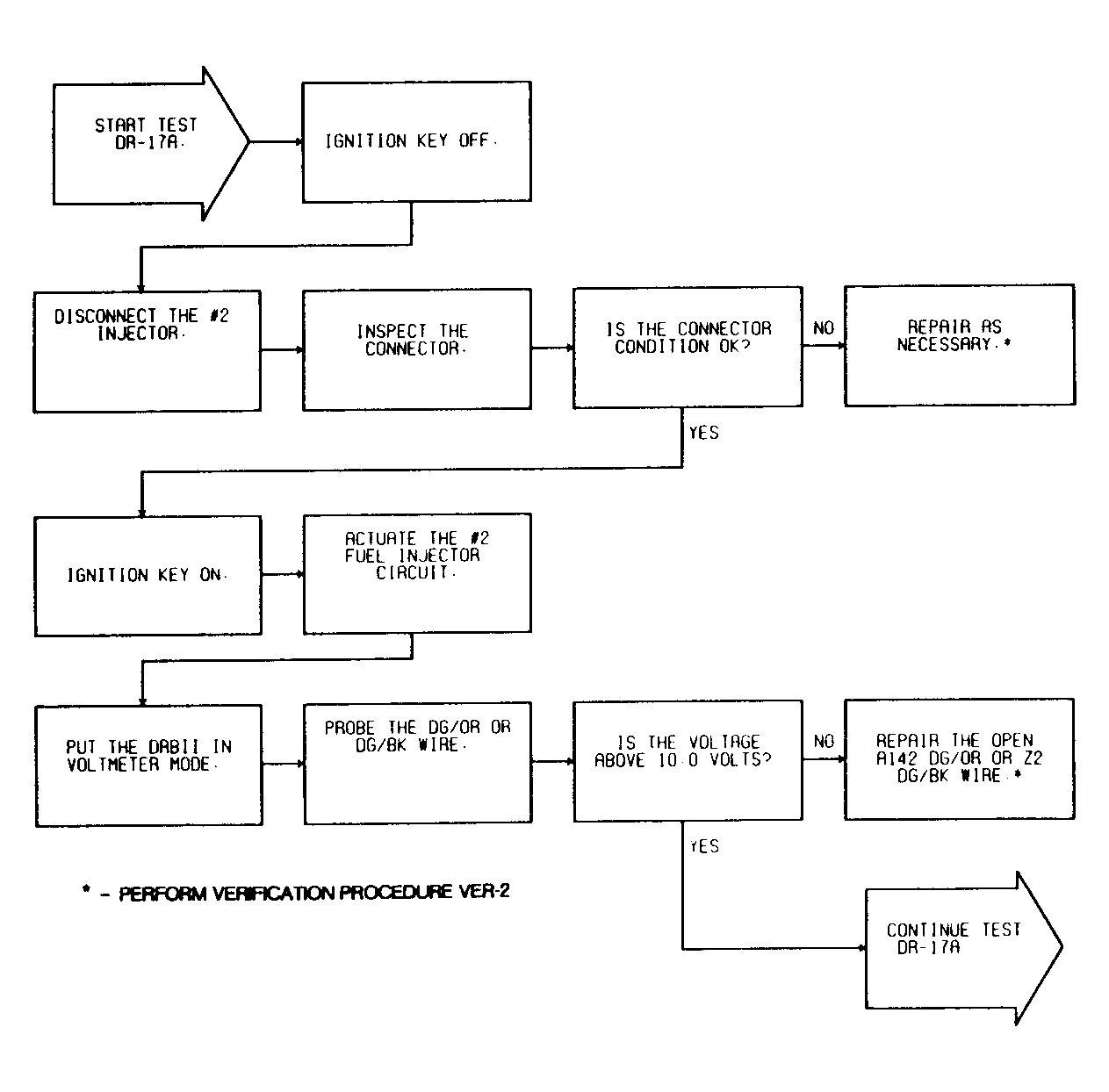

Fig 1: Test DR-17A Schematic, Injector #2 Control Circuit

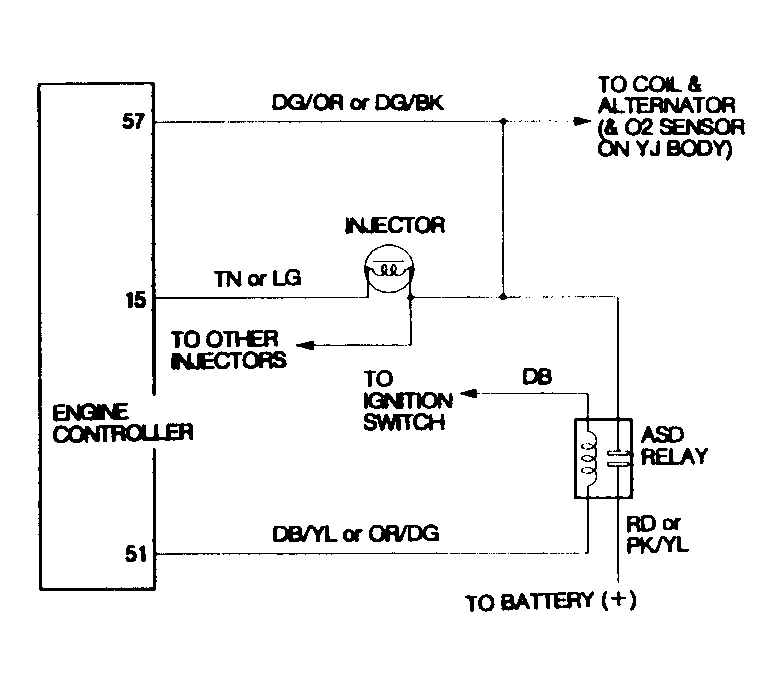

Fig 2: Test DR-17A (1 of 3) Injector #2 Control Circuit

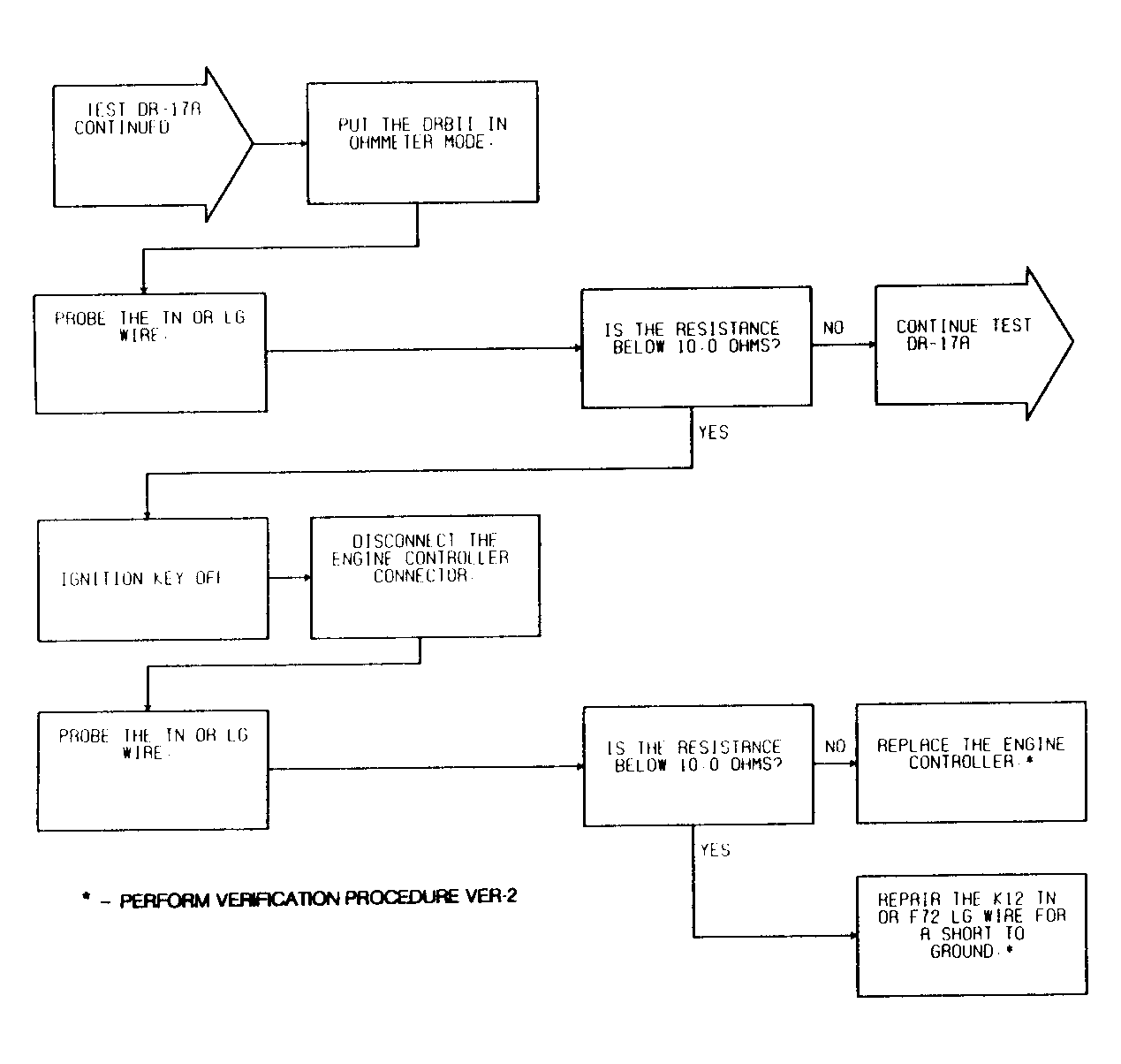

Fig 3: Test DR-17A (2 of 3) Injector #2 Control Circuit

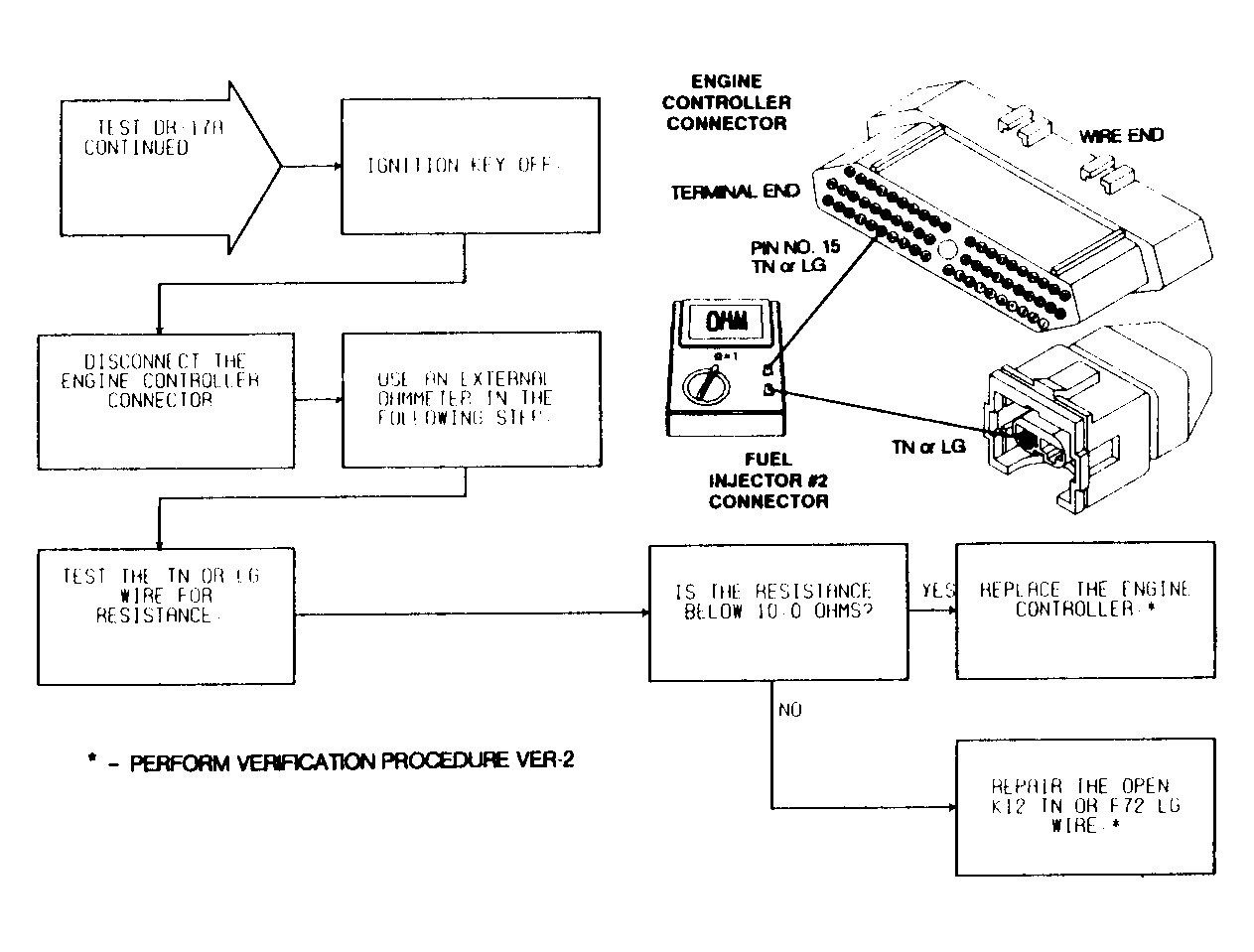

Fig 4: Test DR-17A (3 of 3) Injector #2 Control Circuit
