Dr-18A: Repairing Injector #3 Control Circuit

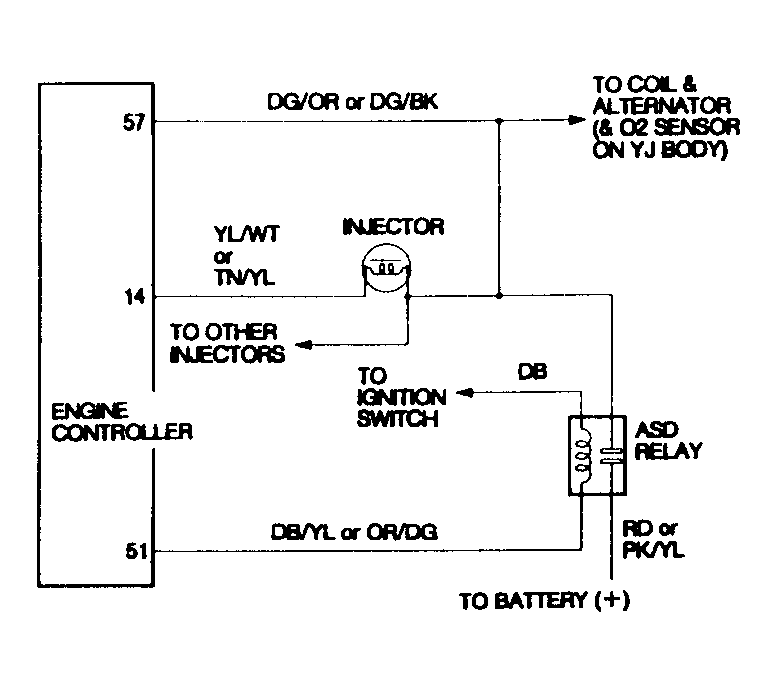

Fig 1: Test DR-18A Schematic, Injector #3 Control Circuit

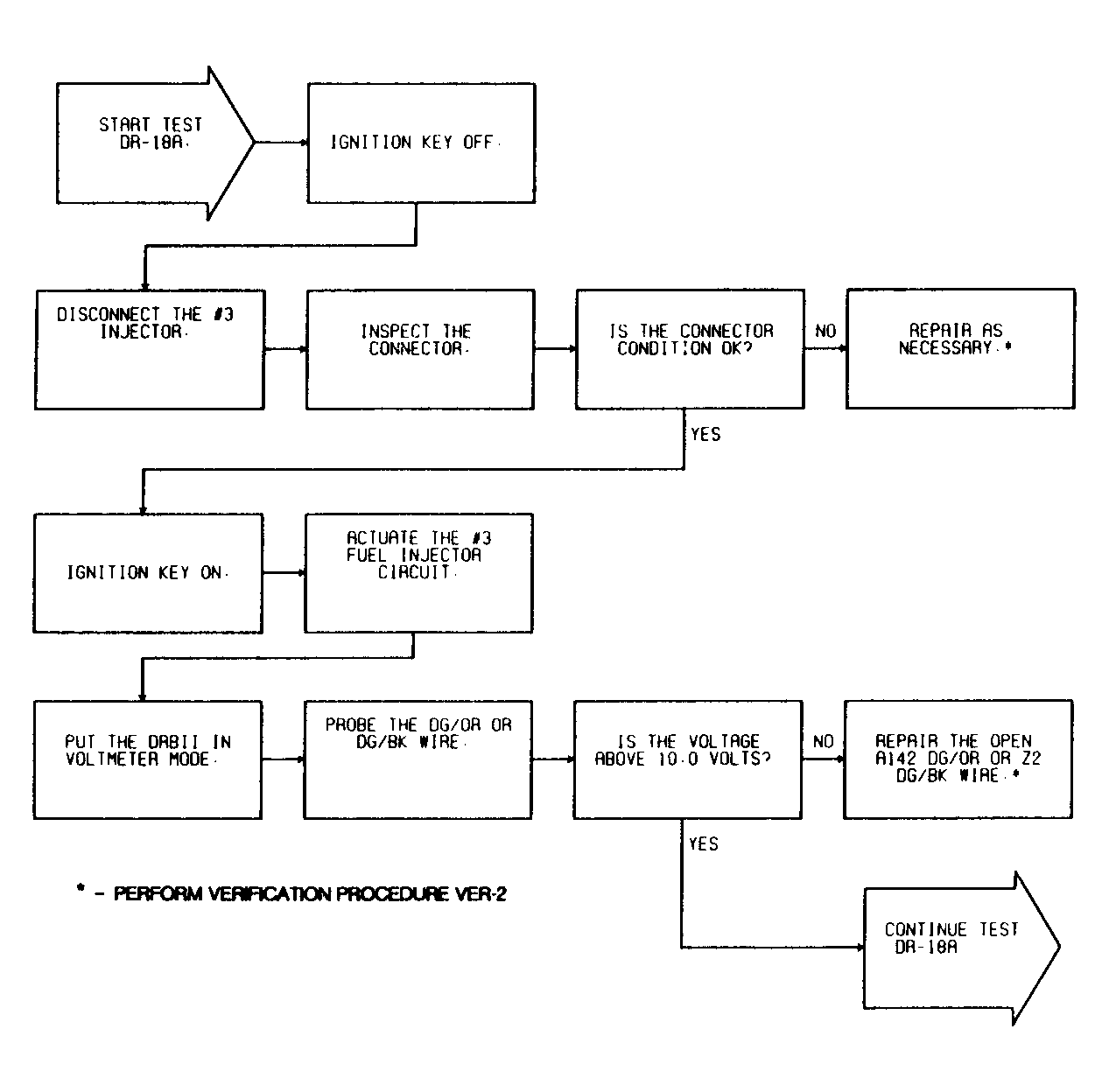

Fig 2: Test DR-18A (1 of 3) Injector #3 Control Circuit

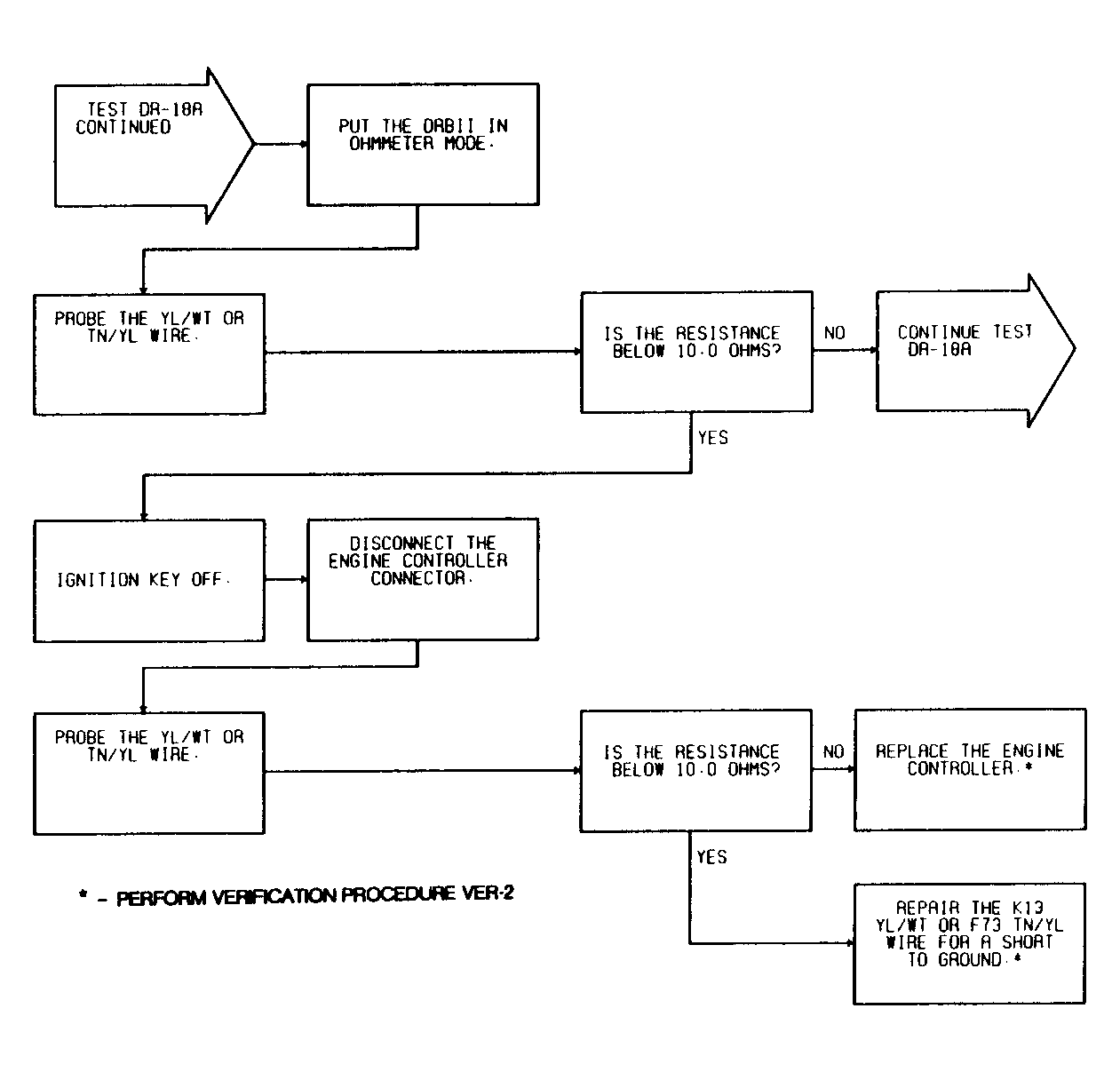

Fig 3: Test DR-18A (2 of 3) Injector #3 Control Circuit

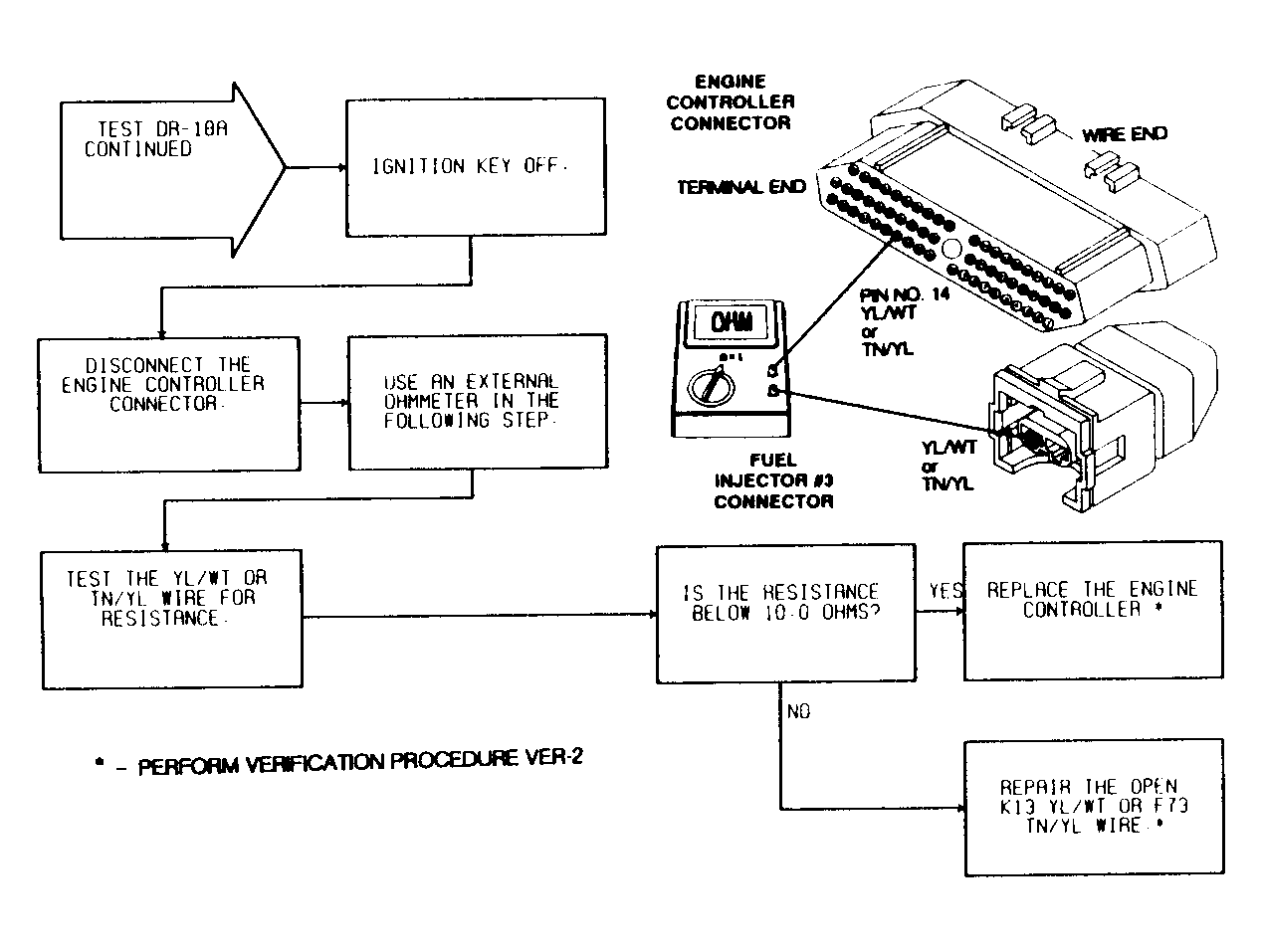

Fig 4: Test DR-18A (3 of 3) Injector #3 Control Circuit
