Wiring Diagrams

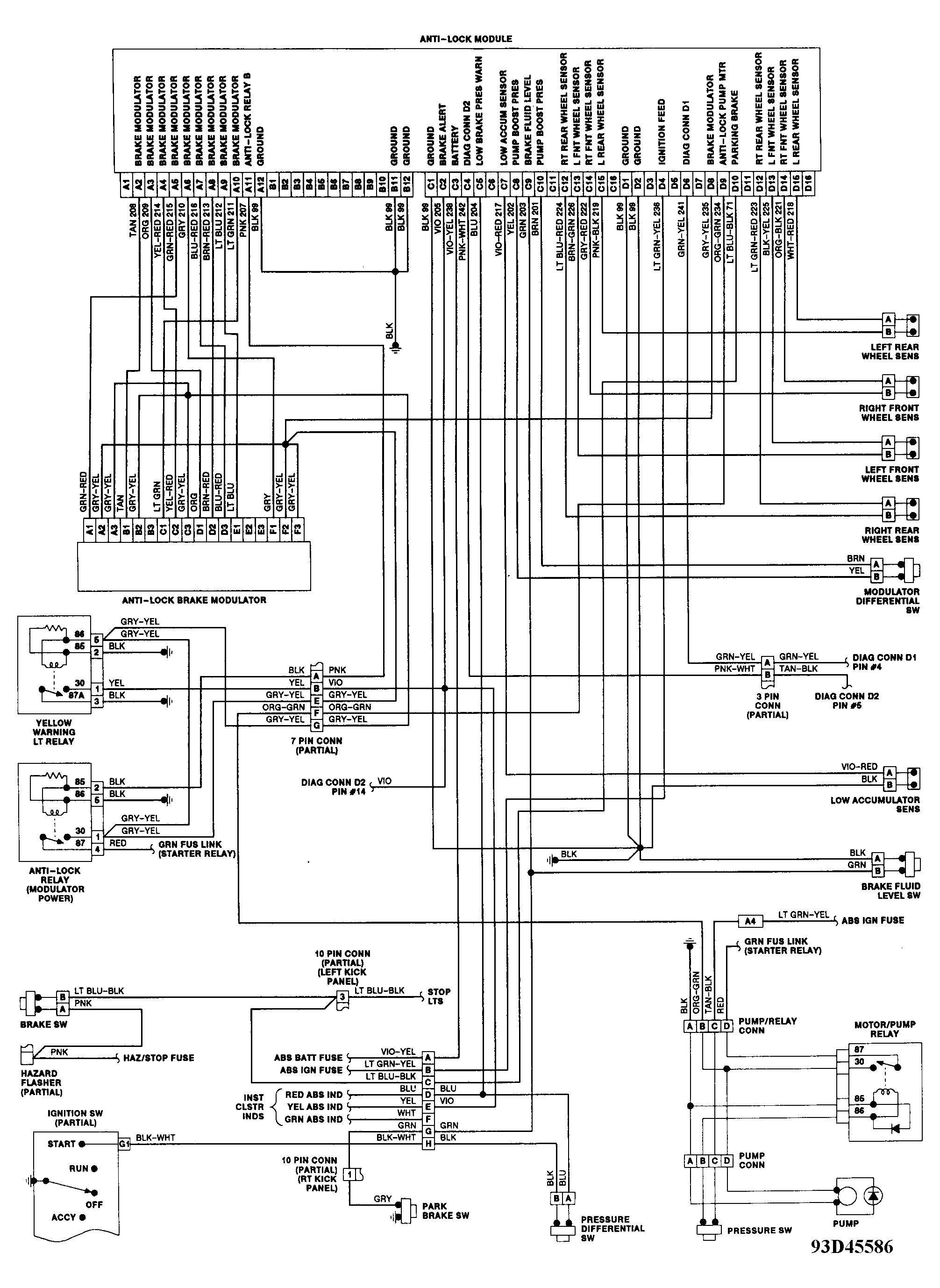

Fig 1: Anti-Lock Brake System Wiring Diagram (1989)

G93D45586

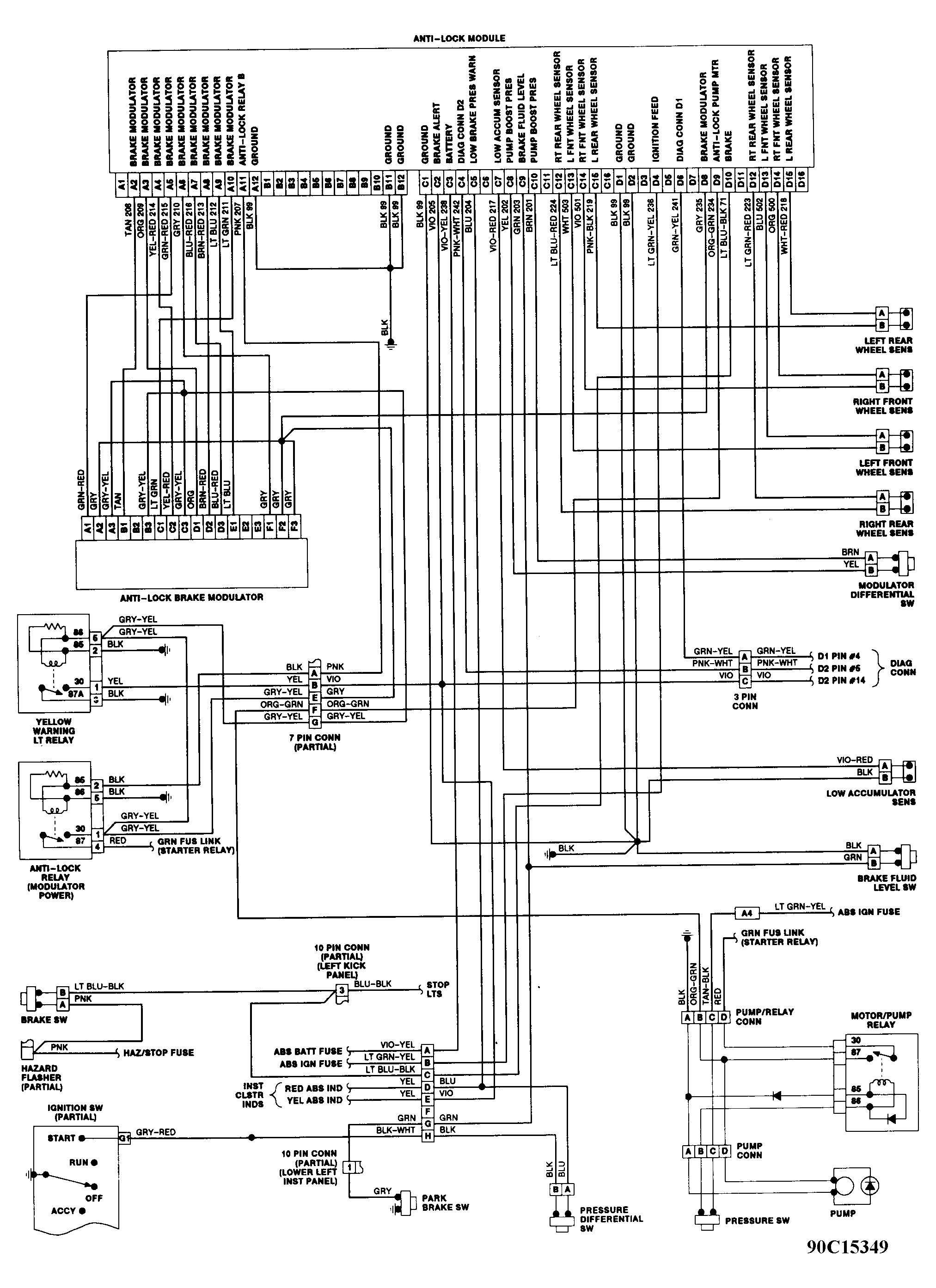

Fig 2: Anti-Lock Brake System Wiring Diagram (1990)

G90C15349

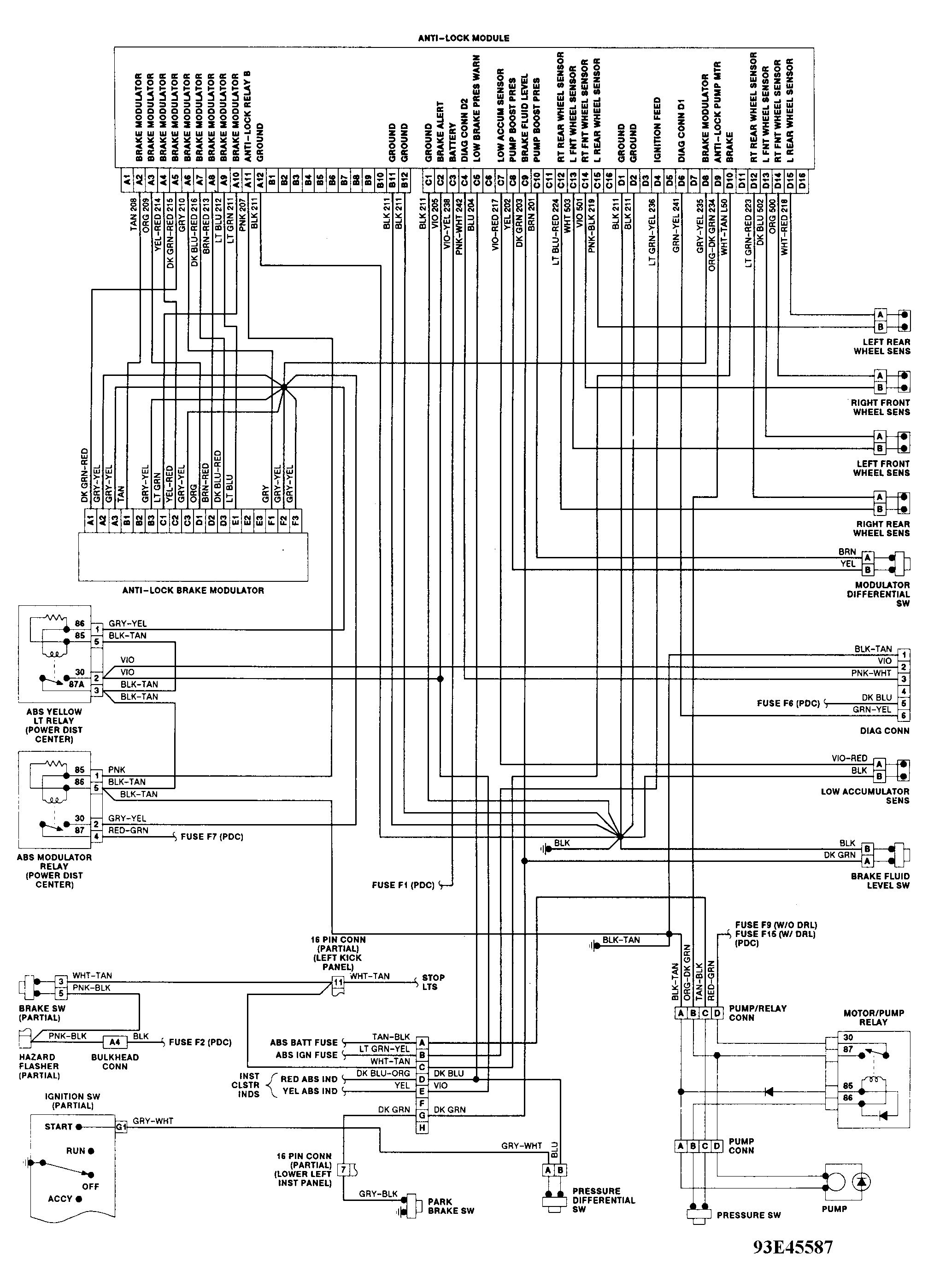

Fig 3: Anti-Lock Brake System Wiring Diagram (1991)

G93E45587
