Code 812 - Pump/Motor Fault
Code 812 - Pump/Motor Fault
Fig 1: Pump Connector (Pump Side)

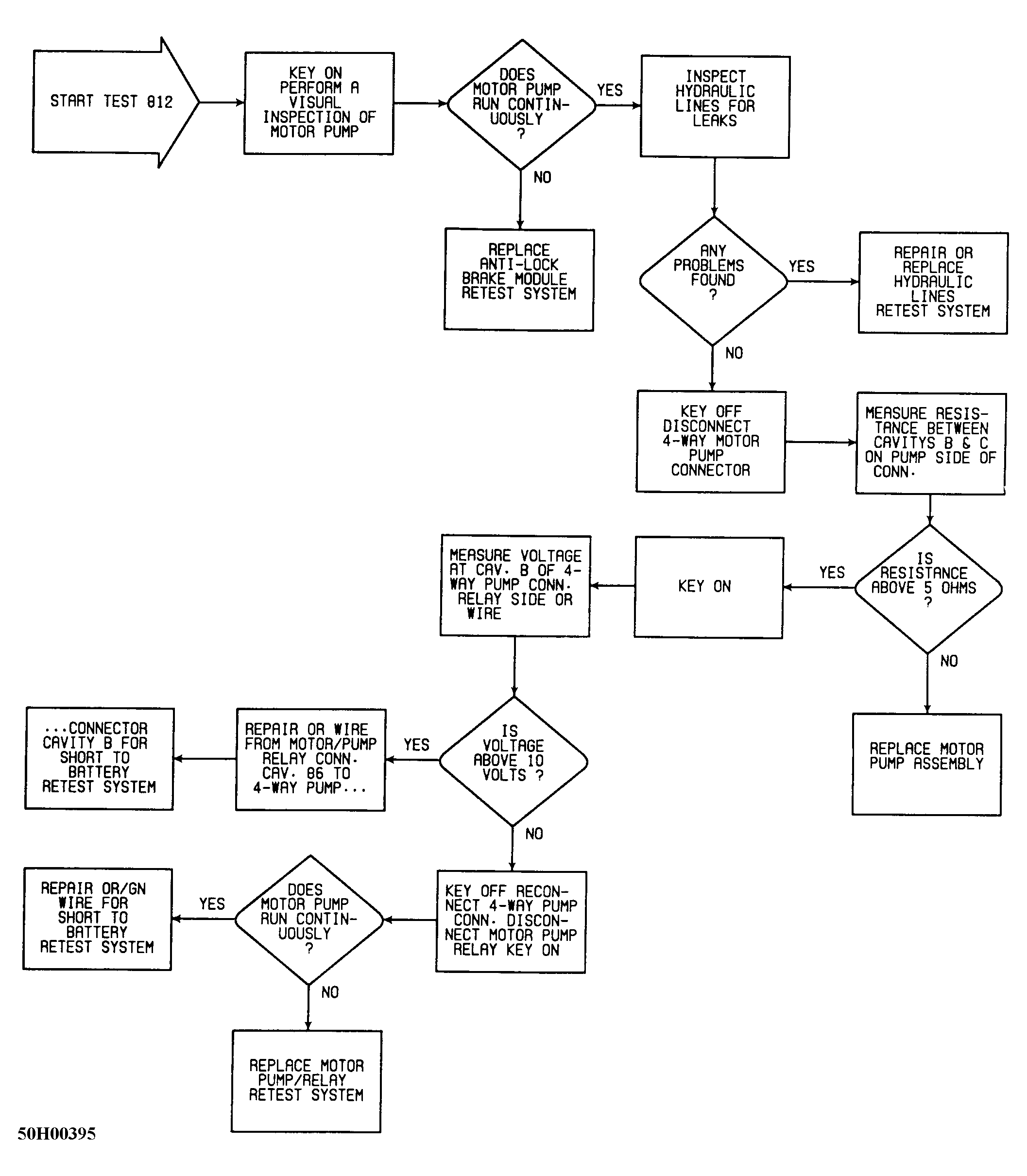

Fig 2: Fault 812: Pump/Motor Fault
Fig 3: Fault 812: Pump/Motor Fault
