NS-8A: Repairing No Response Condition

Fig 1: Test NS-8A Schematic, Repairing No Response Condition
G91J13937

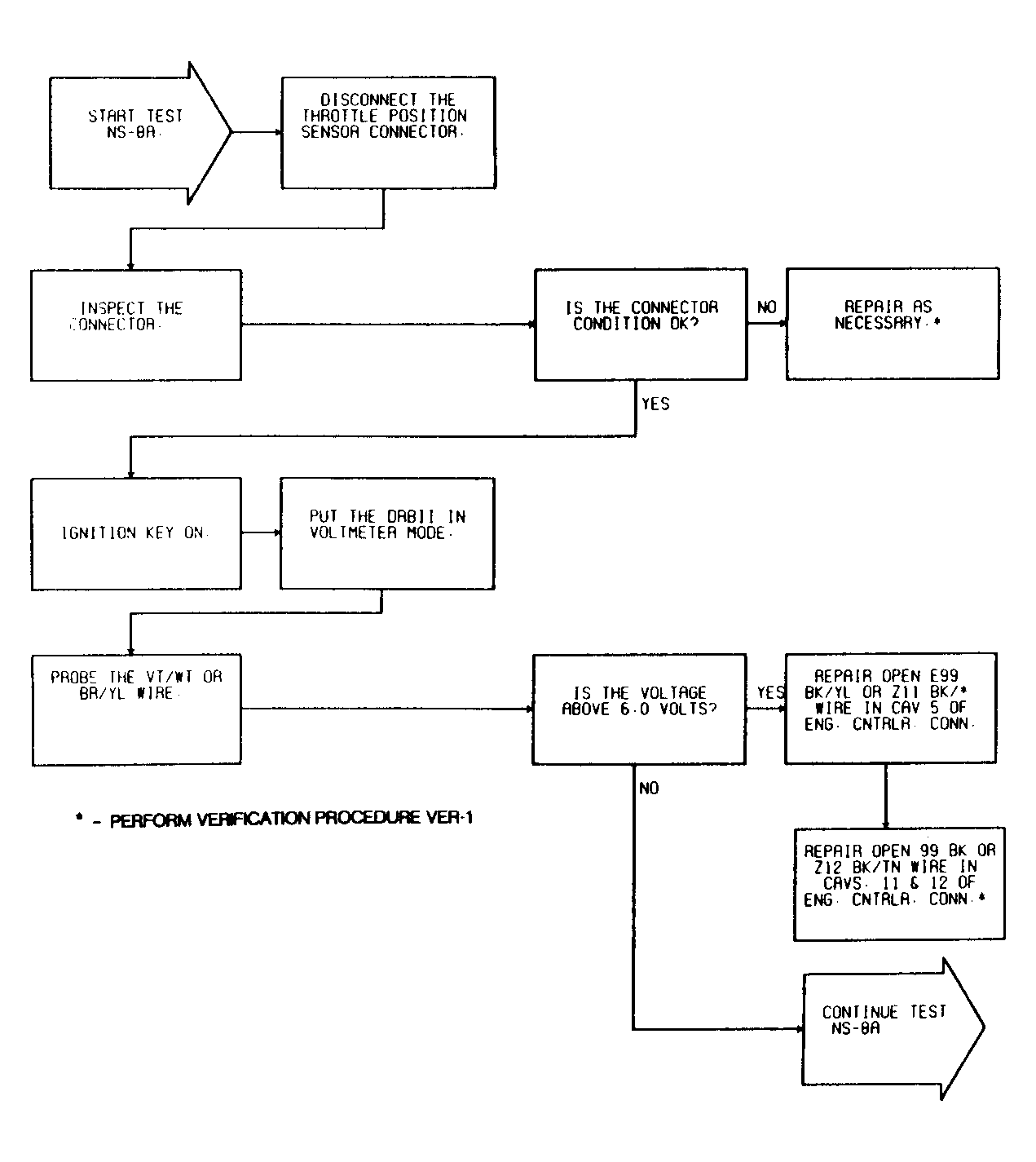

Fig 2: Test NS-8A (1 of 4) Repairing No Response Condition
G91I13829

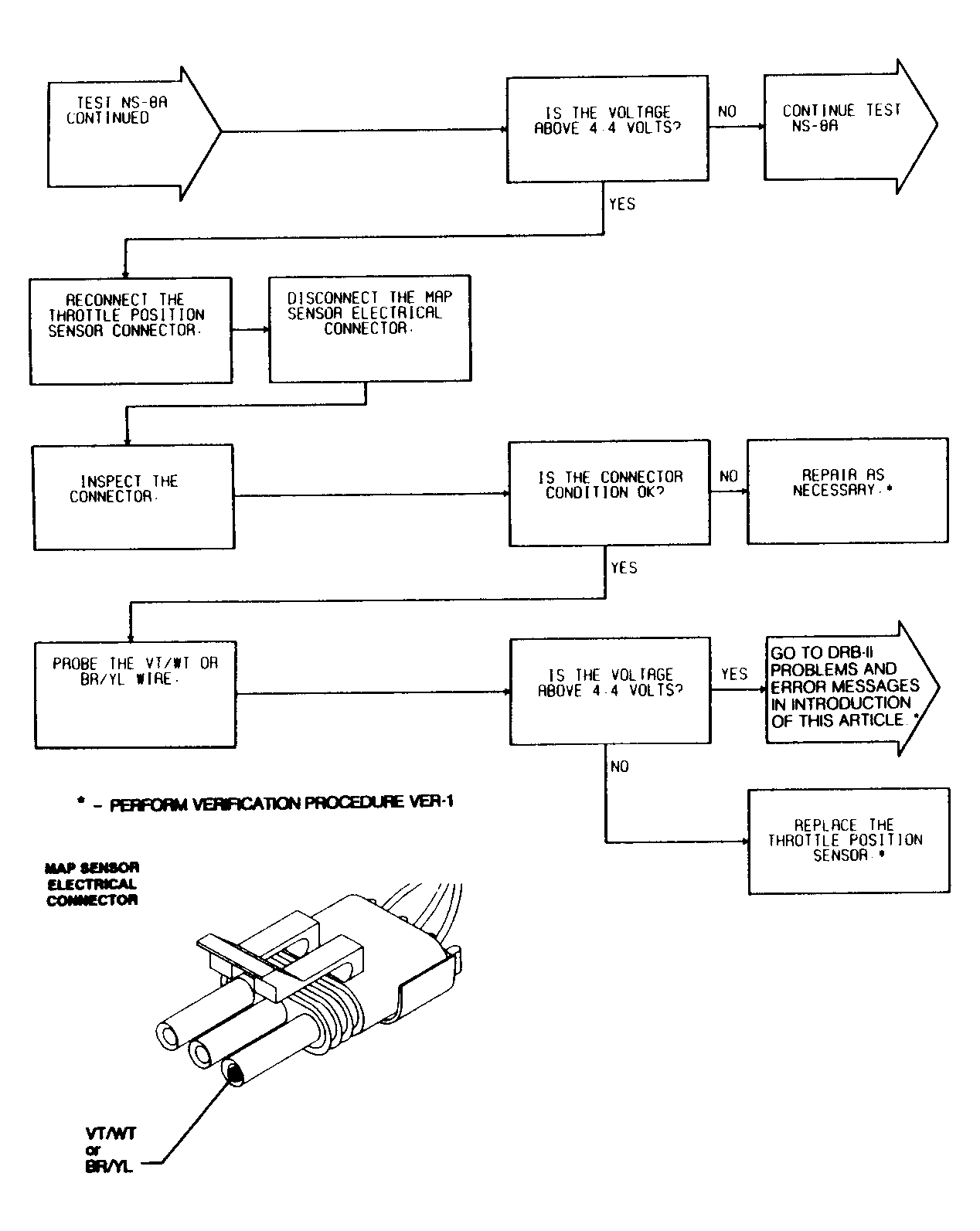

Fig 3: Test NS-8A (2 of 4) Repairing No Response Condition
G91B13830

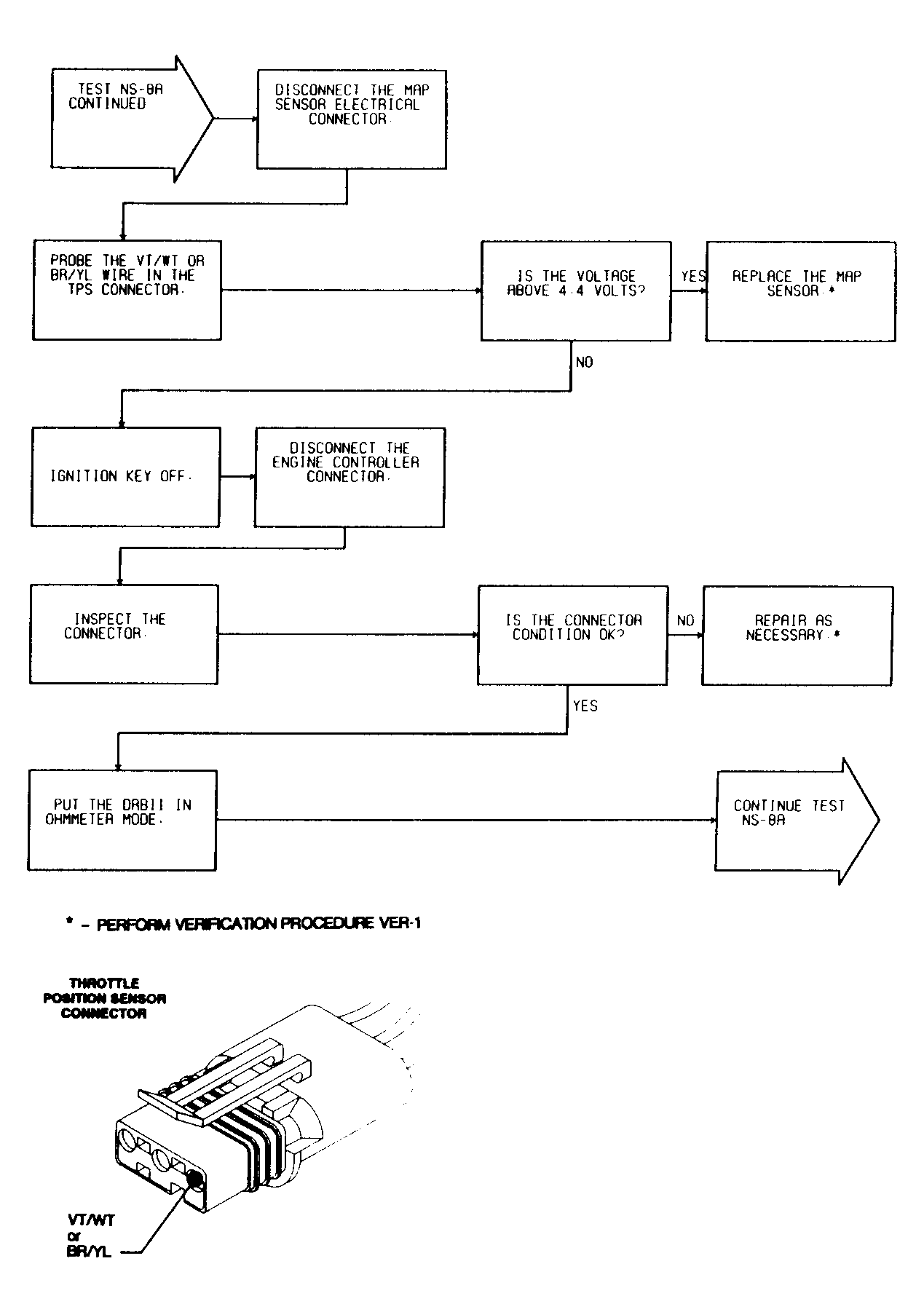

Fig 4: Test NS-8A (3 of 4) Repairing No Response Condition
G91C13831

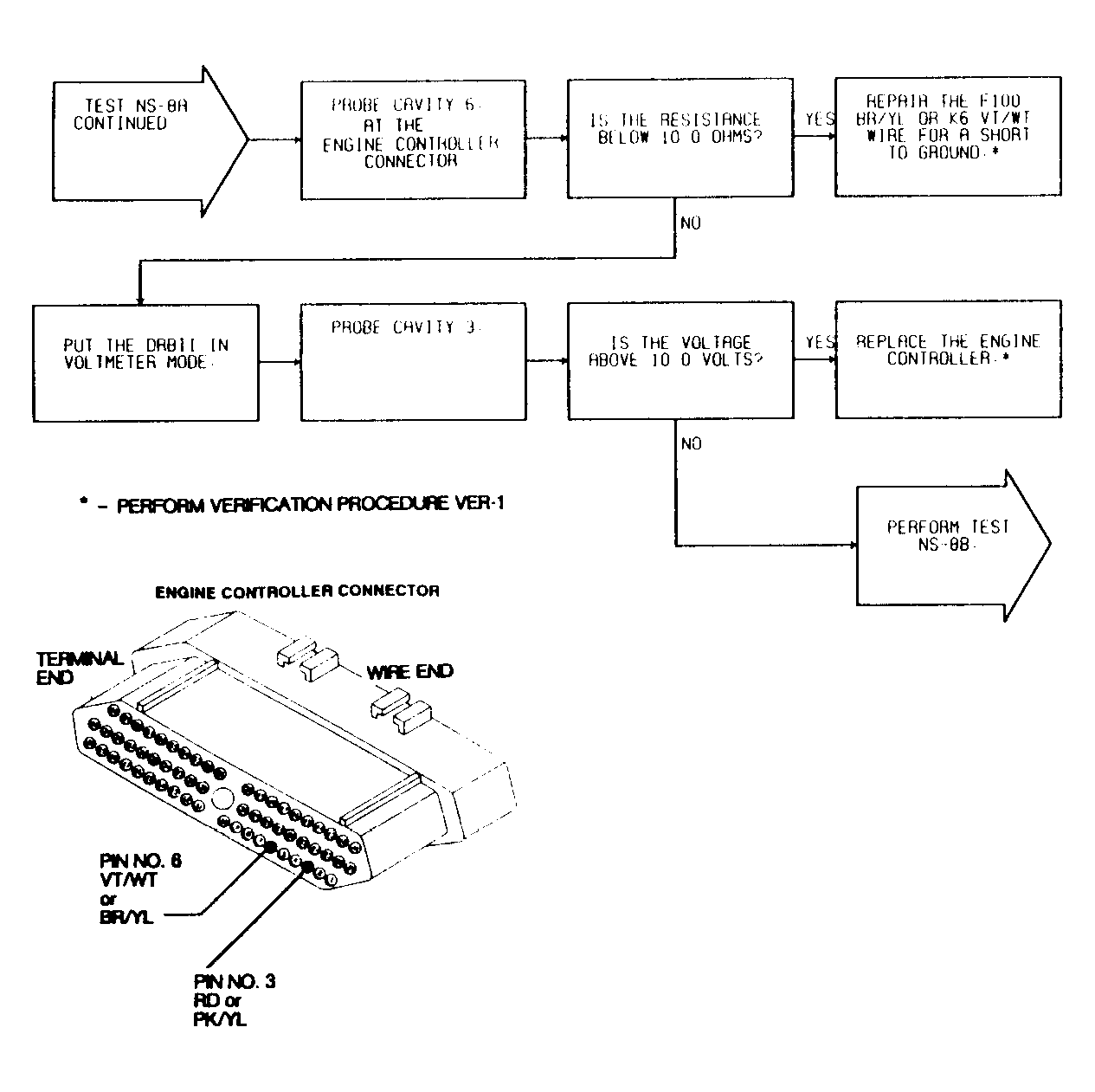

Fig 5: Test NS-8A (4 of 4) Repairing No Response Condition
G91D13832
