NS-7B: Checking Fuel Pump Ground Circuit

Fig 1: Test NS-7B Schematic, Checking Fuel Pump Ground Circuit

G91I13936

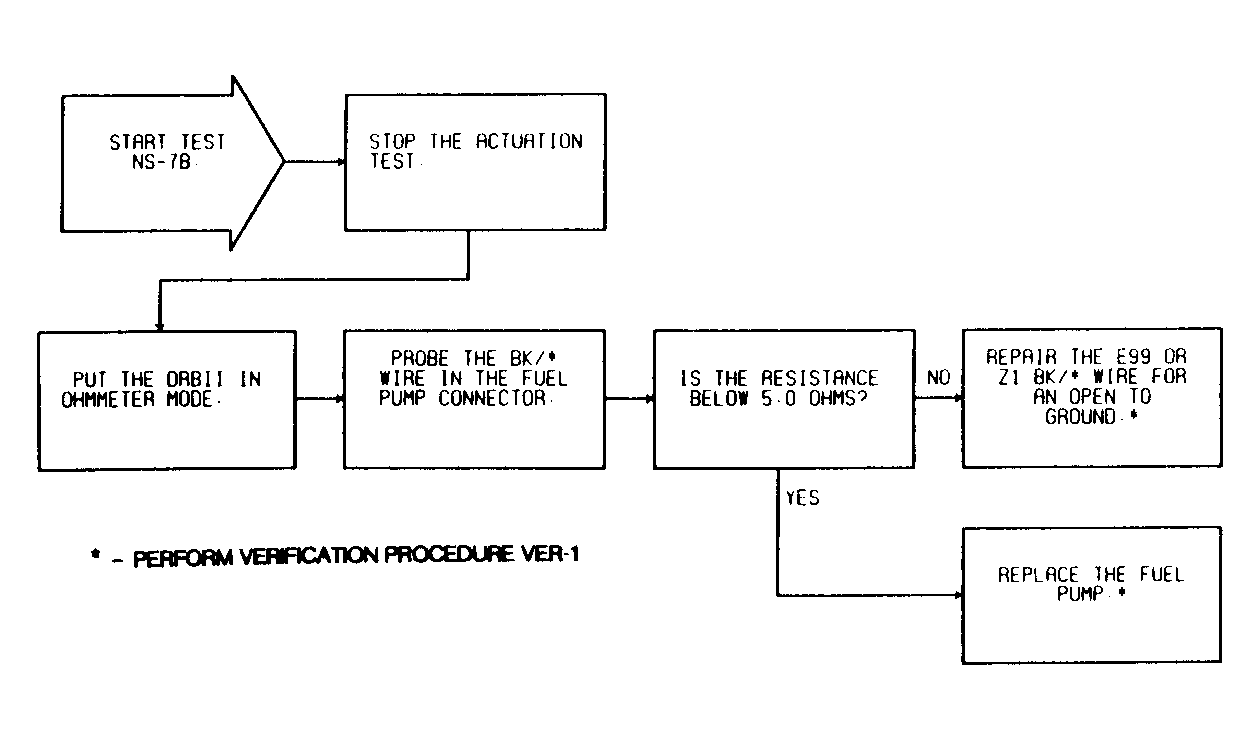

Fig 2: Test NS-7B Checking Fuel Pump Ground Circuit

G91G13827
