NS-12A: Checking Idle Speed Motor Operation

Fig 1: Test NS-12A Schematic, Idle Speed Motor Operation
G91H13943

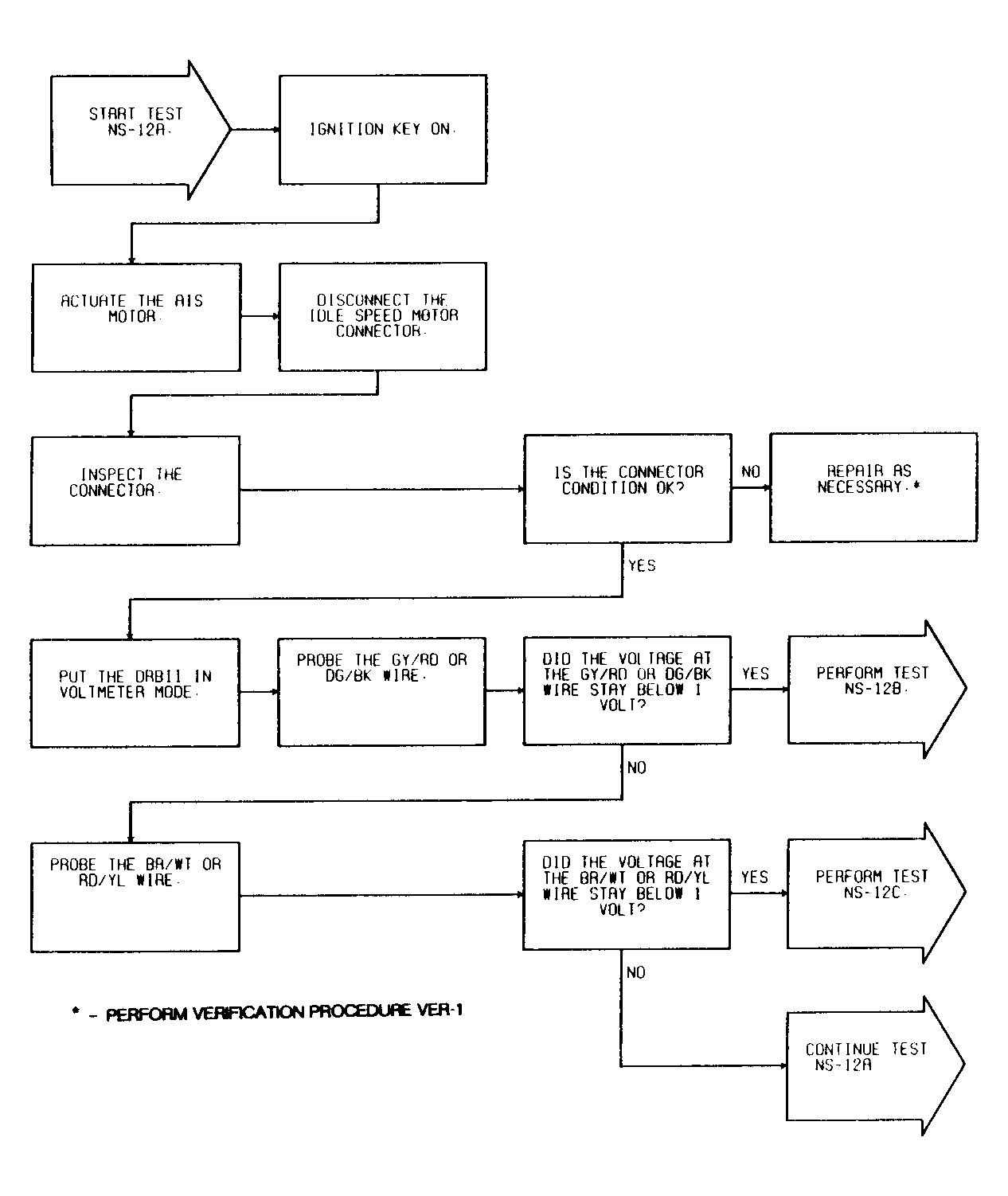

Fig 2: Test NS-12A (1 of 2) Idle Speed Motor Operation
G91G13850

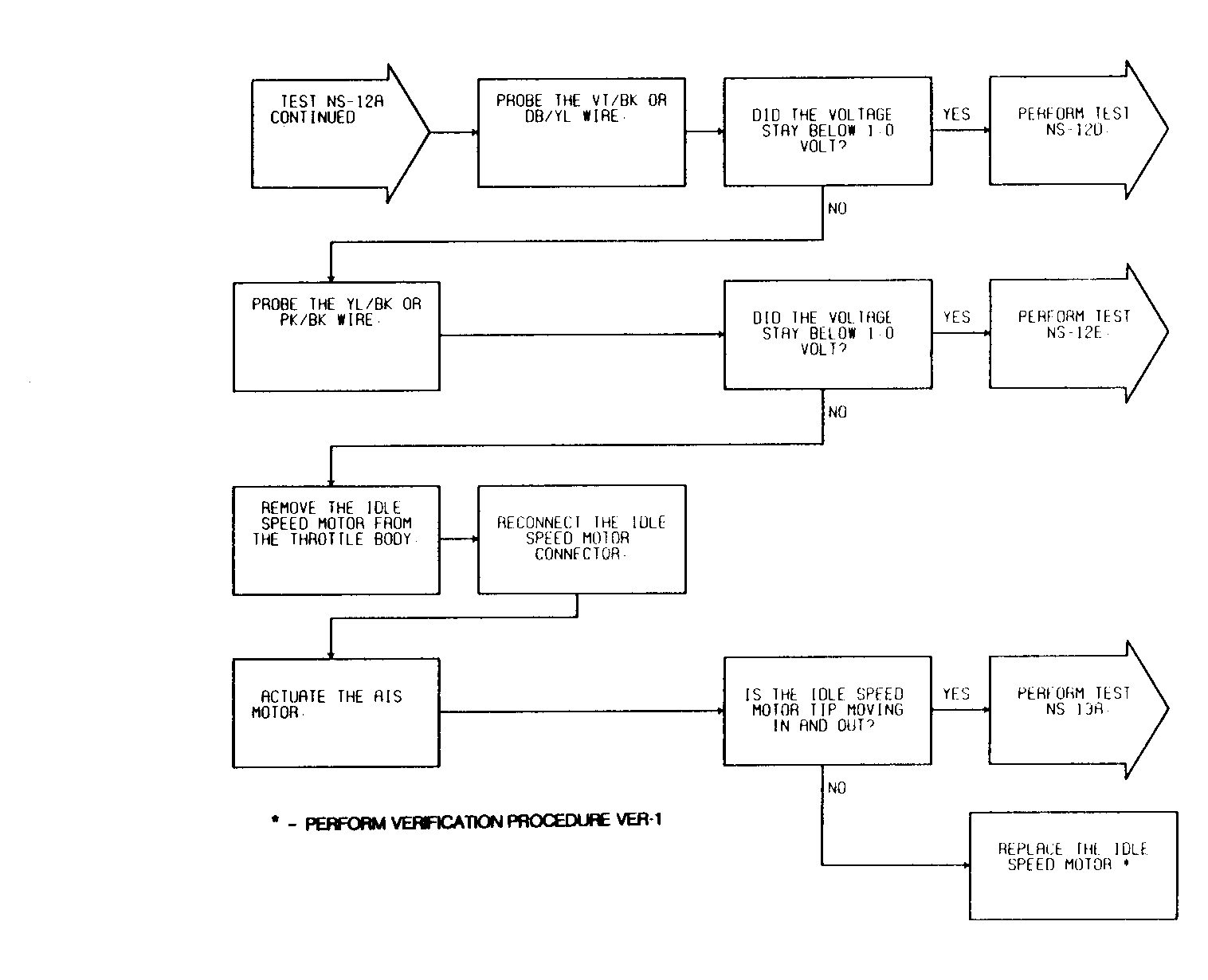

Fig 3: Test NS-12A (2 of 2) Idle Speed Motor Operation
G91H13851
