Dr-6A: Repairing No Vehicle Speed Signal

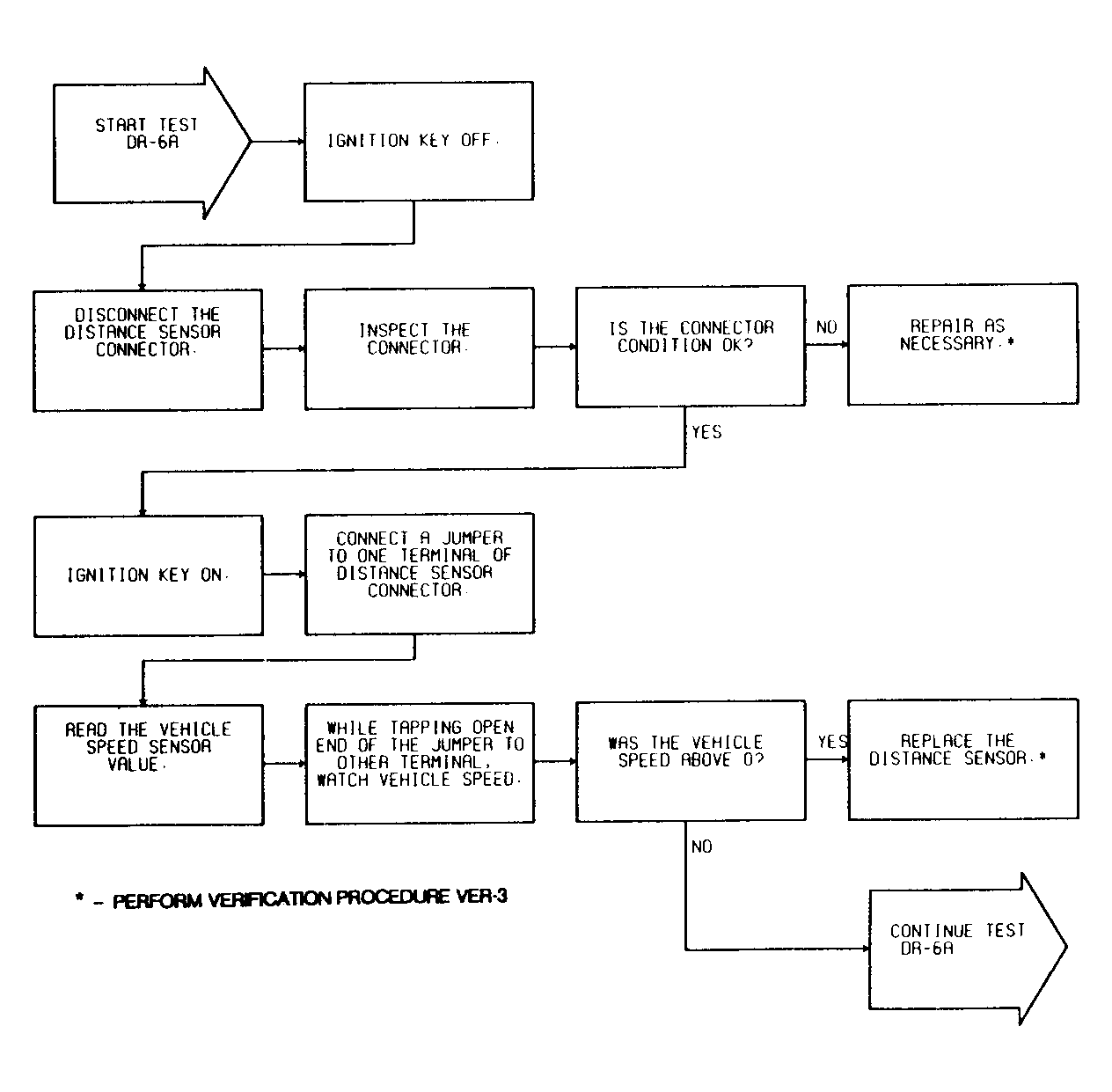

Fig 1: Test DR-6A Schematic, No Vehicle Speed Signal Fault

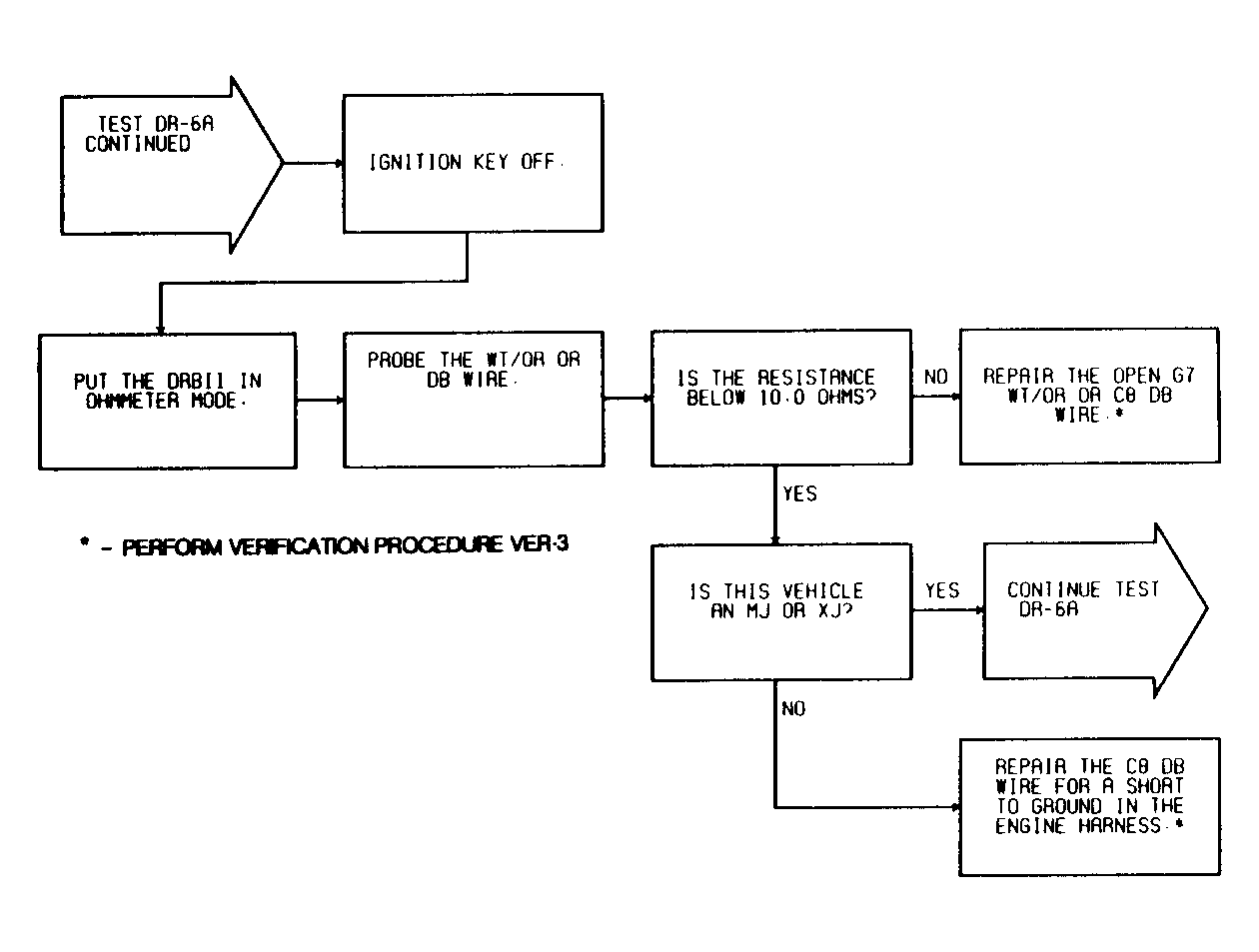

Fig 2: Test DR-6A (1 of 4) No Vehicle Speed Signal Fault

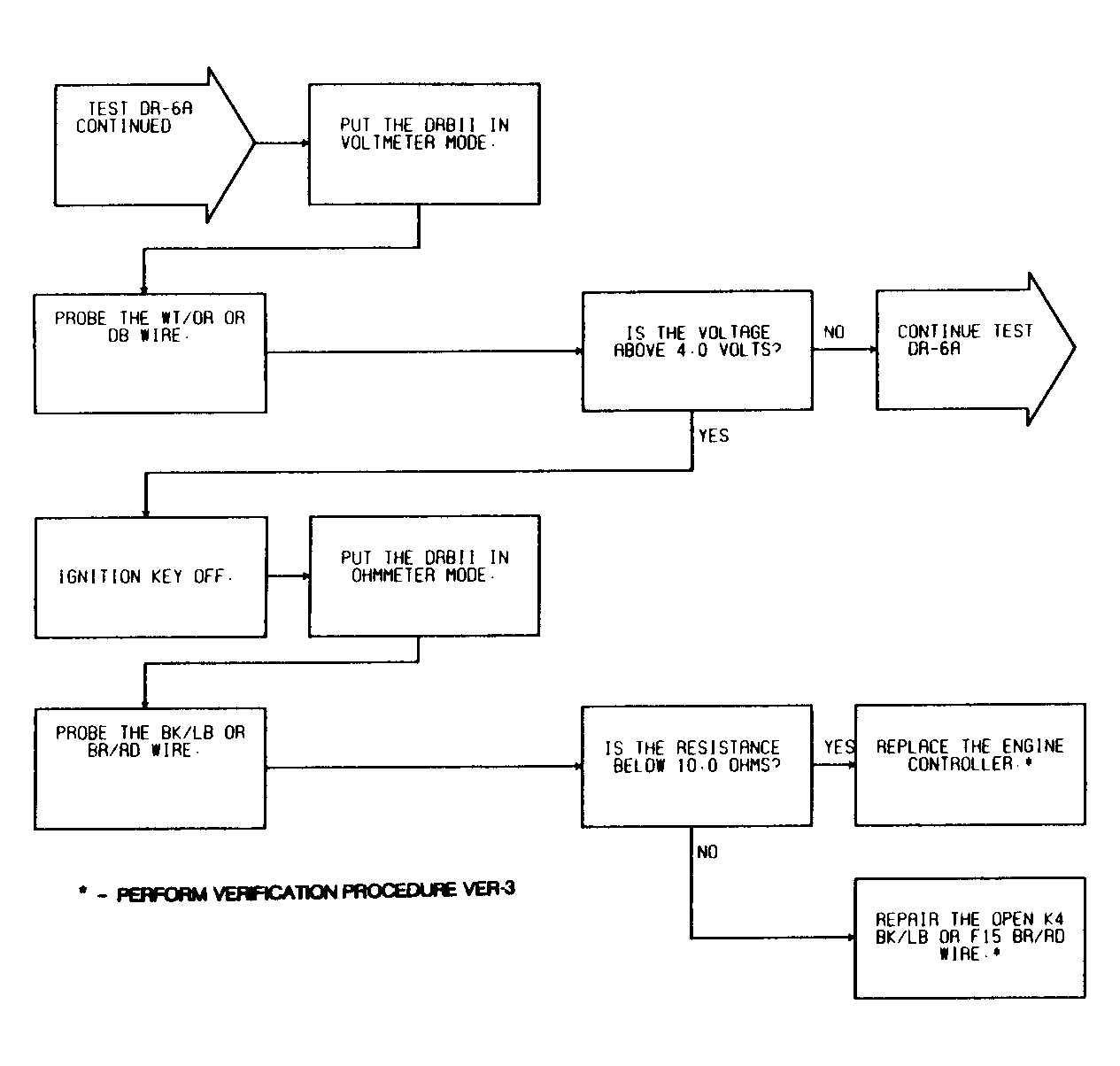

Fig 3: Test DR-6A (2 of 4) No Vehicle Speed Signal Fault

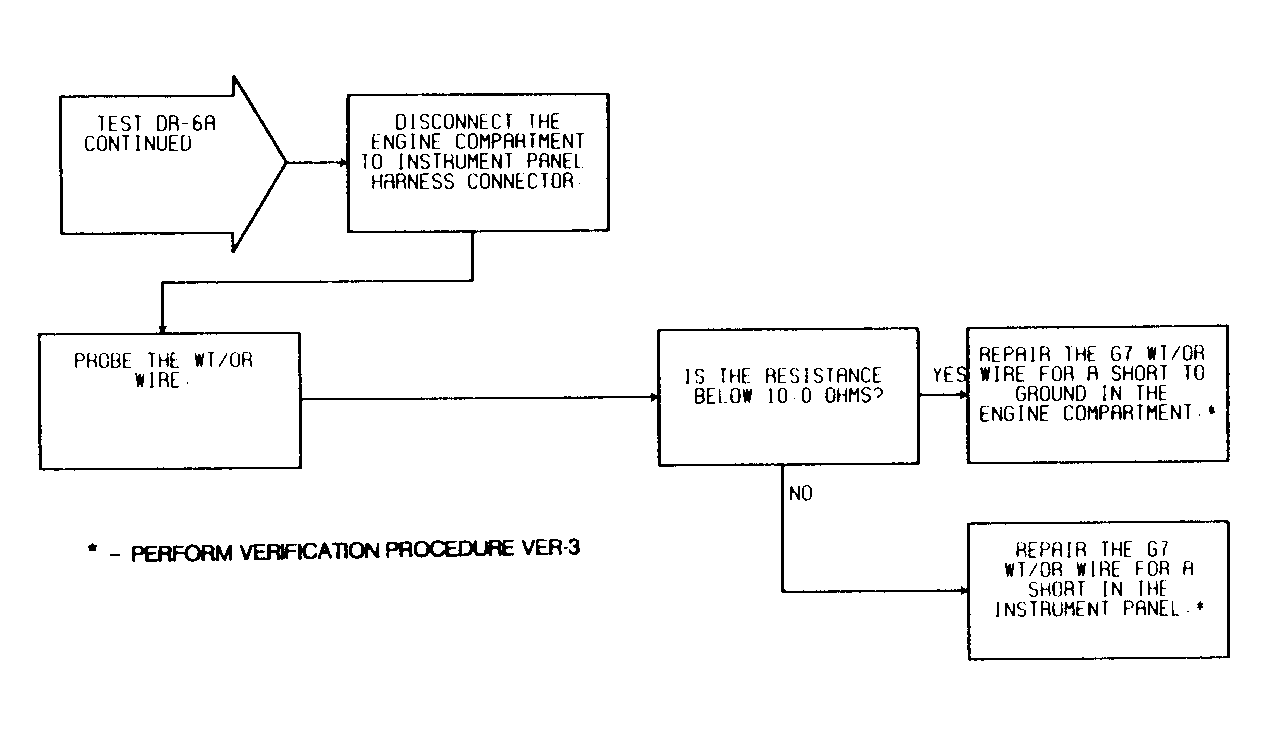

Fig 4: Test DR-6A (3 of 4) No Vehicle Speed Signal Fault

Fig 5: Test DR-6A (4 of 4) No Vehicle Speed Signal Fault
