LEMON Manuals
: Even more car manuals for everyone
Home
>>
Jeep
>>
1991
>>
Cherokee Laredo, 2D Utility, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes
>>
Code Charts
>>

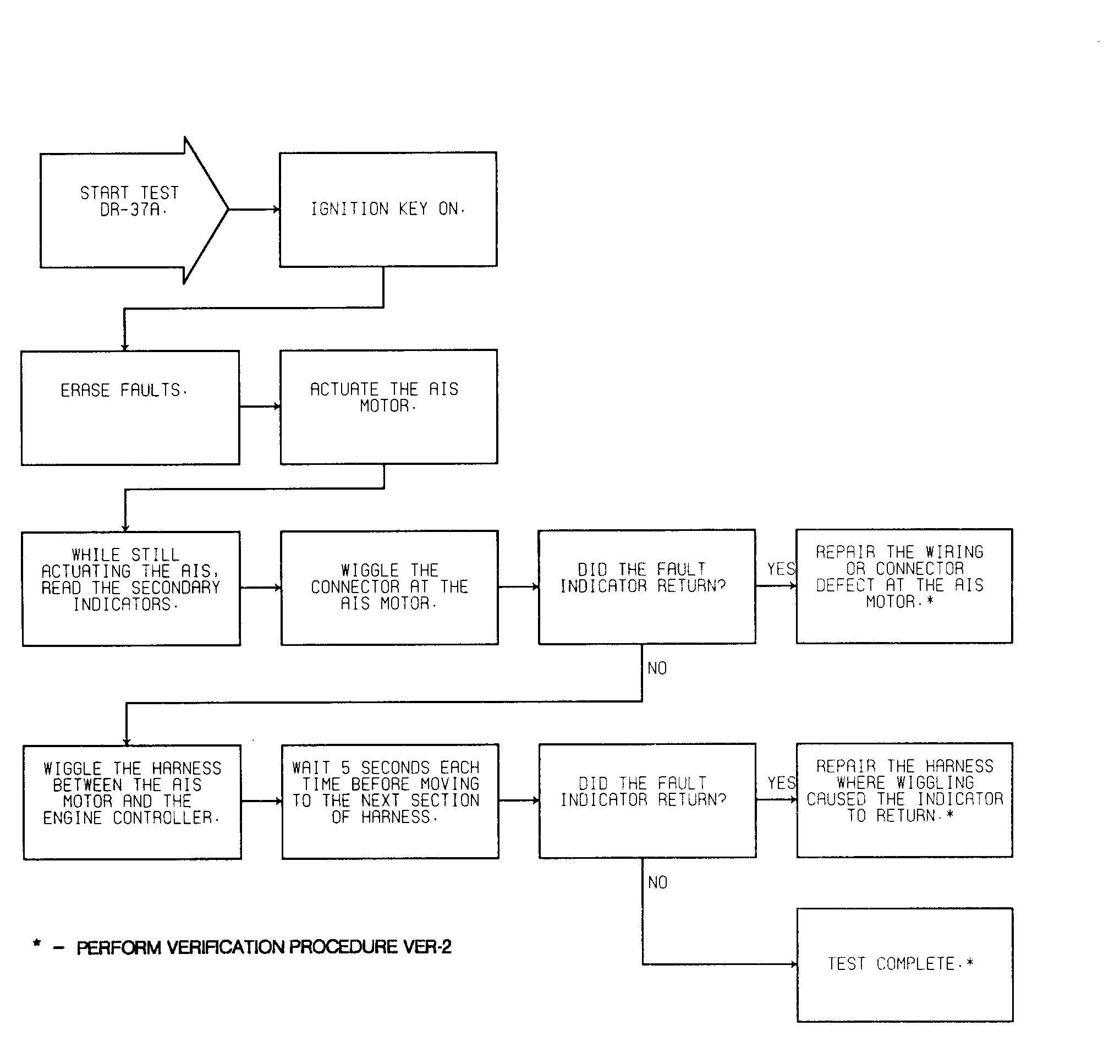

Dr-37A: Intermittent Test For Automatic Idle Speed Motor
Dr-37A: Intermittent Test For Automatic Idle Speed Motor
Fig 1: Test DR-37A Intermittent Test For Automatic Idle Speed Motor

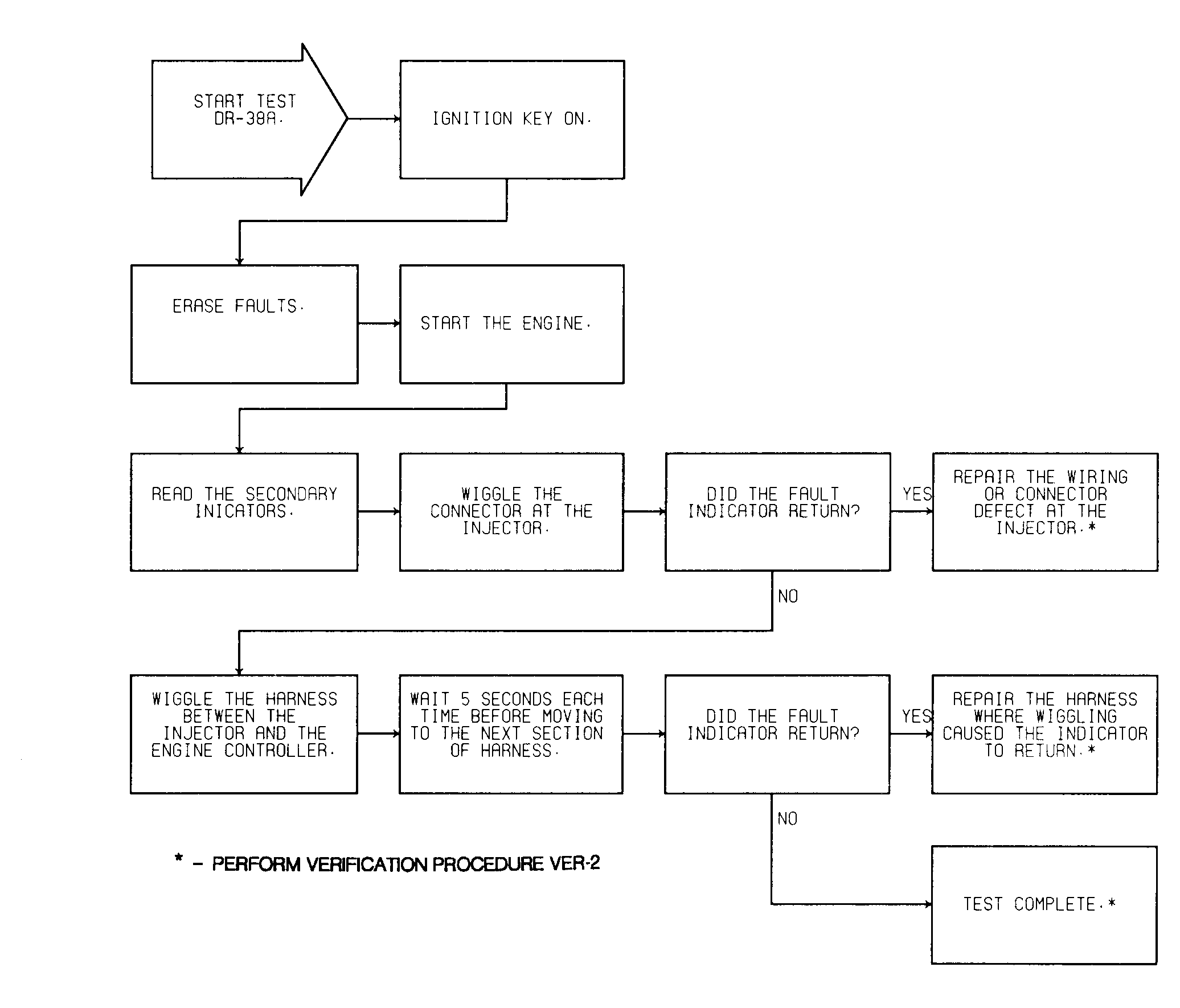

DR-38A: INTERMITTENT TEST FOR FUEL INJECTORS
Fig 2: Test DR-38A Intermittent Test For Fuel Injectors
