Dr-31A: Checking Idle Speed Motor Operation

Fig 1: Test DR-31A Schematic, Checking Idle Speed Motor Operation

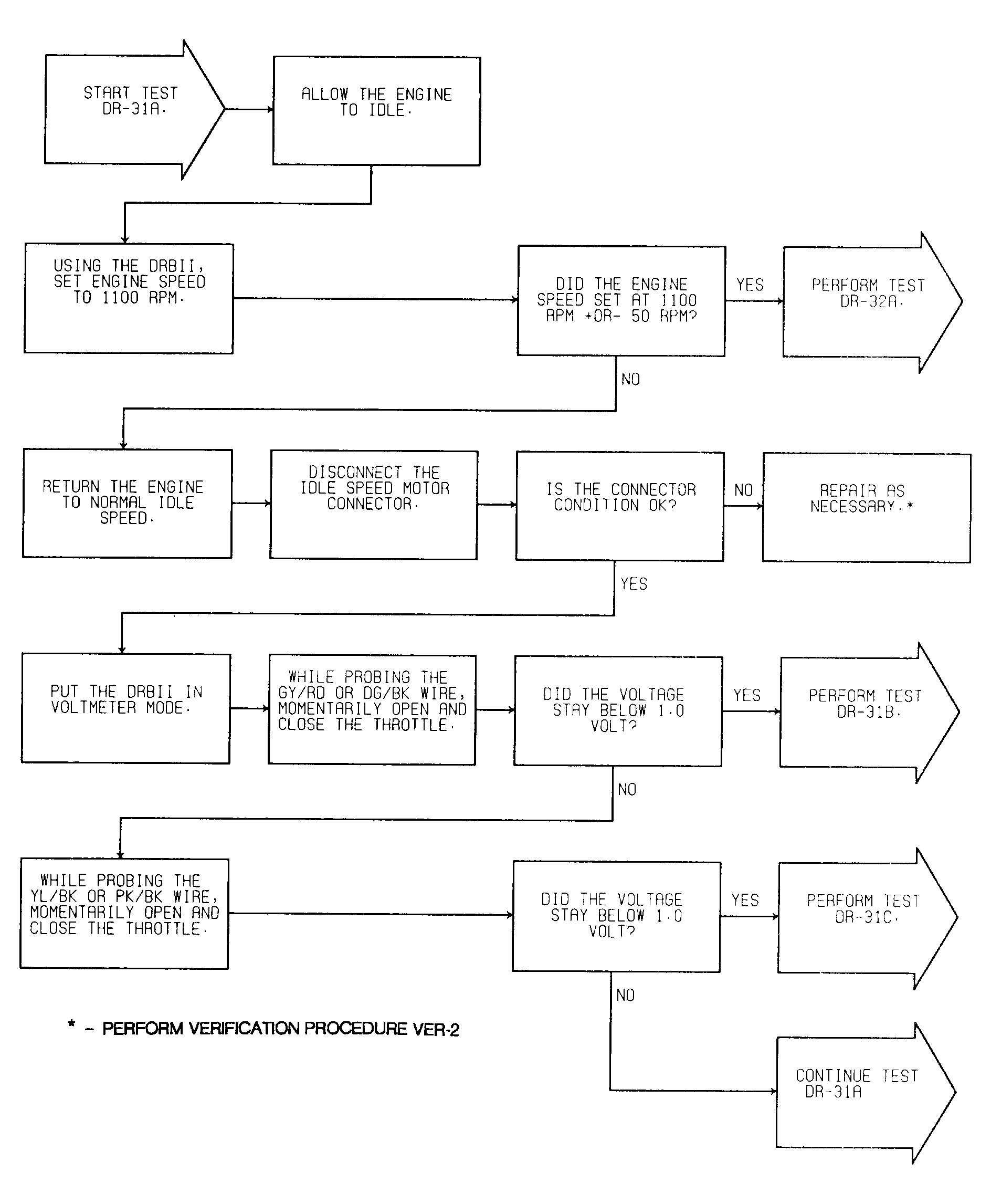

Fig 2: Test DR-31A (1 of 2) Checking Idle Speed Motor Operation

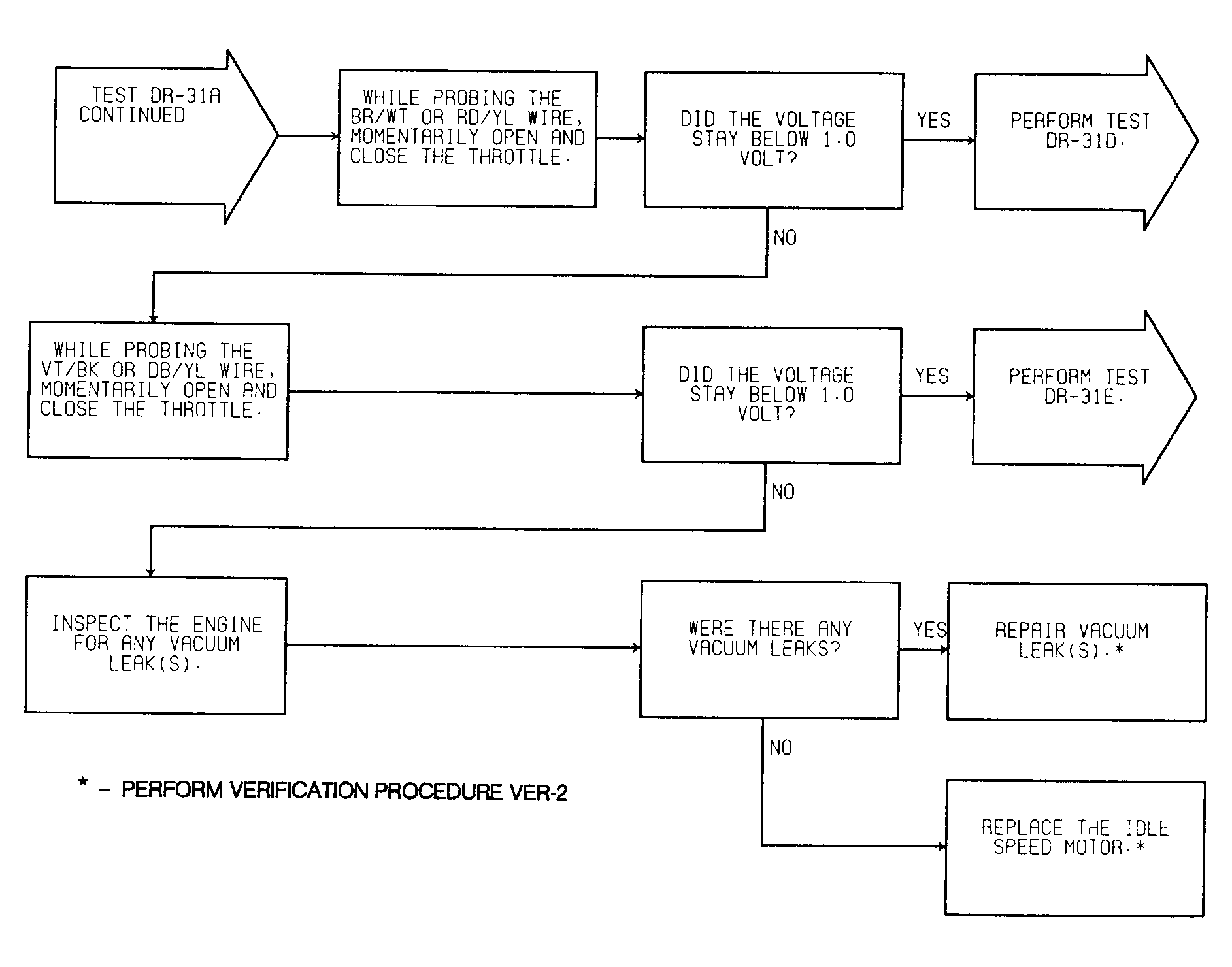

Fig 3: Test DR-31A (2 of 2) Checking Idle Speed Motor Operation
