Dr-30B: Checking Oxygen Sensor Locked Lean

Fig 1: Test DR-30B Schematic, Checking Oxygen Sensor Locked Lean

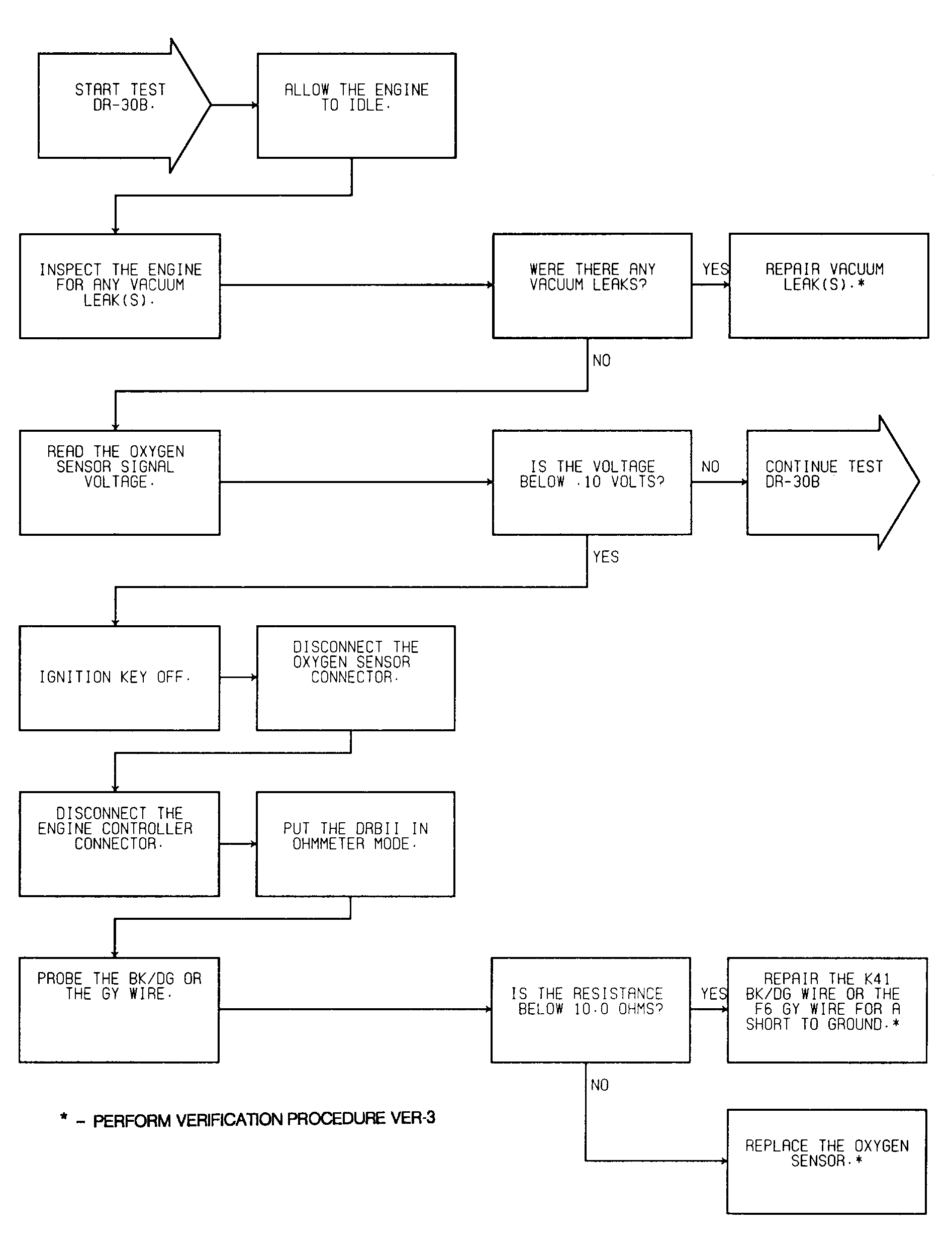

Fig 2: Test DR-30B (1 of 2) Checking Oxygen Sensor Locked Lean

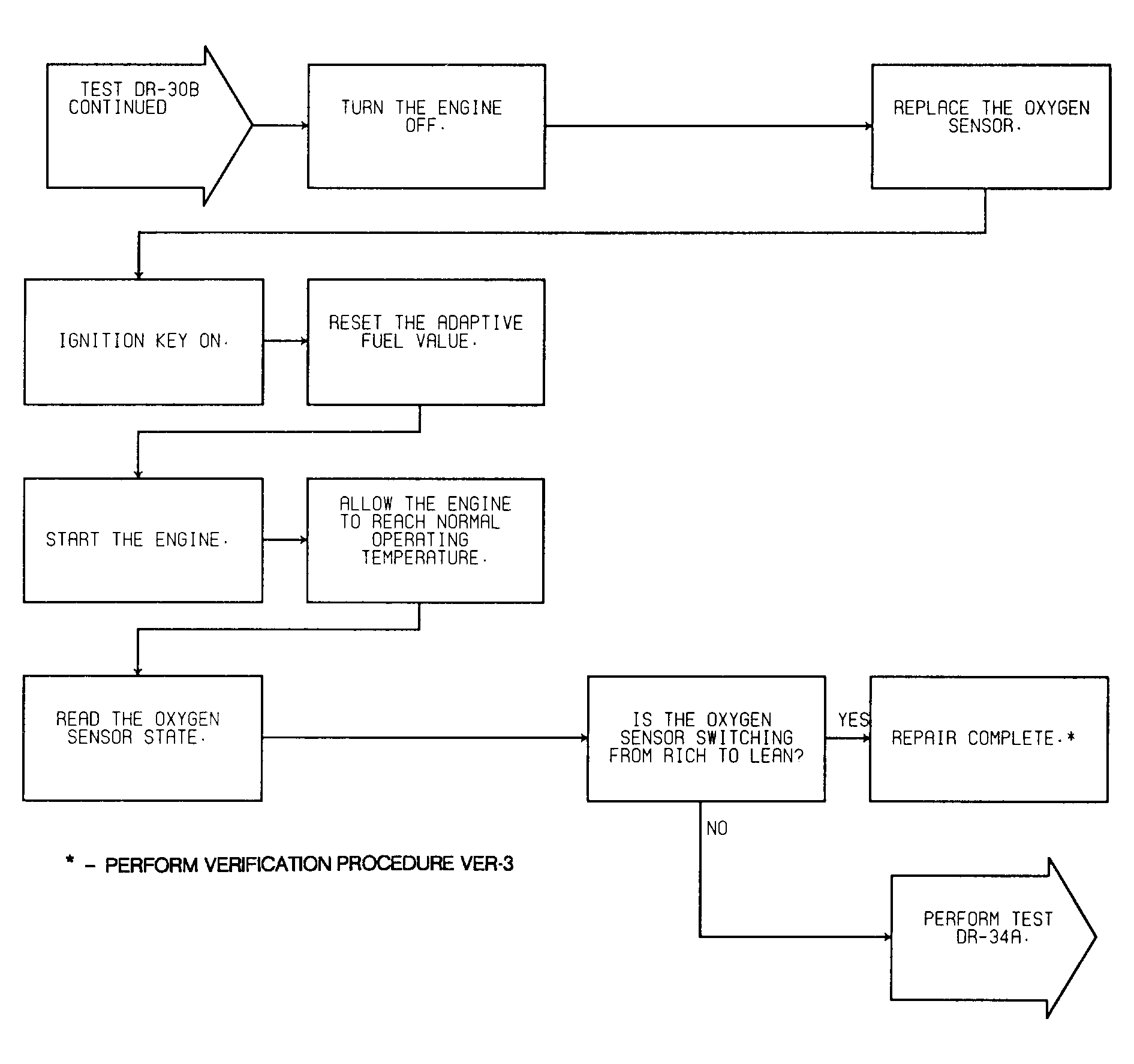

Fig 3: Test DR-30B (2 of 2) Checking Oxygen Sensor Locked Lean
