Dr-27B: Checking Fuel Pressure
Dr-27B: Checking Fuel Pressure

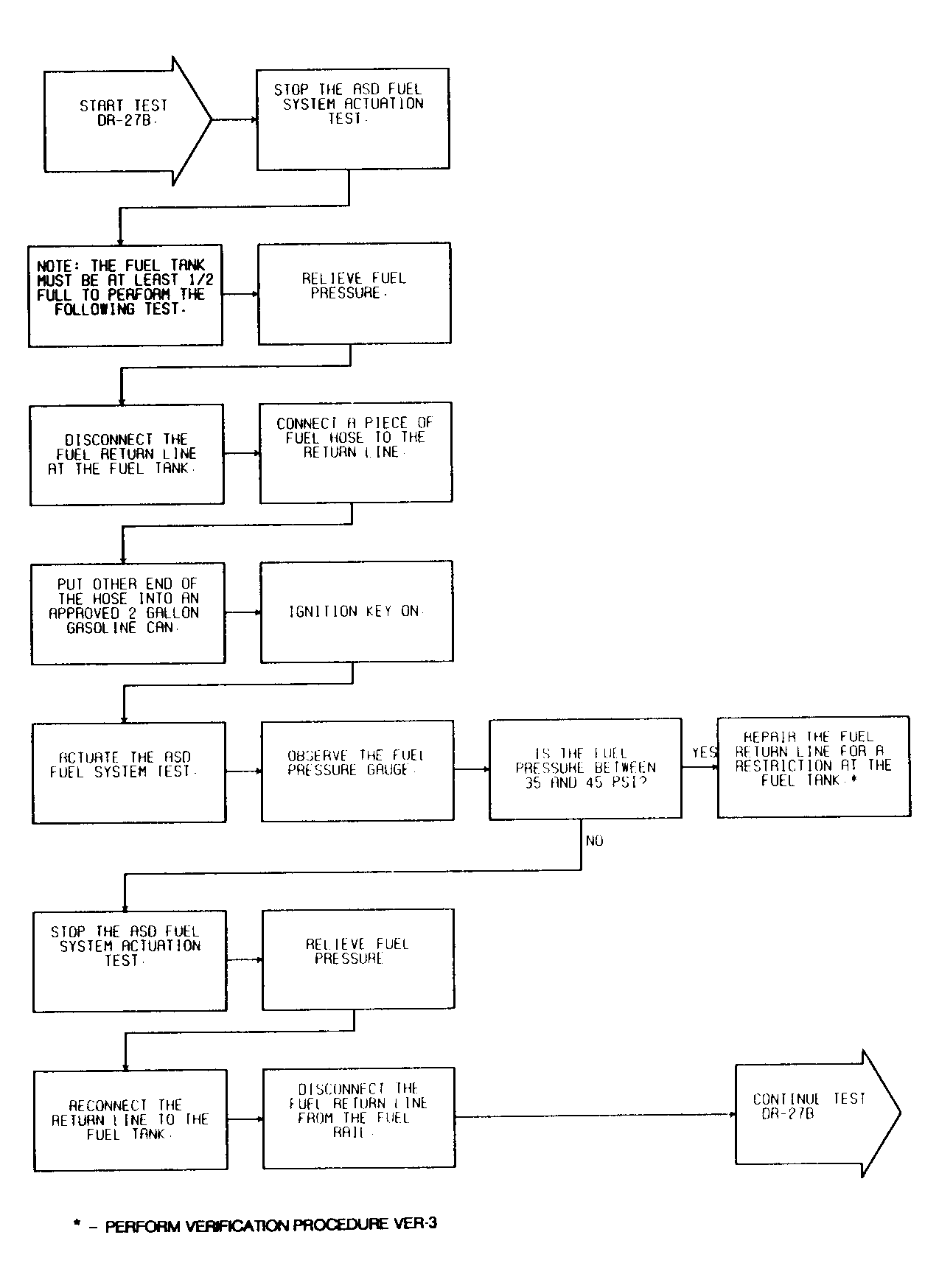

Fig 1: Test DR-27B (1 of 2) Checking Fuel Pressure

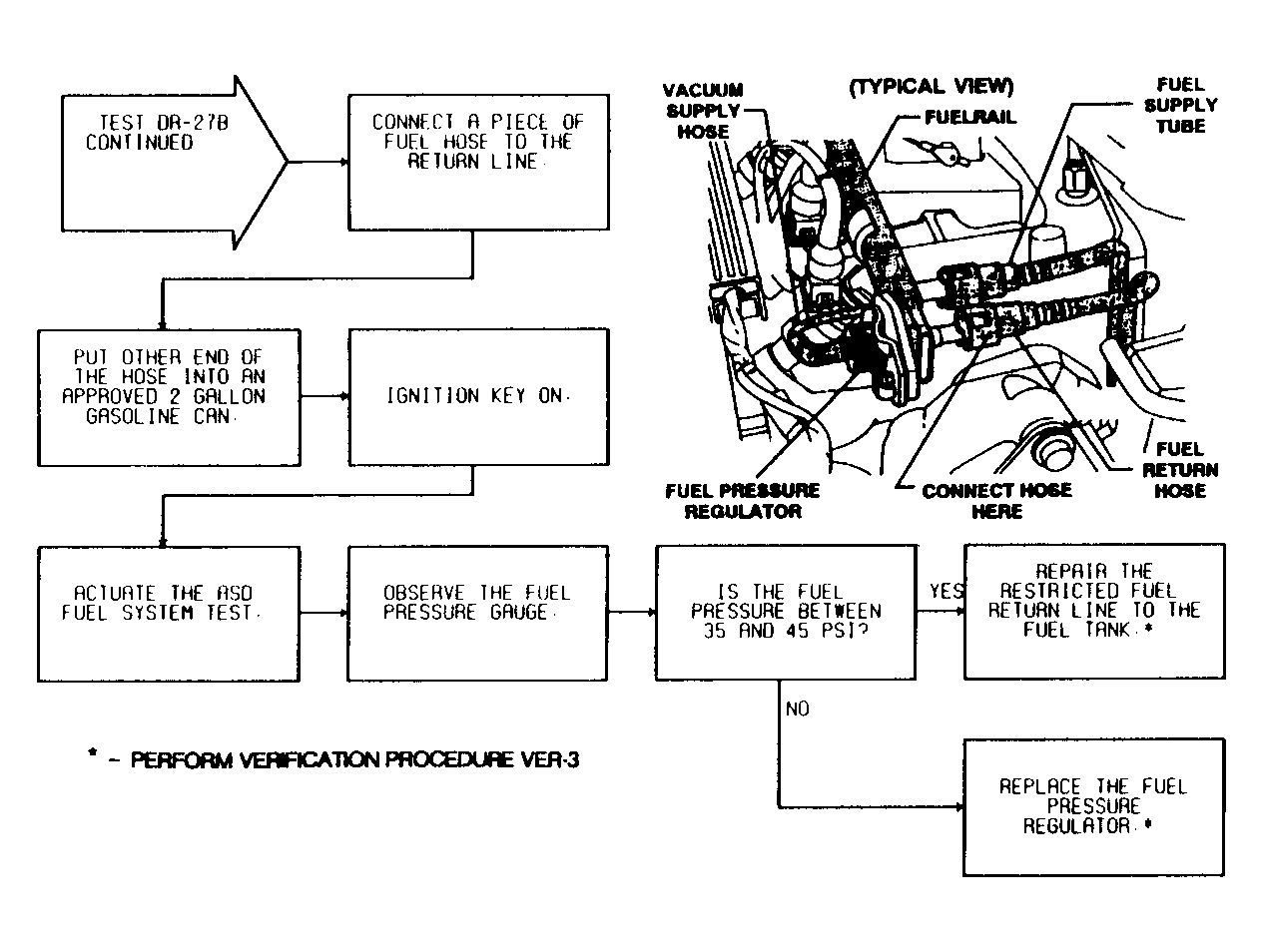

Fig 2: Test DR-27B (2 of 2) Checking Fuel Pressure
