Dr-27A: Checking Fuel Pressure

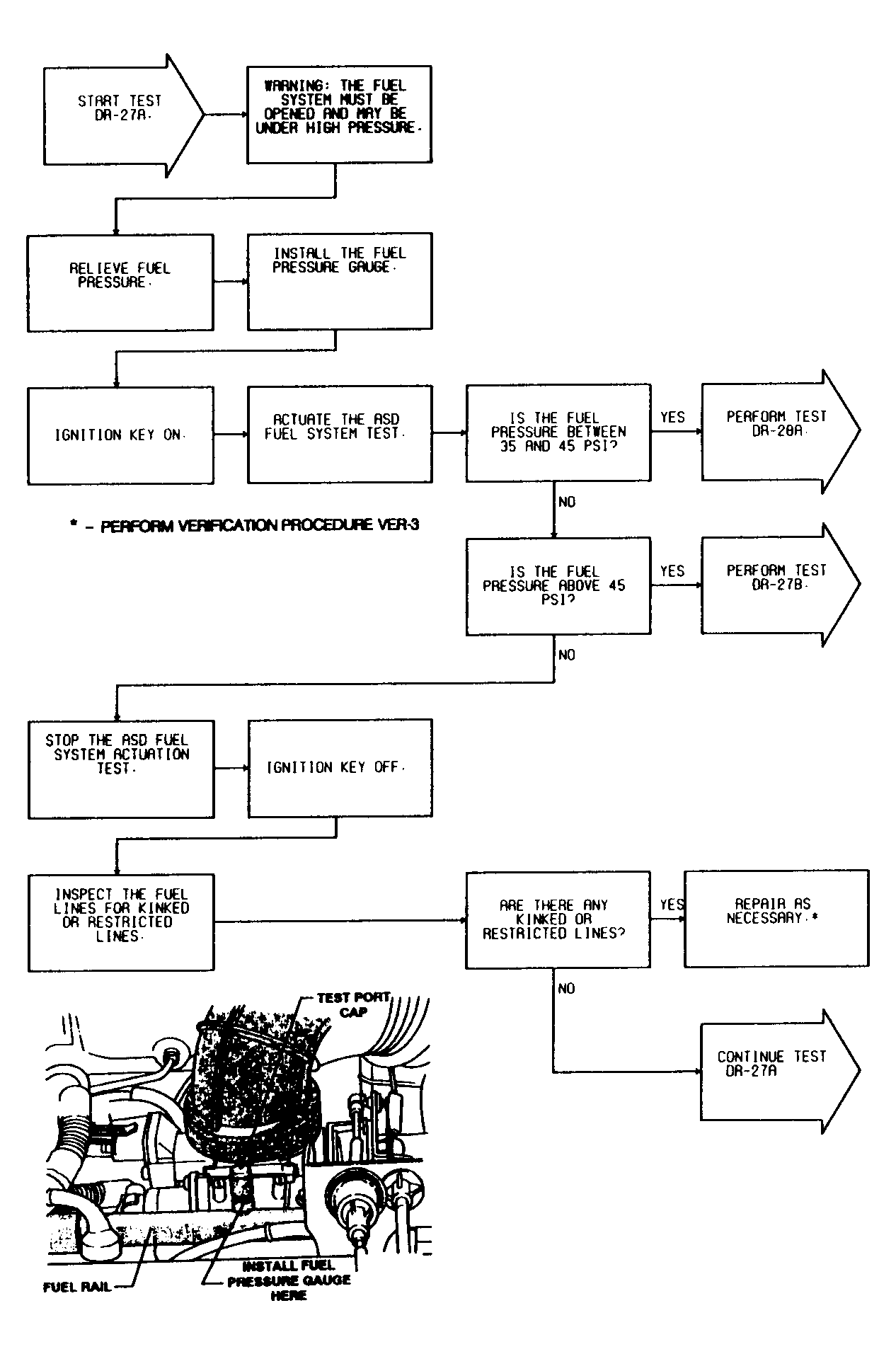

Fig 1: Test DR-27A (1 of 2) Checking Fuel Pressure

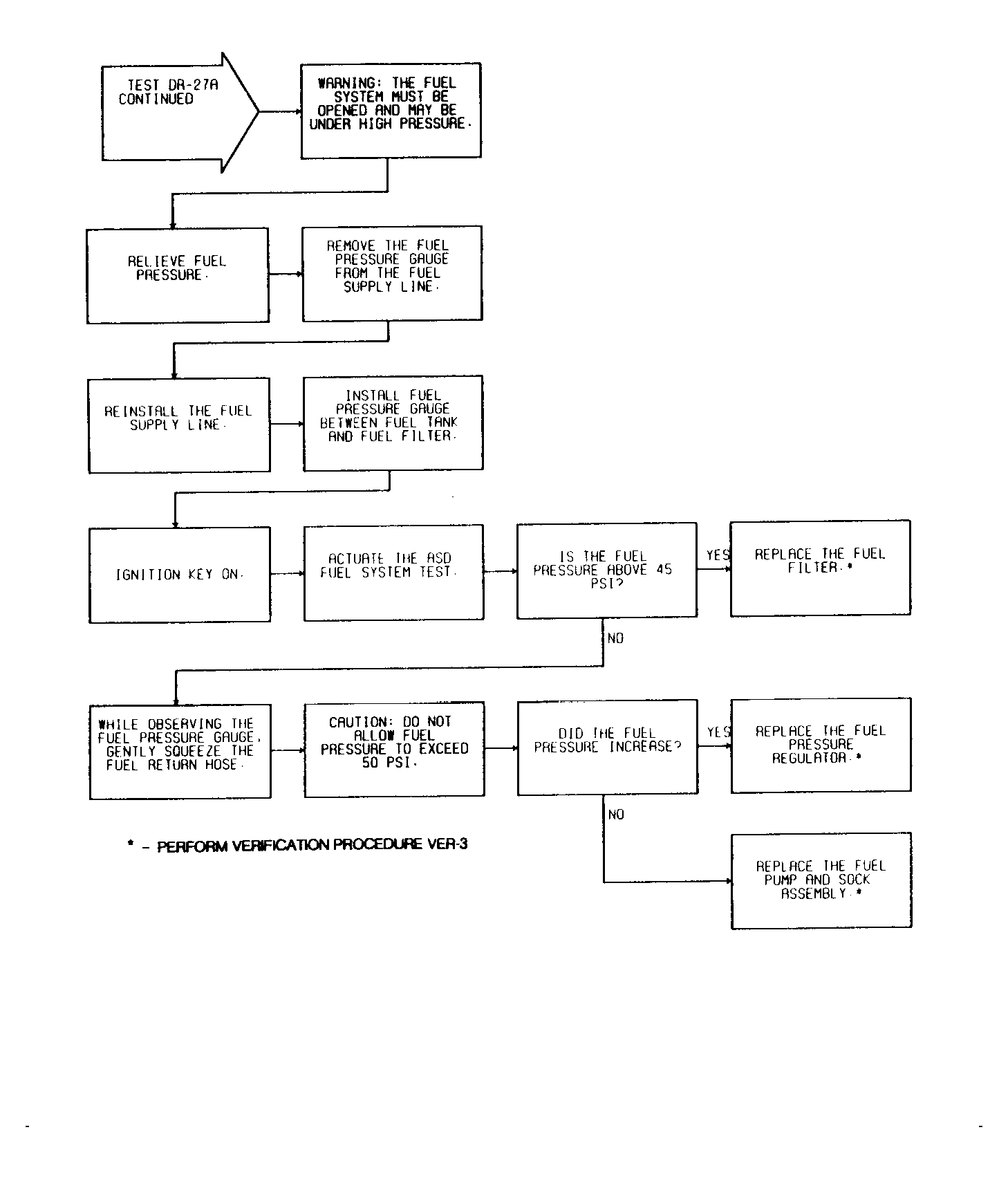

Fig 2: Test DR-27A (2 of 2) Checking Fuel Pressure
