Dr-26A: Checking Secondary Ignition & Timing

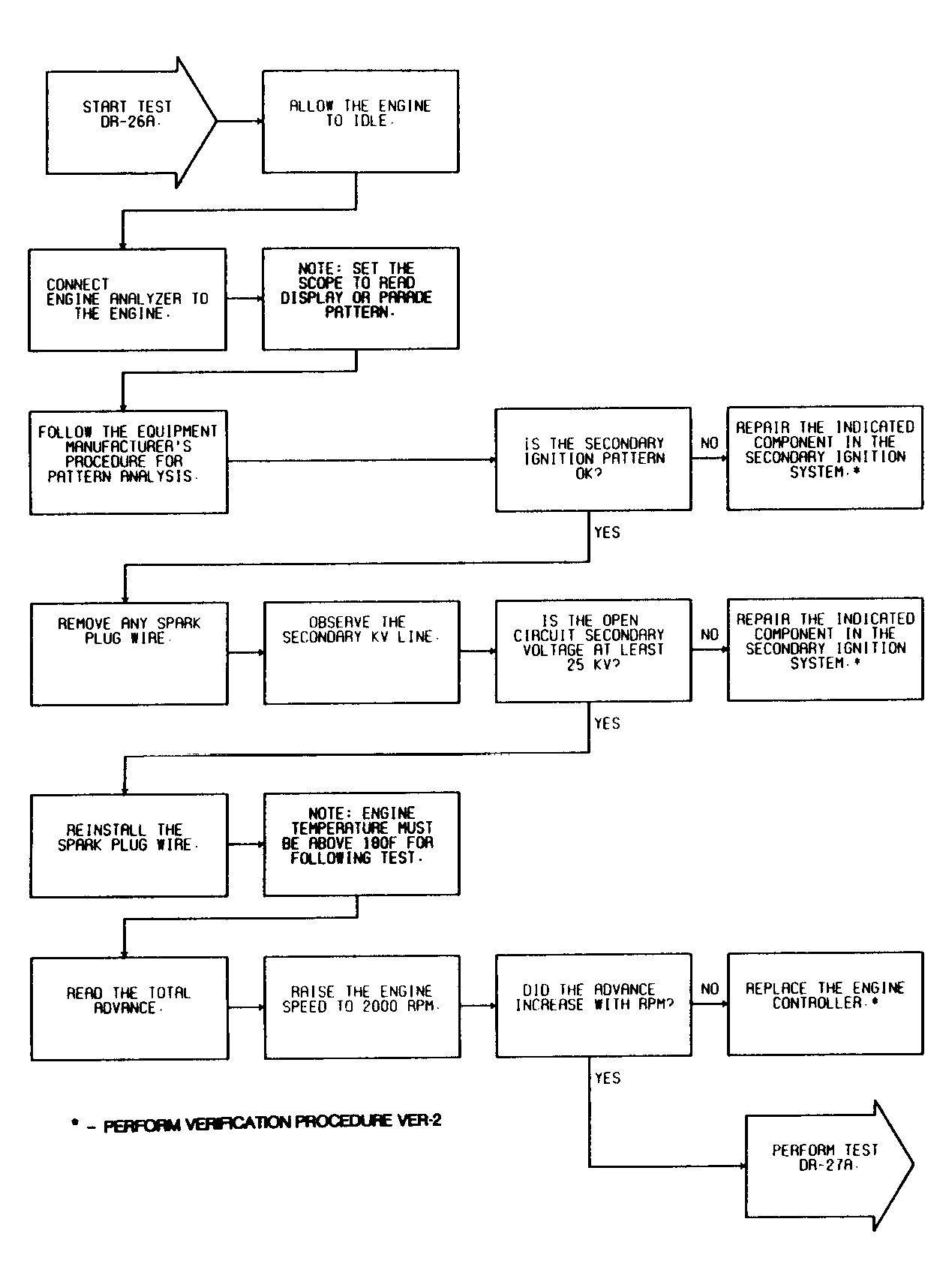

Fig 1: Test DR-26A Checking Secondary Ignition & Timing

G91I13910
