Dr-15A: Repairing Automatic Idle Speed Motor Circuits

Fig 1: Test DR-15A Schematic, Automatic Idle Speed Motor Circuits

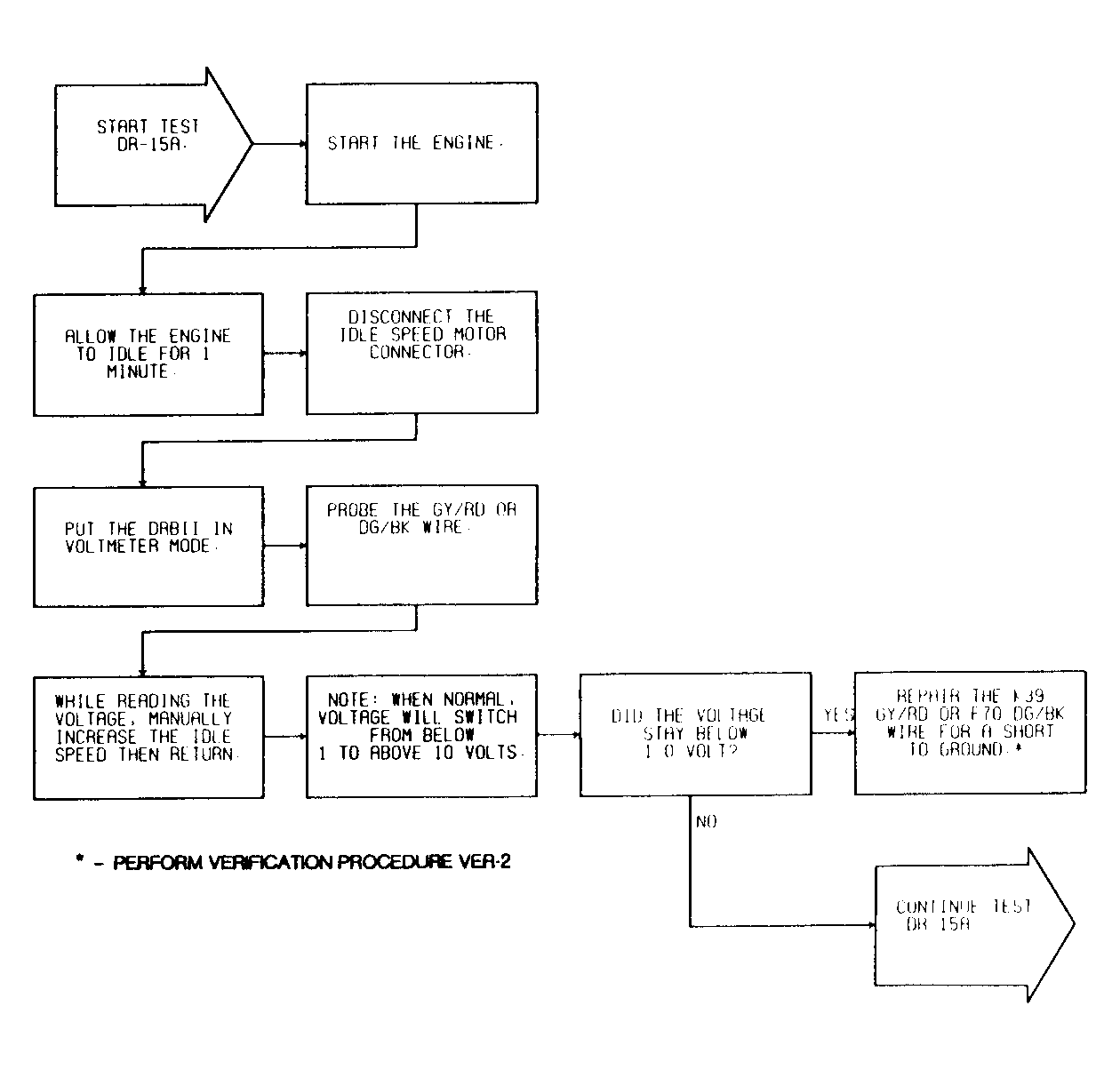

Fig 2: Test DR-15A (1 of 5) Automatic Idle Speed Motor Circuits

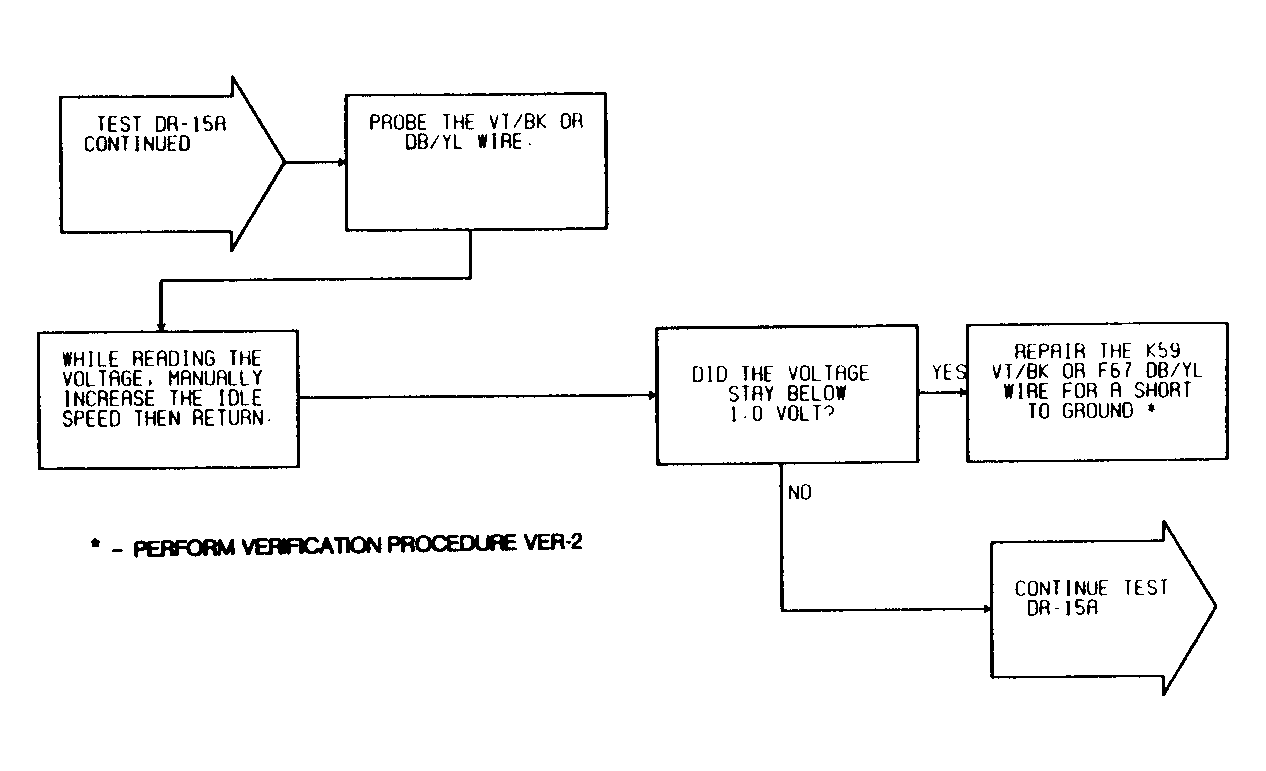

Fig 3: Test DR-15A (2 of 5) Automatic Idle Speed Motor Circuits

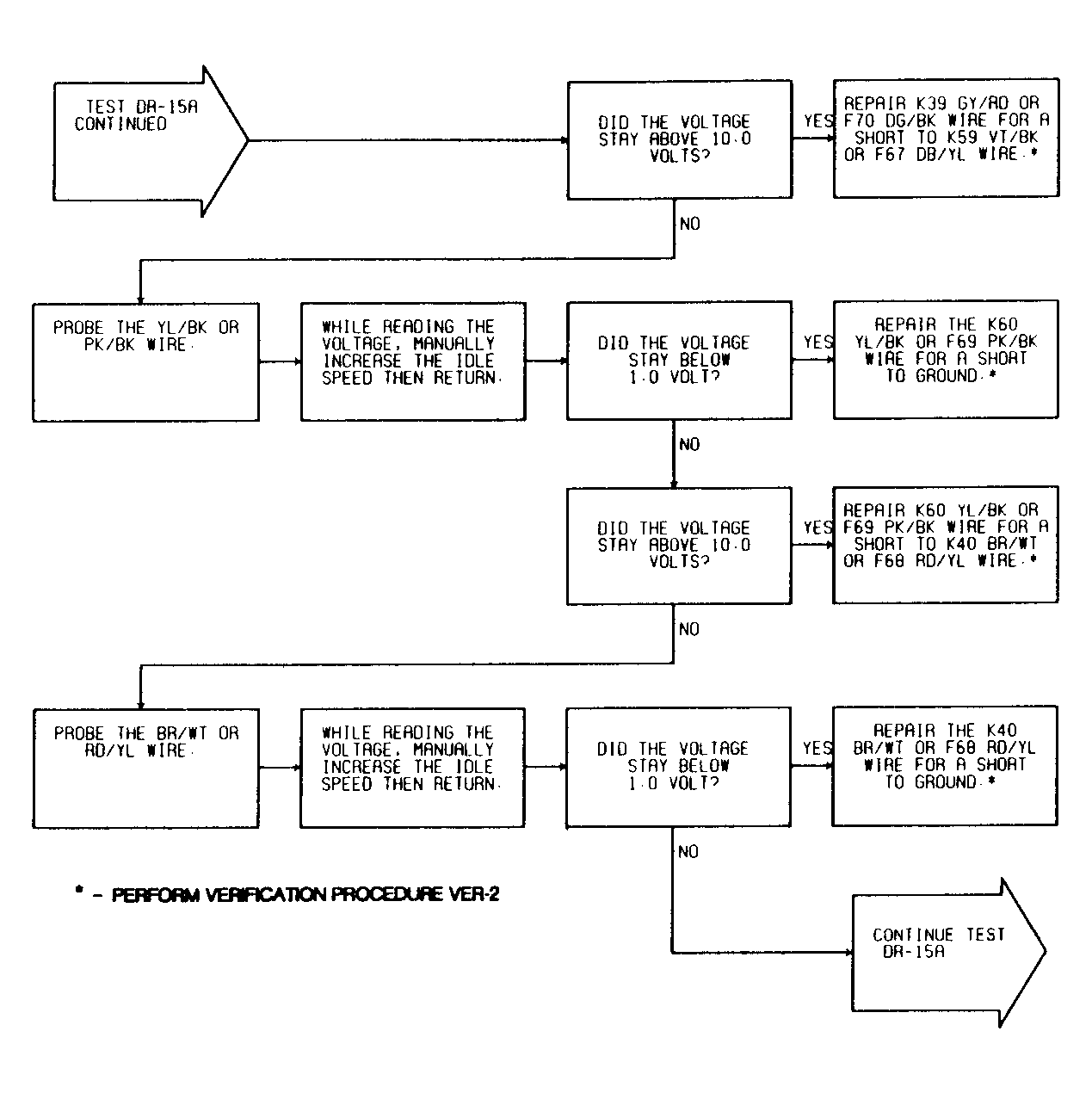

Fig 4: Test DR-15A (3 of 5) Automatic Idle Speed Motor Circuits

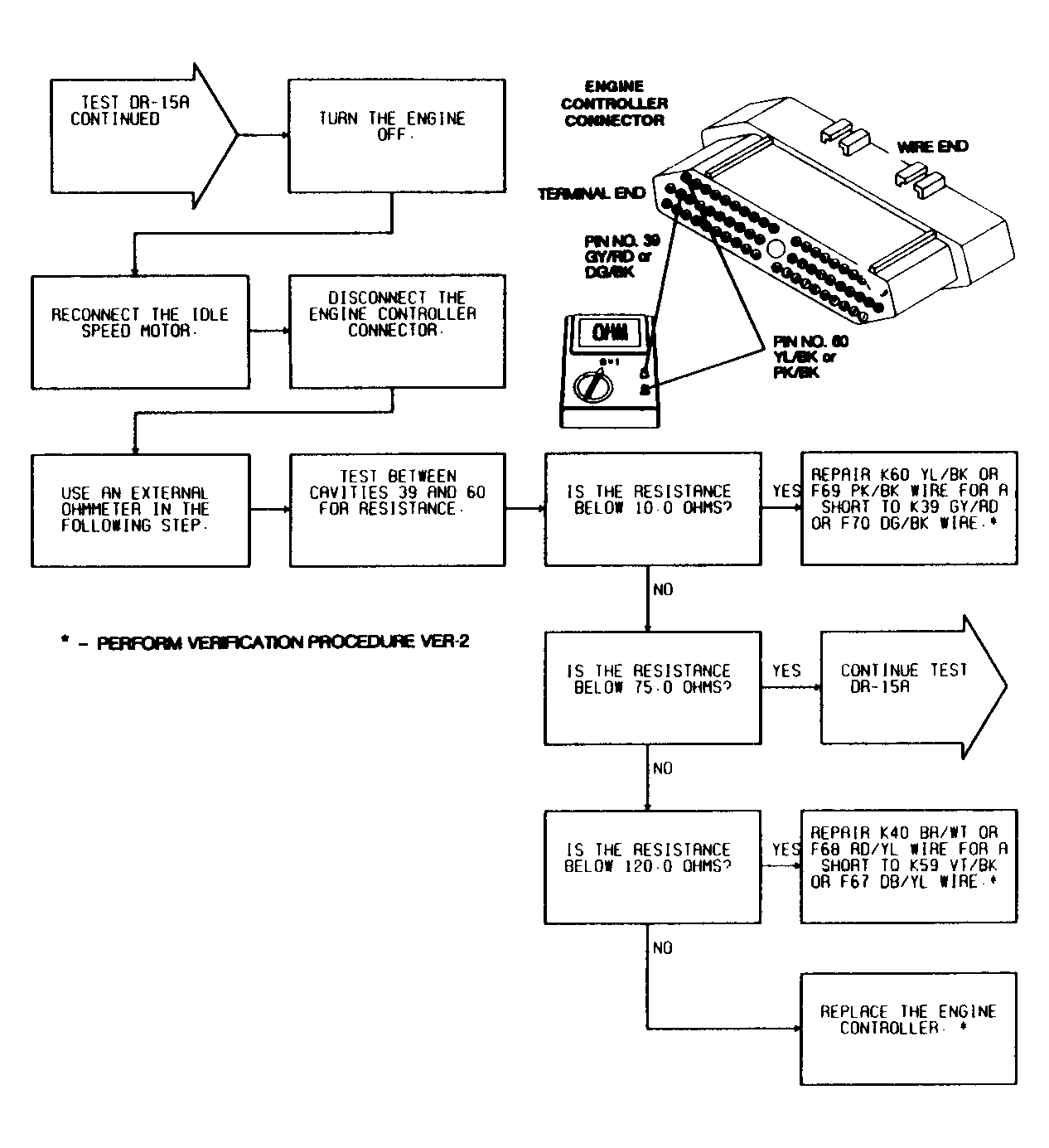

Fig 5: Test DR-15A (4 of 5) Automatic Idle Speed Motor Circuits

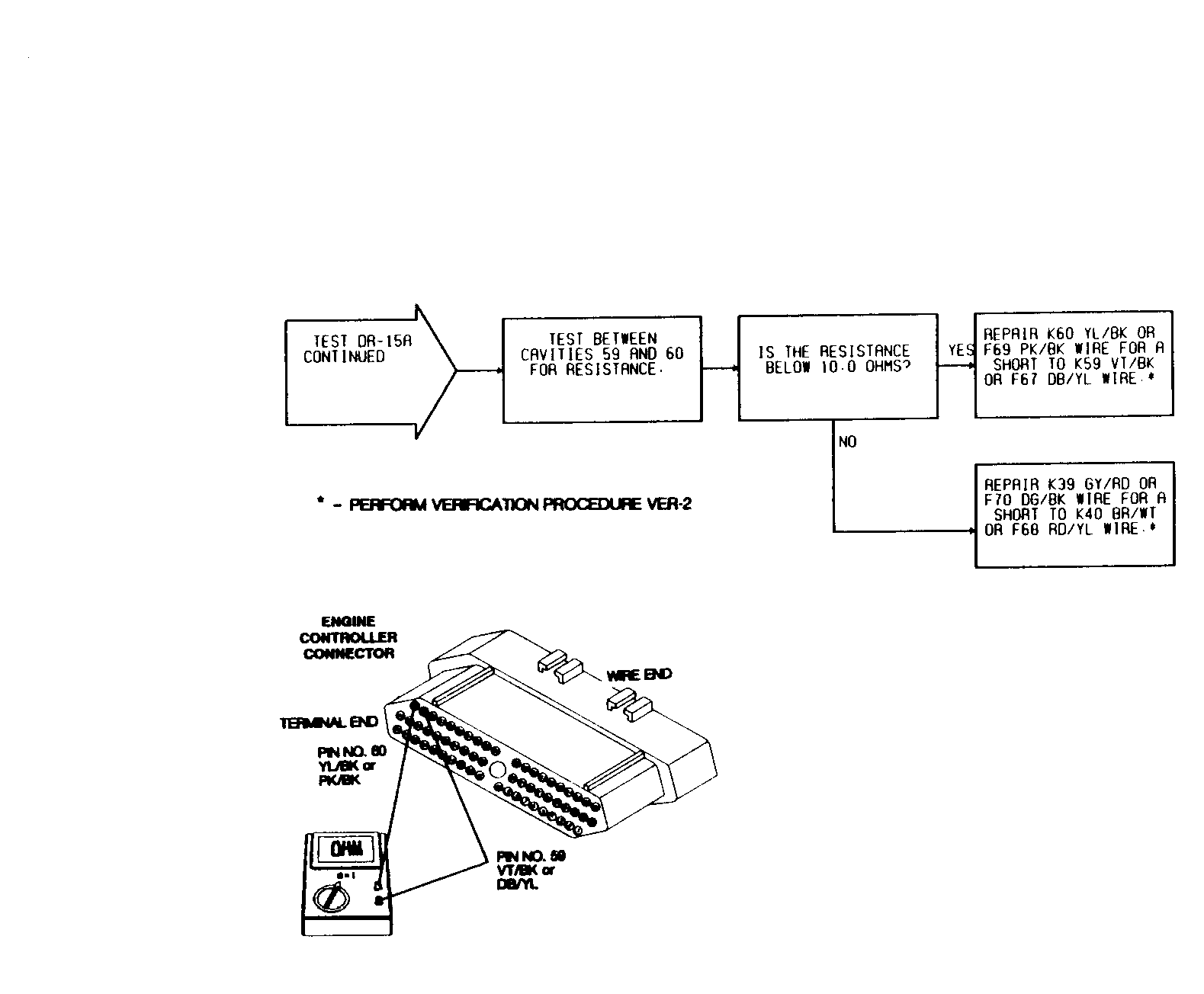

Fig 6: Test DR-15A (5 of 5) Automatic Idle Speed Motor Circuits
