Window Regulator: Removal

  1. Remove the interior door latch release assembly and control panel retaining screws. See Fig 1 .

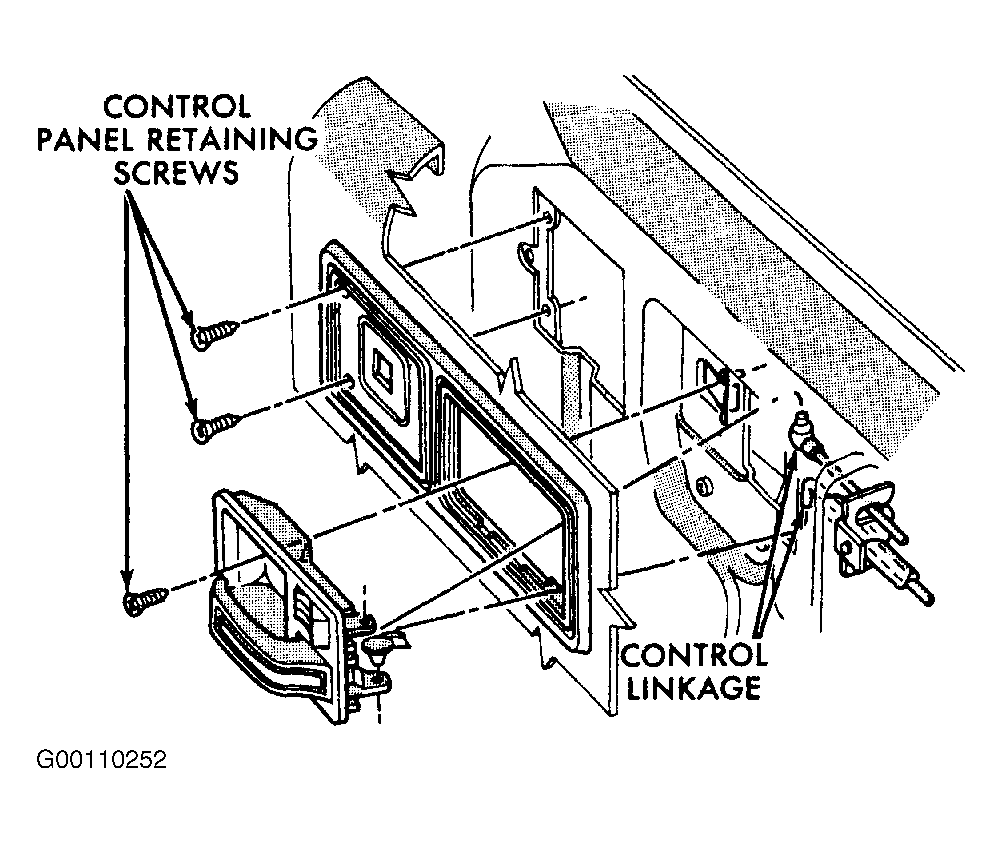

    Fig 1: Removing Power Window Control Panel
    G00110252Courtesy of CHRYSLER CORP.
  2. Disconnect the control linkage and the wire harness connector.
  3. Remove the latch release and control panel assembly.
  4. Remove the armrest lower retaining screws.
  5. Swing the armrest downward to a vertical position. This is necessary to disconnect the armrest from the upper retainer clip. See Fig 2 .

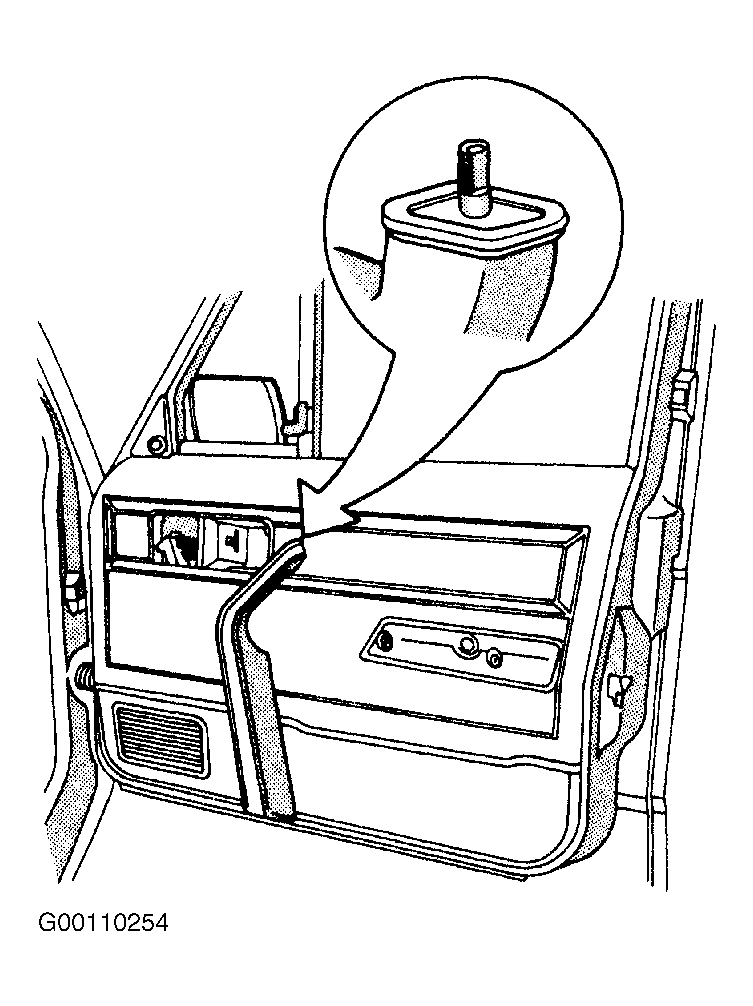

    Fig 2: Removing Armrest
    G00110254Courtesy of CHRYSLER CORP.
  6. Pull the armrest straight out from the trim panel.
    7. NOTE: To aid in removal of the trim panel, start at the bottom of the panel.

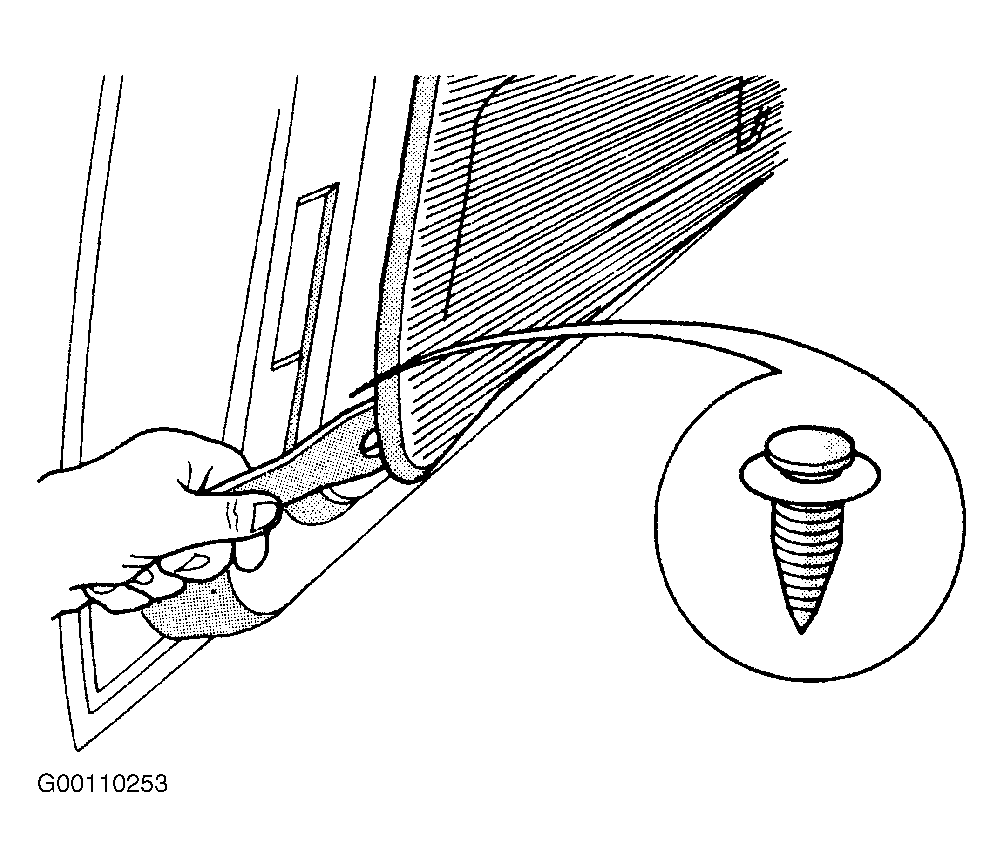

    Fig 3: Removing Trim Panel
    G00110253Courtesy of CHRYSLER CORP.
  7. Remove the trim panel with a wide flat blade tool. See Fig 3 .
  8. Remove the plastic water dam sheet.
  9. Grind the heads off 2 rivets holding reinforcement to door. Knock rivets out with a hammer and punch.
  10. Adjust window to allow access to door glass attaching Torx head screw. See Fig 4 .
  11. Remove two screws holding bottom of regulator to door.
  12. Remove door glass attaching Torx head screw. See Fig 4 .
    Fig 4: Removing Glass Attaching Screw
    G00110255Courtesy of CHRYSLER CORP.
  13. Pull glass to the full up position and tape glass to door.
  14. Disconnect wire harness connector from the window regulator assembly.
  15. Remove remaining window regulator assembly attaching screws. See Fig 5 .

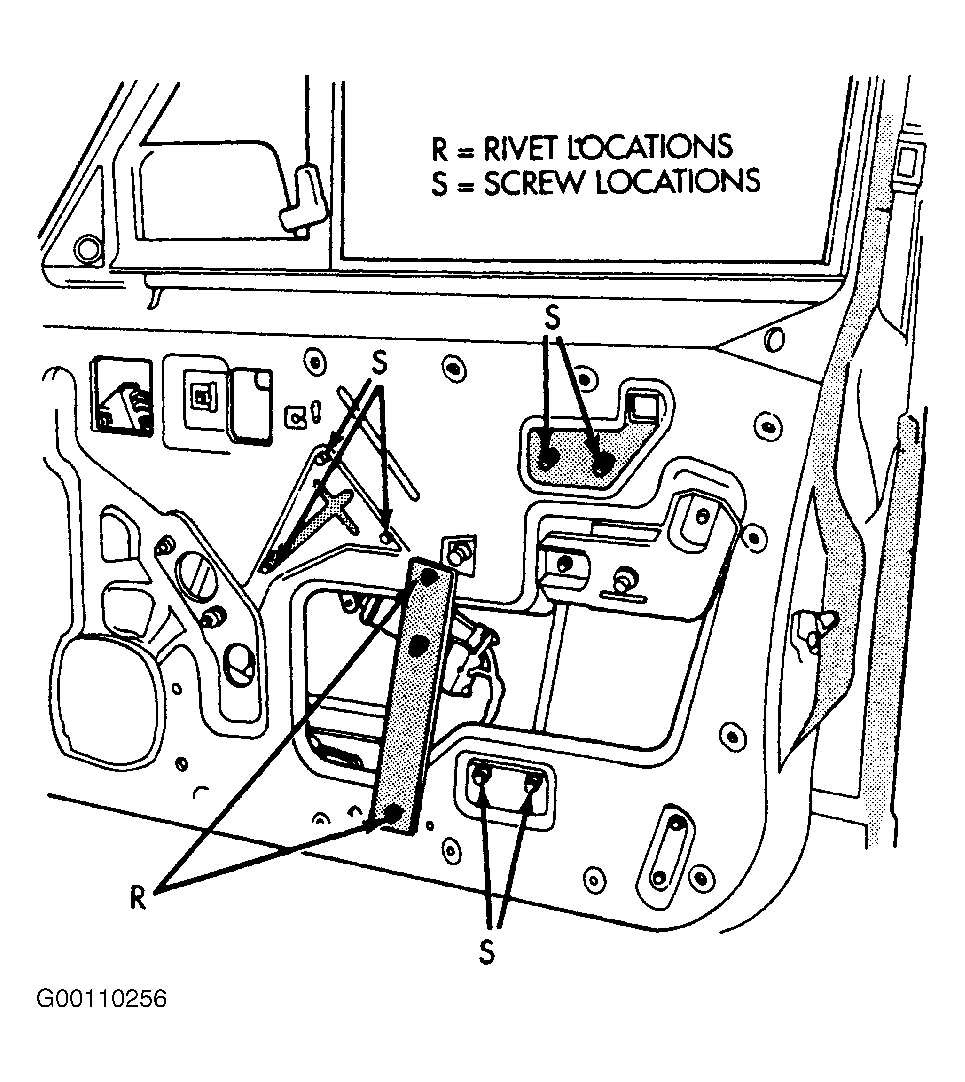

    Fig 5: Removing Window Regulator
    G00110256Courtesy of CHRYSLER CORP.
  16. Remove window regulator assembly.
