Window Regulator: Installation

  1. Place regulator assembly inside door.
  2. Attach regulator assembly to door using screws or the hardware kit supplied with a new regulator. DO NOT install the 2 screws that hold the bottom of the regulator at this time.
  3. Connect wire harness connector to regulatorassembly.

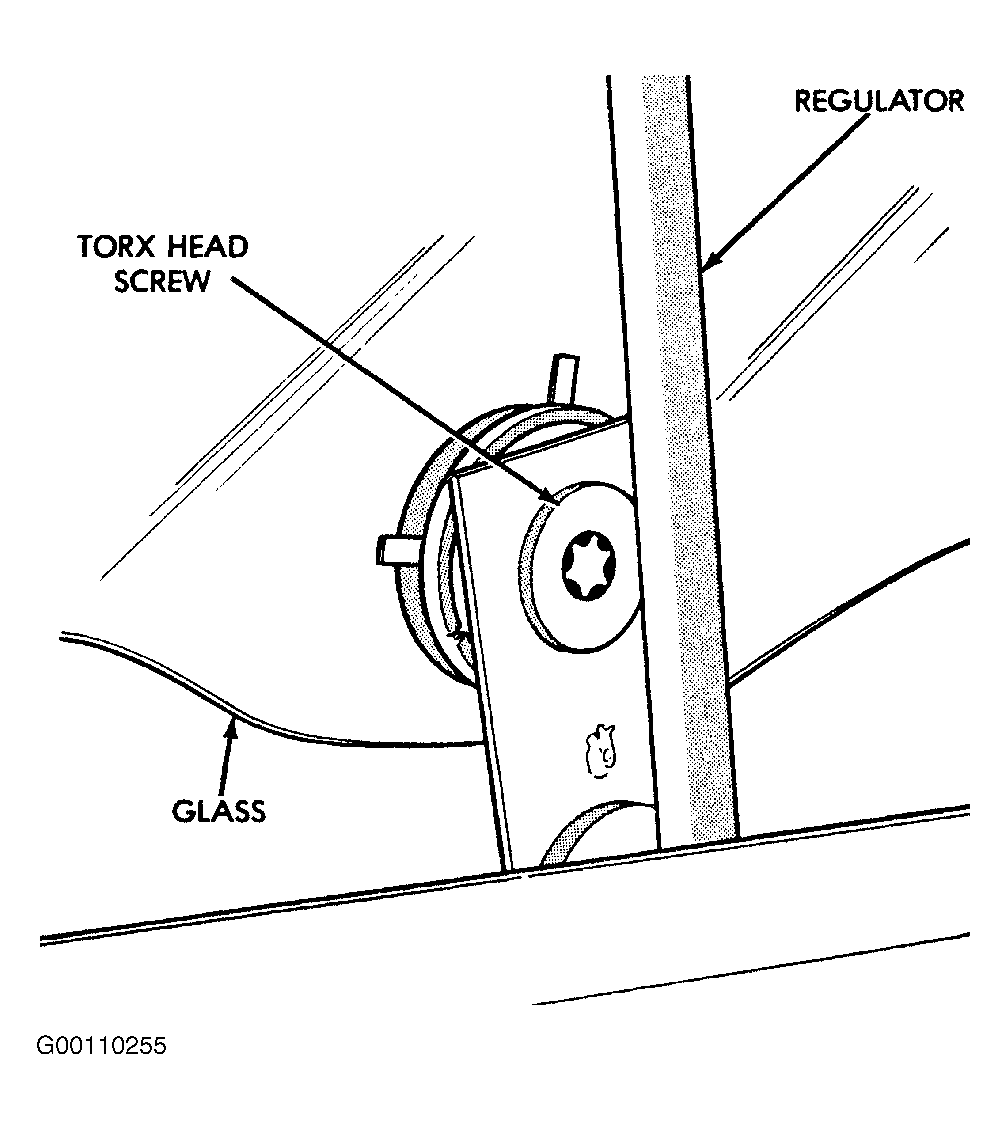

  4. Attach door glass with Torx head screw. See Figure . Tighten door glass screw to 3.3 N.m (30 INCH lbs.).
  5. Install the last 2 screws to bottom of regulator.
  6. Using adhesive/sealant (3M 08044 or 3M 08041), or equivalent, install plastic water dam sheet.
  7. Place trim panel in the installation position and press in nylon retainers.
  8. Install the armrest.
  9. Install latch release assembly and control panel.
