Passenger Door Window Switch

To diagnosis passenger door window switch, refer to illustration. See Fig 1 .

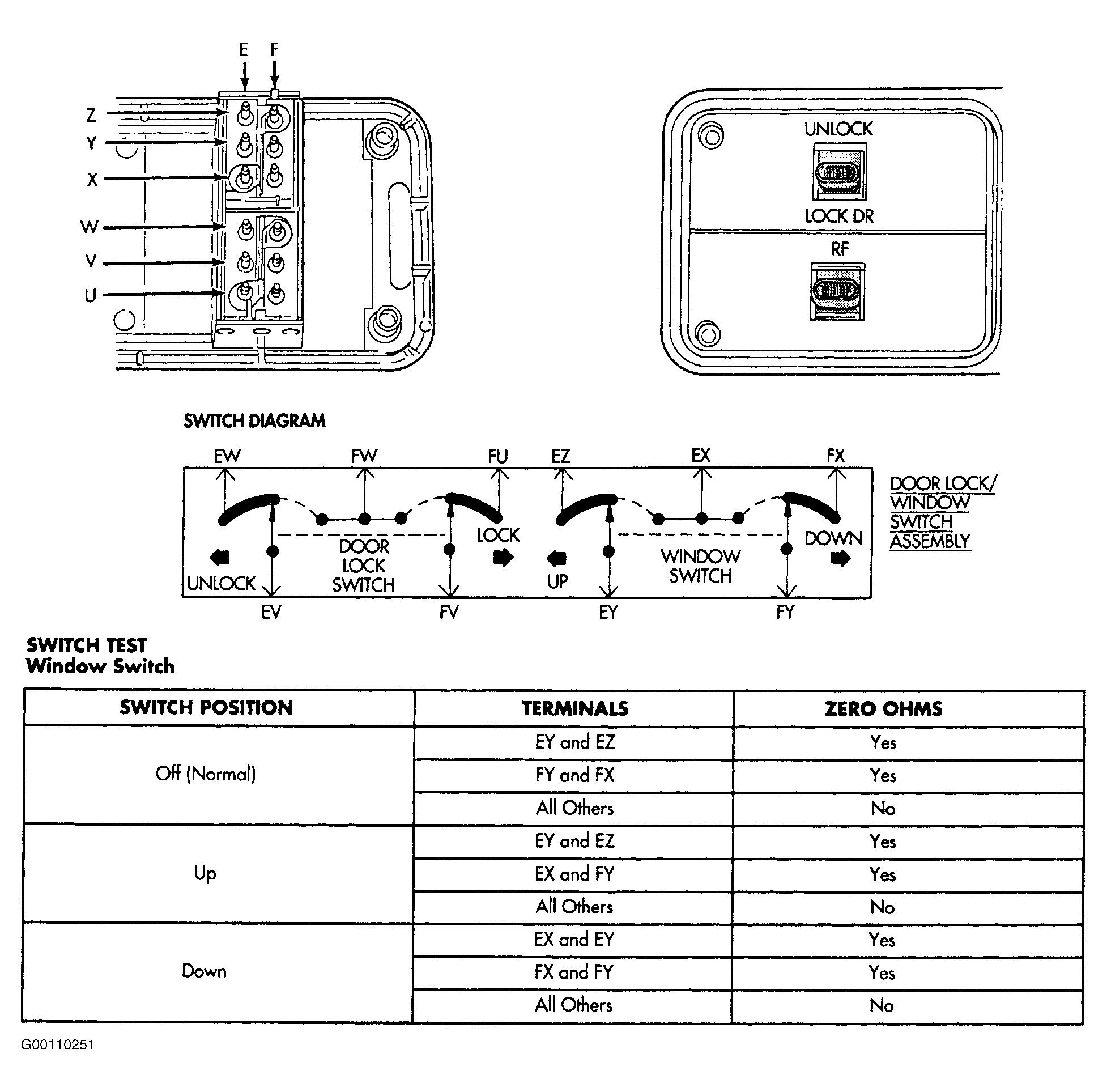

Fig 1: Passenger Door Window Switch Test

G00110251

Courtesy of CHRYSLER CORP.
