Fault 1052: Map Sensor Circuit

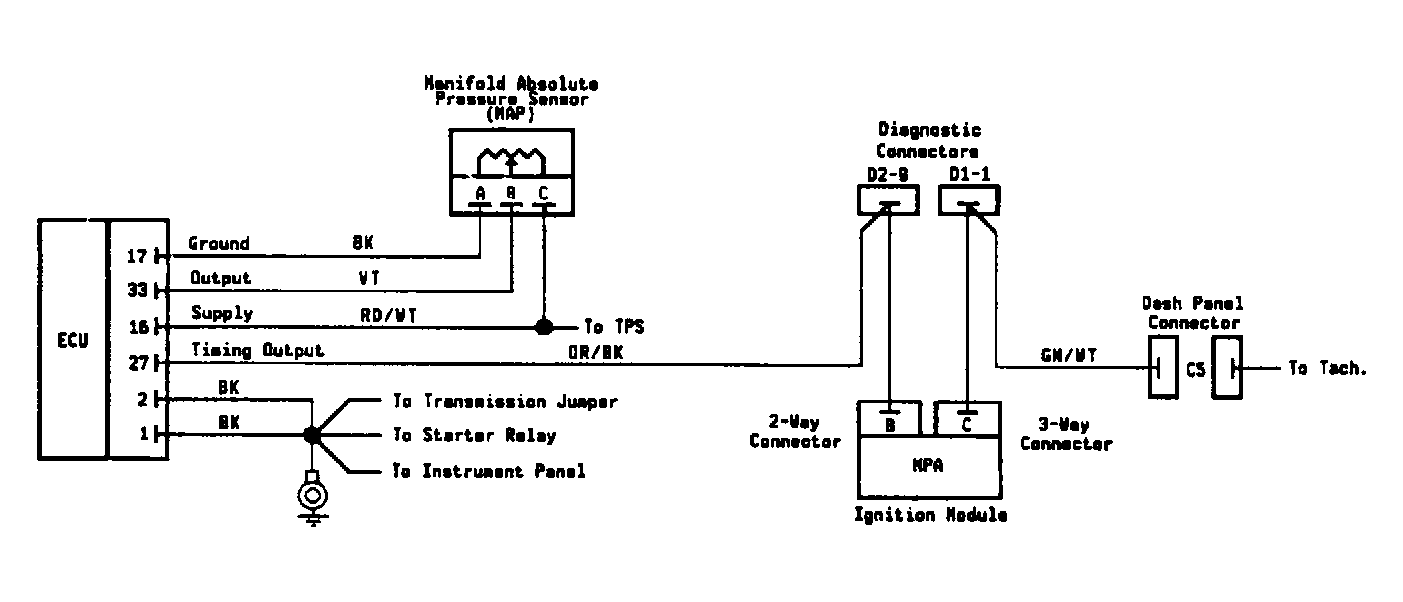

Fig 1: Fault 1052: Circuit Diagram MAP Sensor Circuit

G90H17712

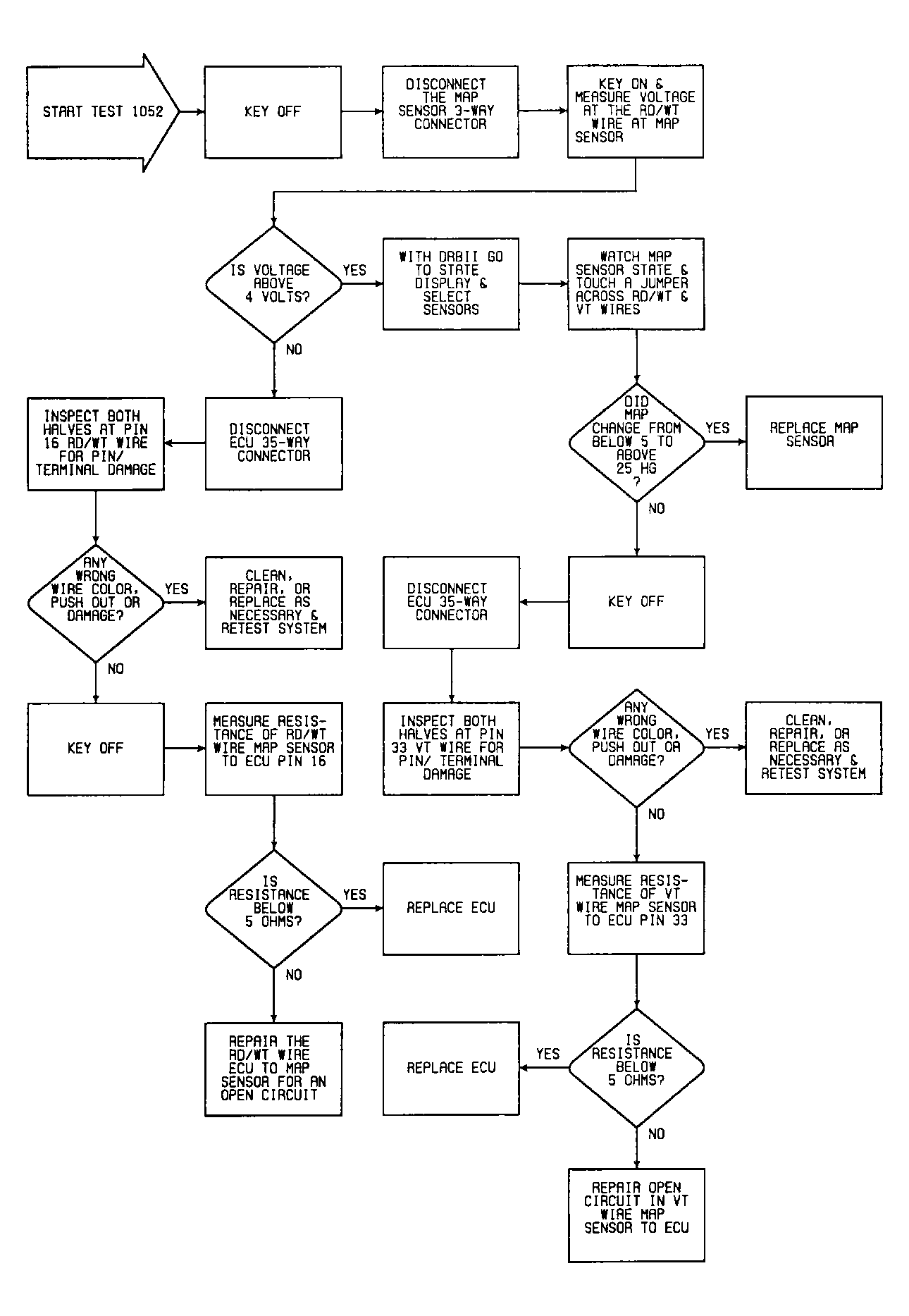

Fig 2: Fault 1052: Flow Chart MAP Sensor Circuit

G90I17713
