Fault 1053: Map Sensor Ground Circuit
Fault 1053: Map Sensor Ground Circuit
Fig 1: Fault 1053: Circuit Diagram MAP Sensor Ground Circuit

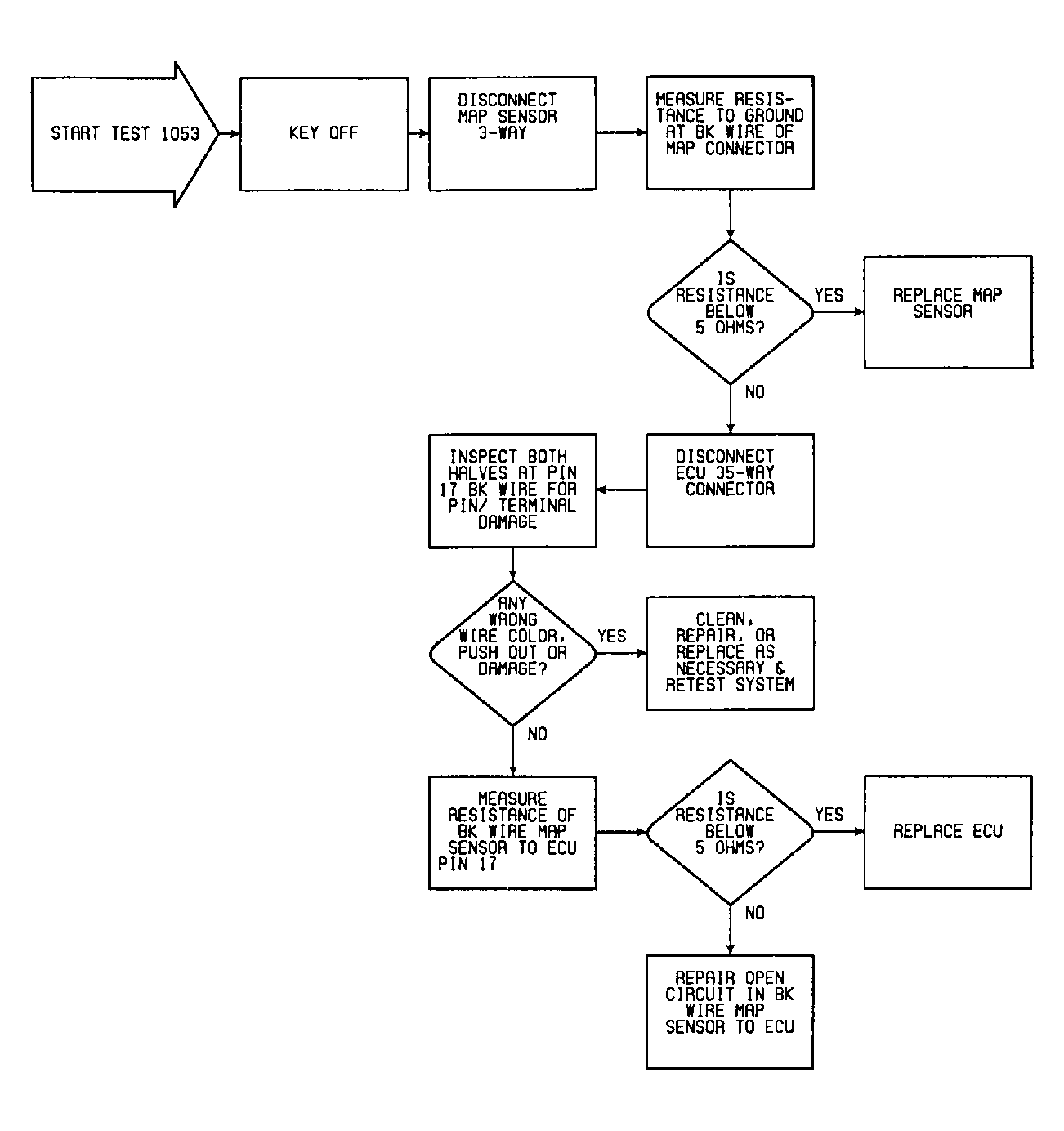

Fig 2: Fault 1053: Flow Chart MAP Sensor Ground Circuit
