Valve Body: Disassembly

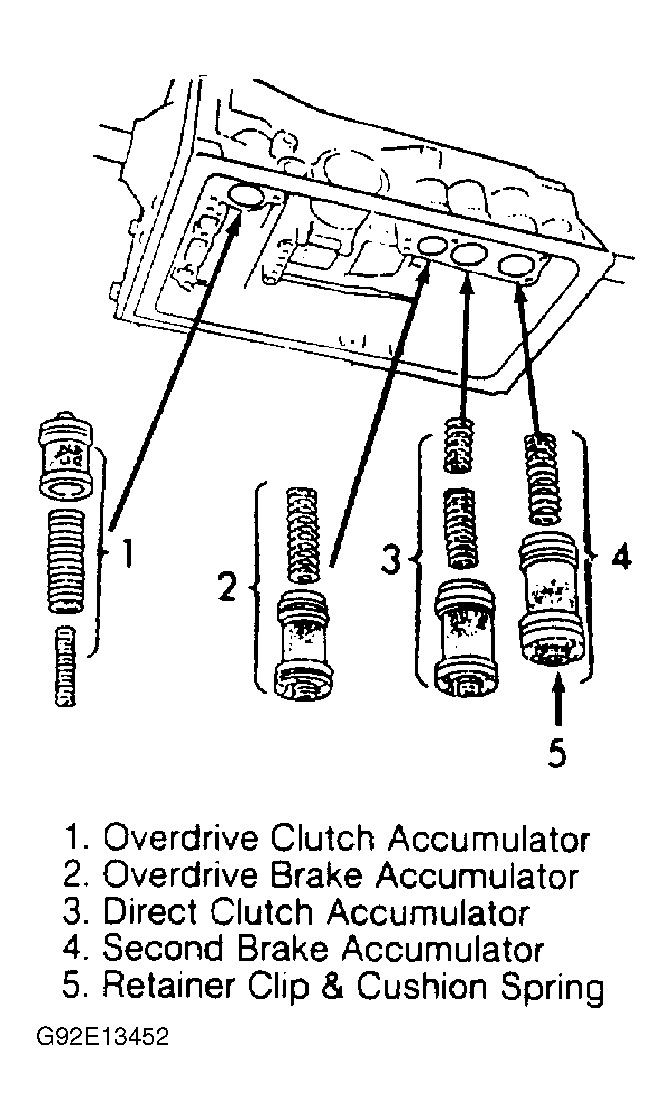

- Remove overdrive clutch accumulator piston and springs, overdrive brake accumulator piston and springs, second clutch accumulator piston, springs and spacer and second clutch accumulator piston, springs and spacers. See Fig 1
. Mark pistons springs and spacers for reassembly reference.
- Remove transmission-to-valve body check ball and spring from transmission housing. Transmission-to-valve body check ball is under a forked-pin located in front of transmission case.
Courtesy of CHRYSLER CORP.
