Front Planetary Gear: Reassembly

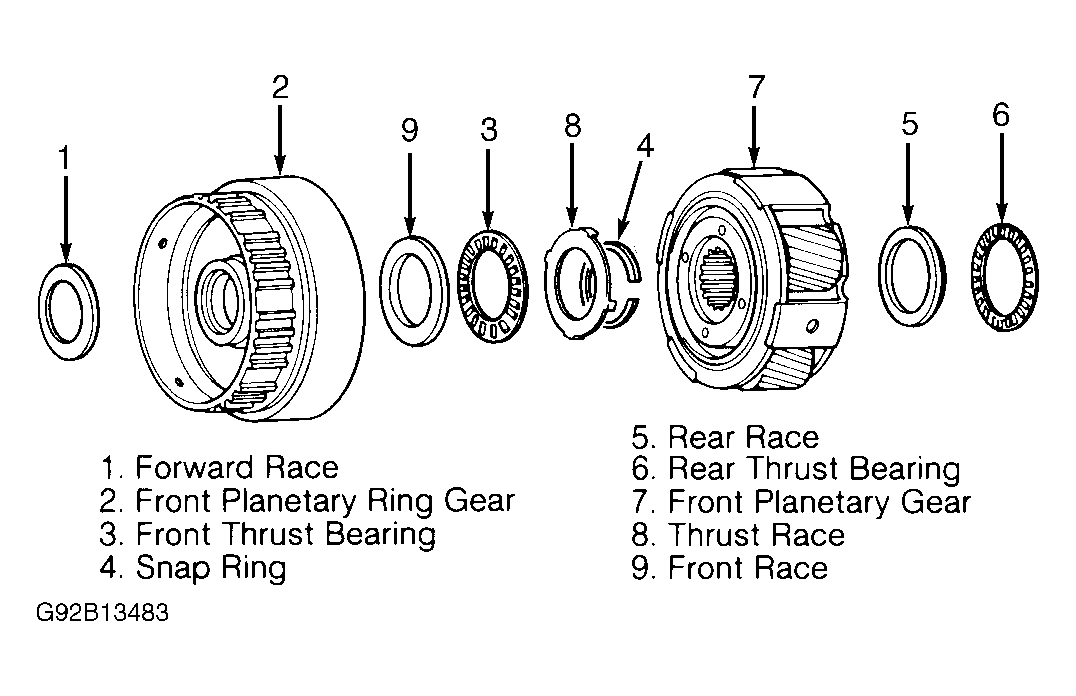

To reassemble, reverse disassembly procedures. See Fig 1 . See FRONT PLANETARY GEAR BEARING IDENTIFICATION table.
FRONT PLANETARY GEAR BEARING IDENTIFICATION
| Application | Outer Diameter - In. (mm) | Inner Diameter - In. (mm) |
|---|---|---|
| Forward Race | 1.850 (47.0) | 1.043 (26.5) |
| Front Bearing | 1.878 (47.7) | 1.283 (32.6) |
| Front Race | 2.110 (53.6) | 1.201 (30.5) |
| Rear Bearing | 1.878 (47.7) | 1.398 (35.5) |
| Rear Race | 1.874 (47.6) | 1.327 (33.7) |
