Code 707: Temperature Ground

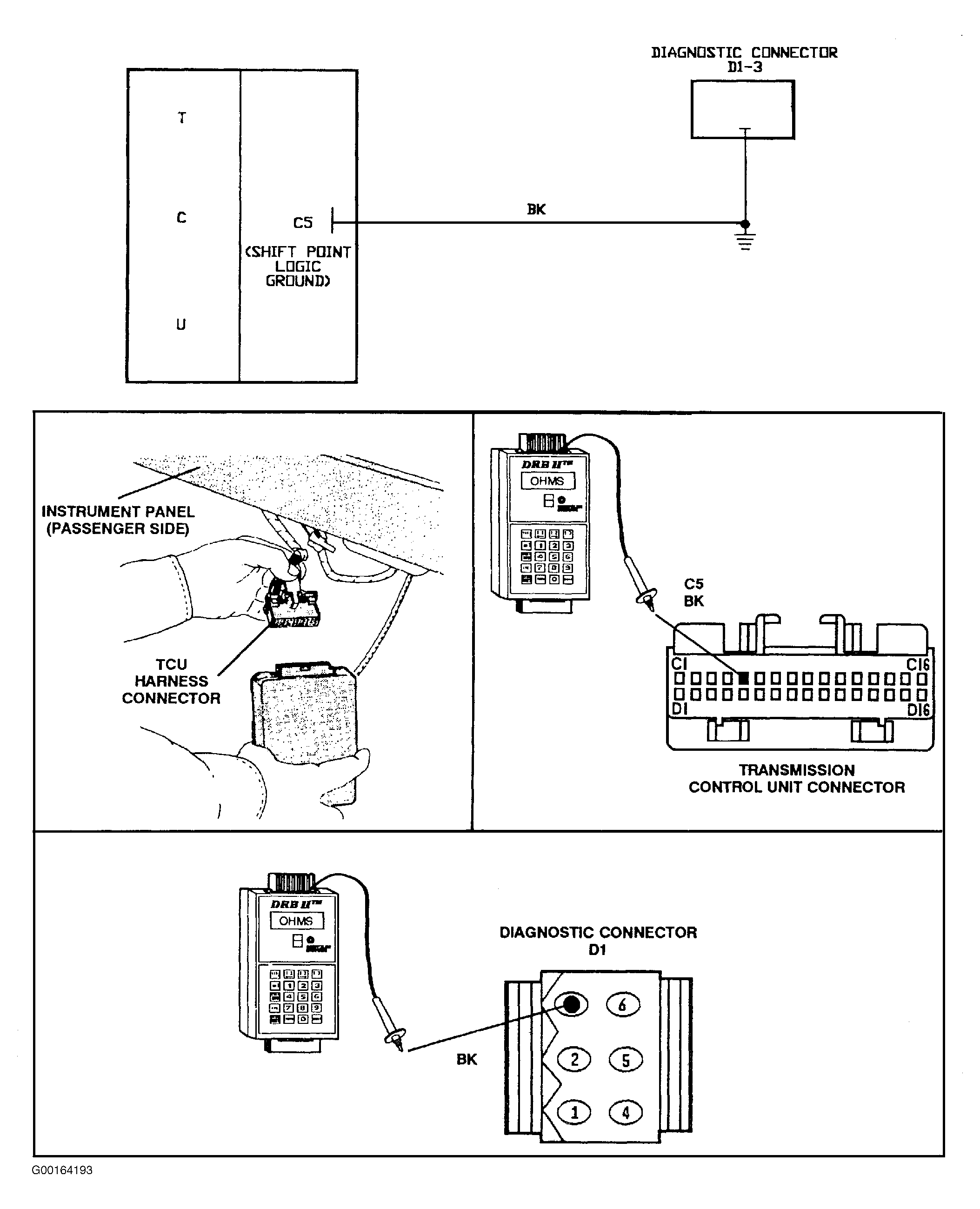

Fig 1: Code 707 - Temperature Ground (1 Of 2)

G00164193

Courtesy of CHRYSLER CORP.

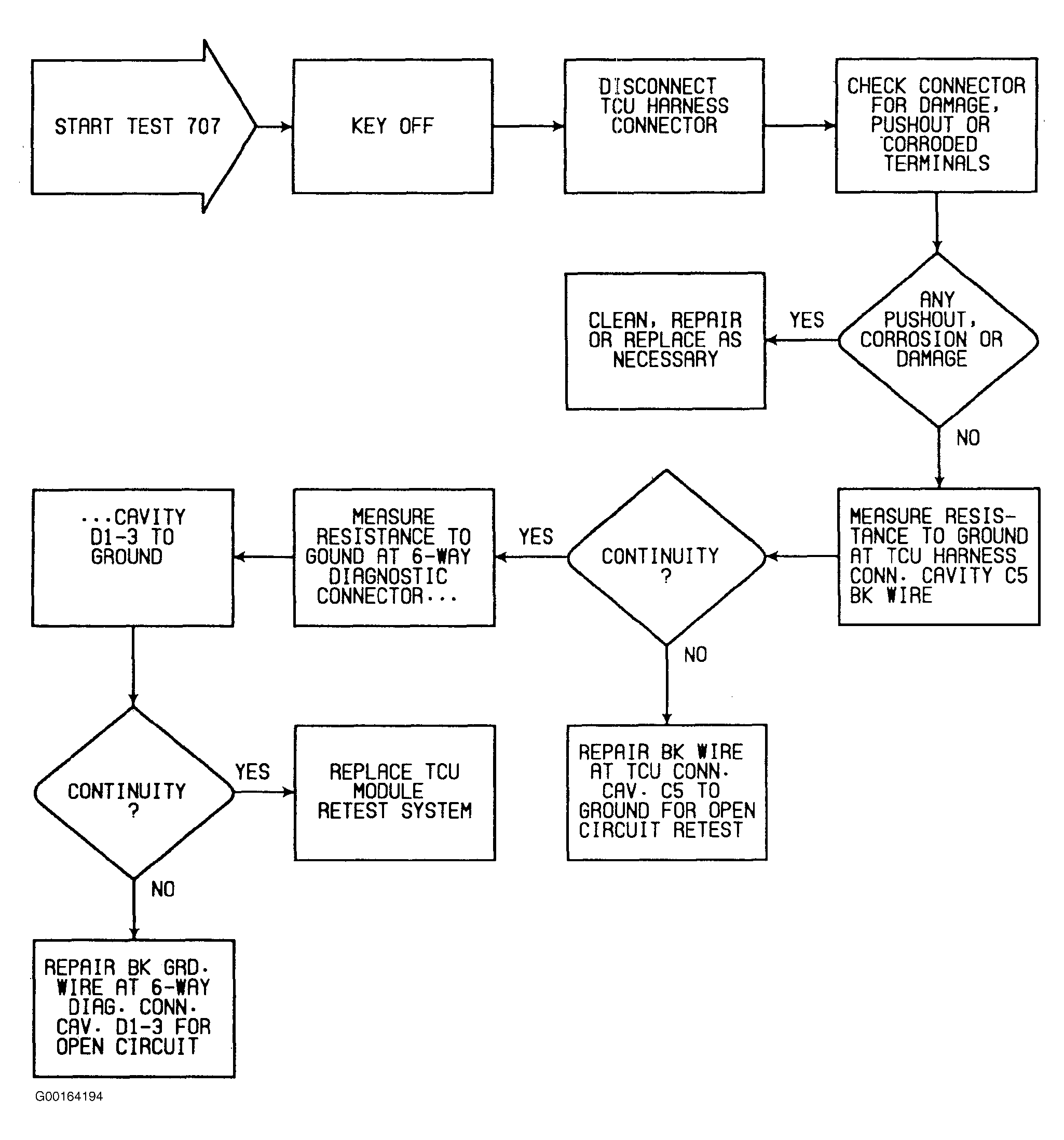

Fig 2: Code 707 - Temperature Ground (2 Of 2)

G00164194

Courtesy of CHRYSLER CORP.
