Code 706: Brake Switch

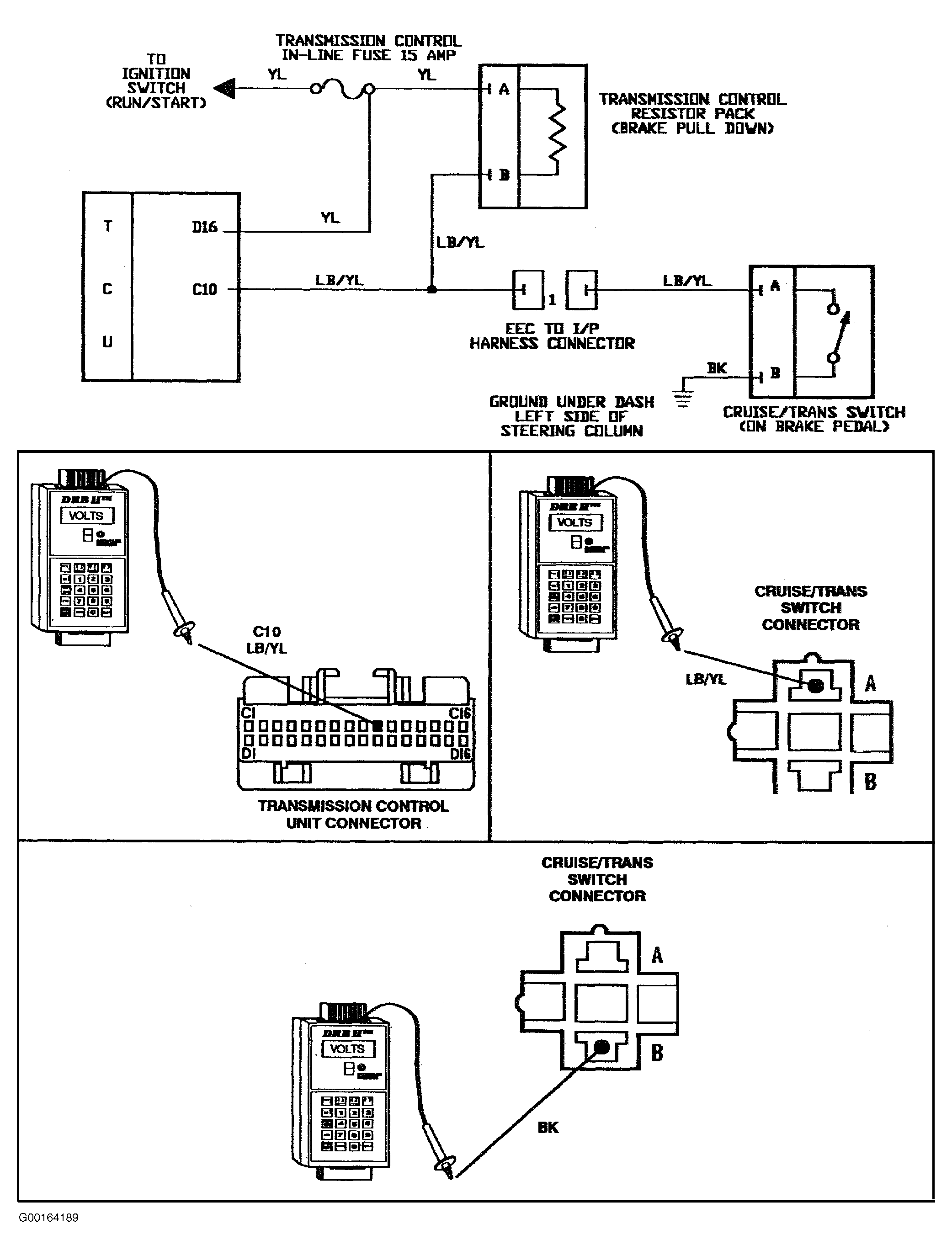

Fig 1: Code 706 - Brake Switch (1 Of 4)
G00164189Courtesy of CHRYSLER CORP.

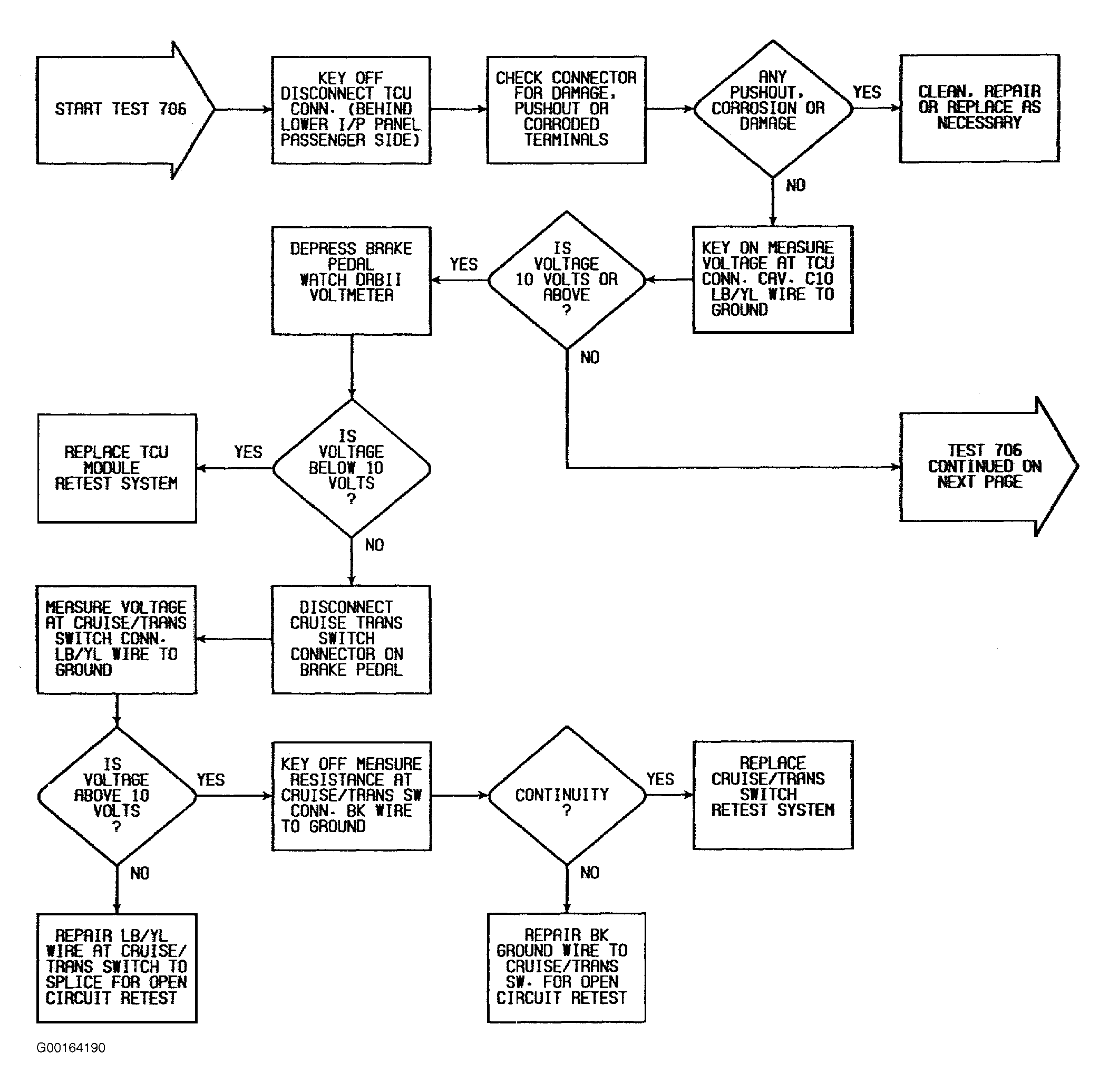

Fig 2: Code 706 - Brake Switch (2 Of 4)
G00164190Courtesy of CHRYSLER CORP.

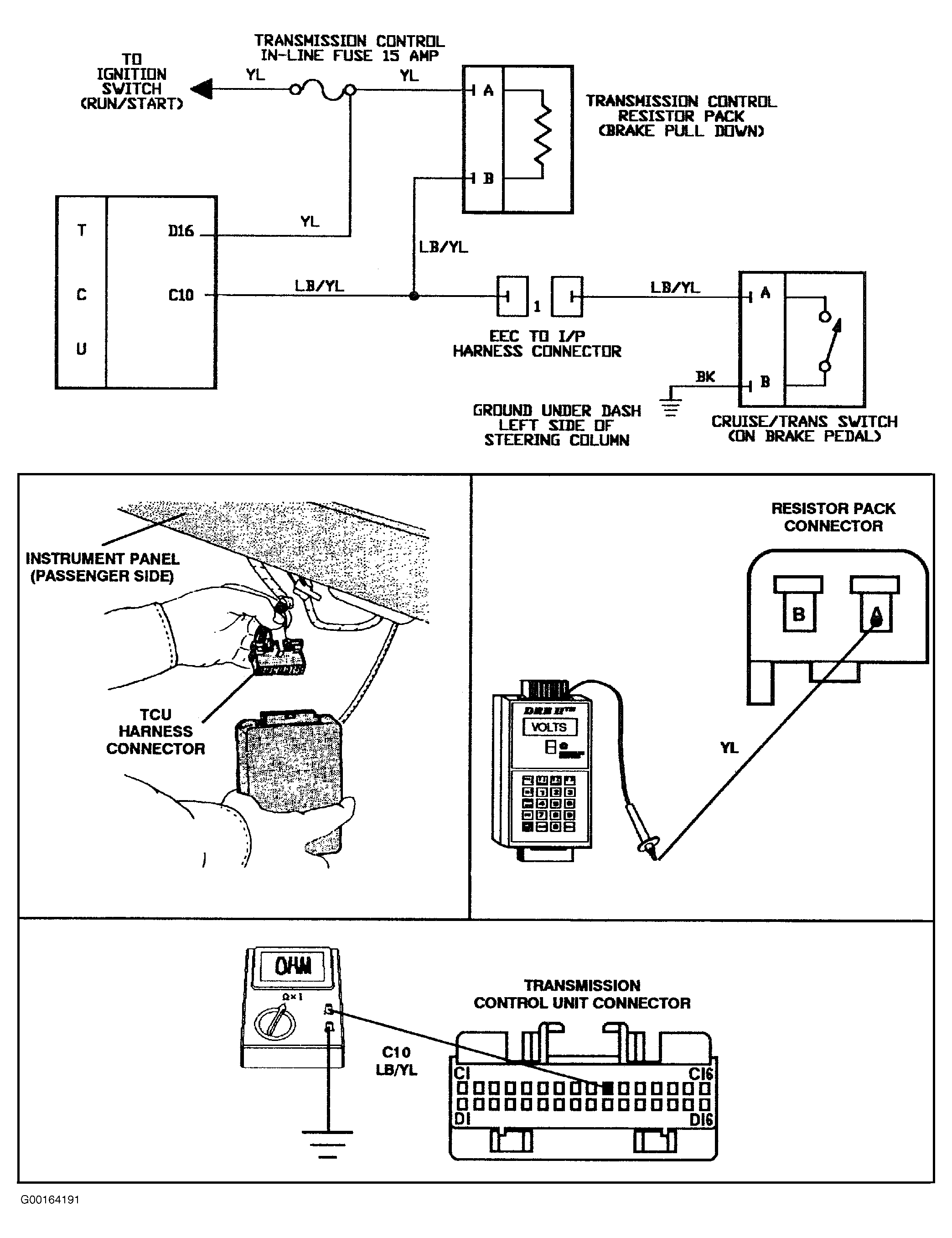

Fig 3: Code 706 - Brake Switch (3 Of 4)
G00164191Courtesy of CHRYSLER CORP.

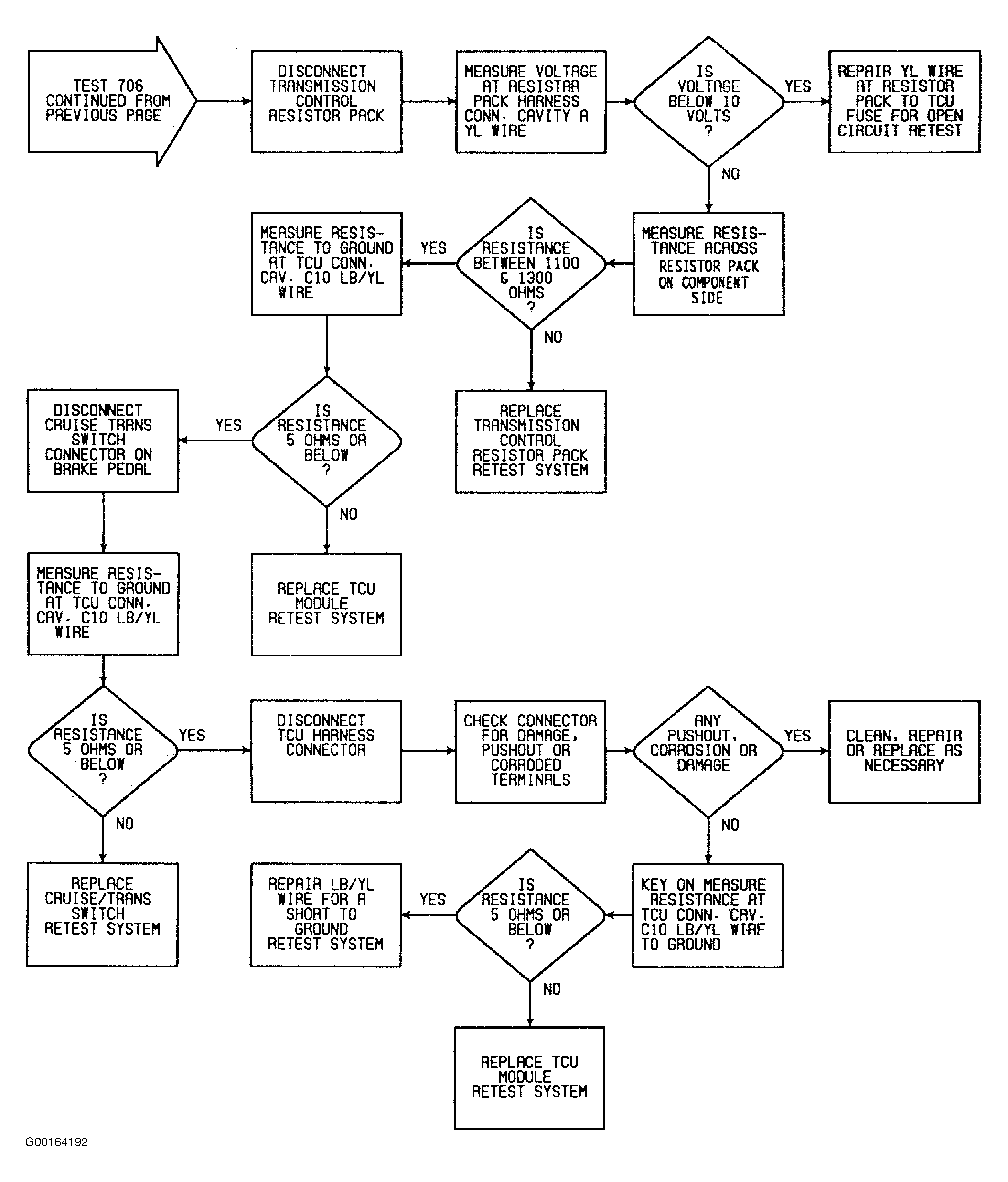

Fig 4: Code 706 - Brake Switch (4 Of 4)
G00164192Courtesy of CHRYSLER CORP.
