Code 704: No Serial Data

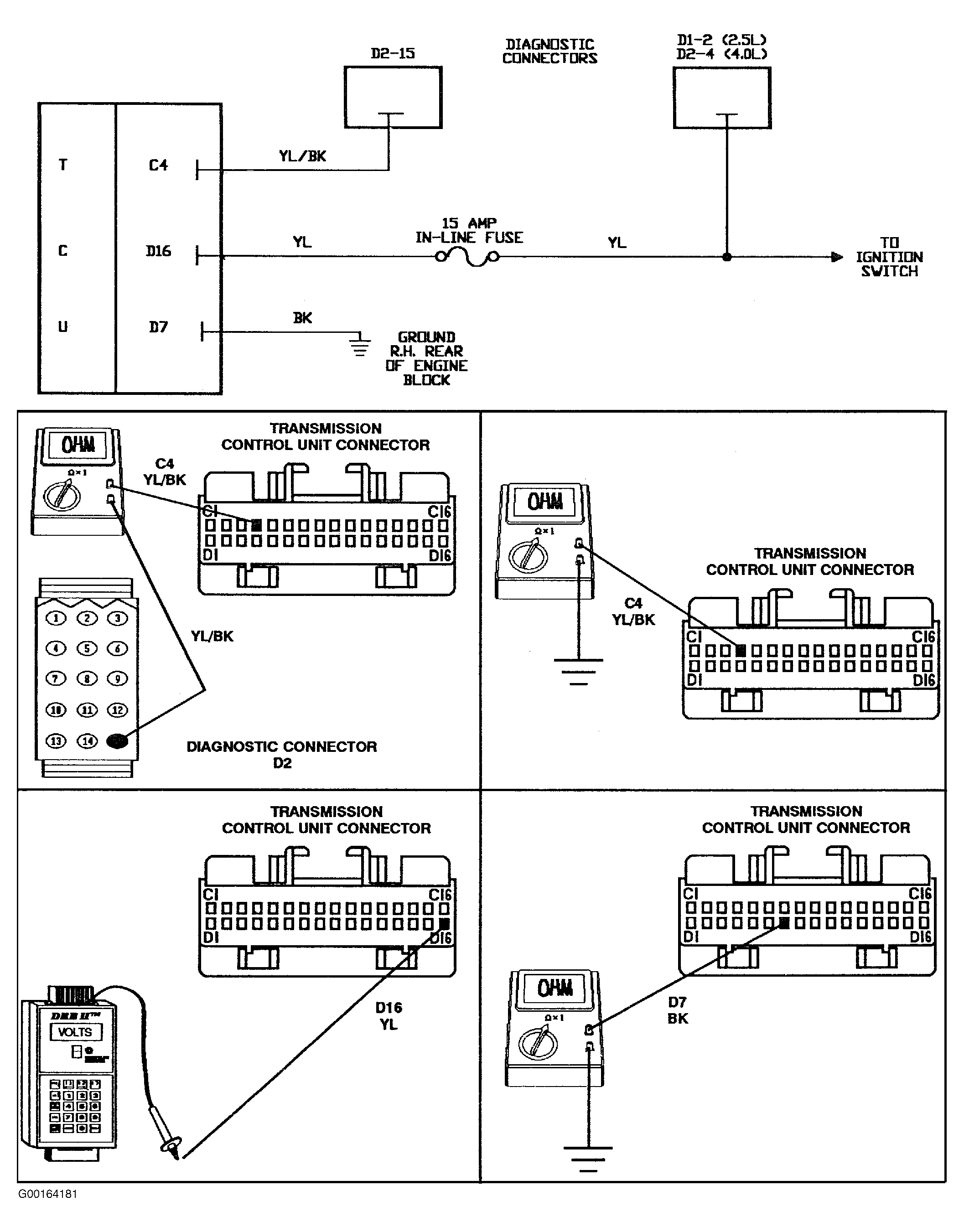

Fig 1: Code 704 - No Serial Data (1 Of 4)
G00164181Courtesy of CHRYSLER CORP.

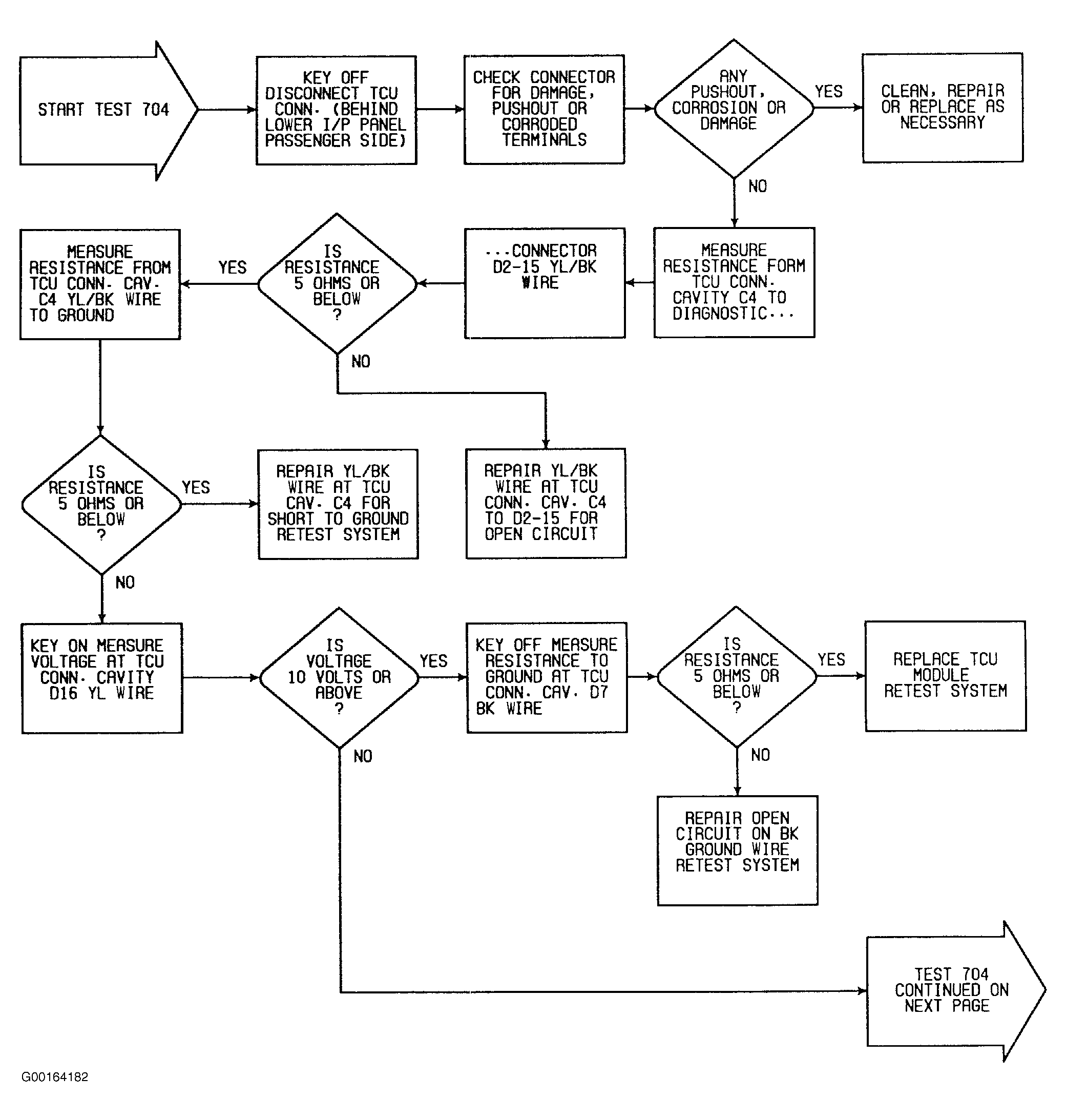

Fig 2: Code 704 - No Serial Data (2 Of 4)
G00164182Courtesy of CHRYSLER CORP.

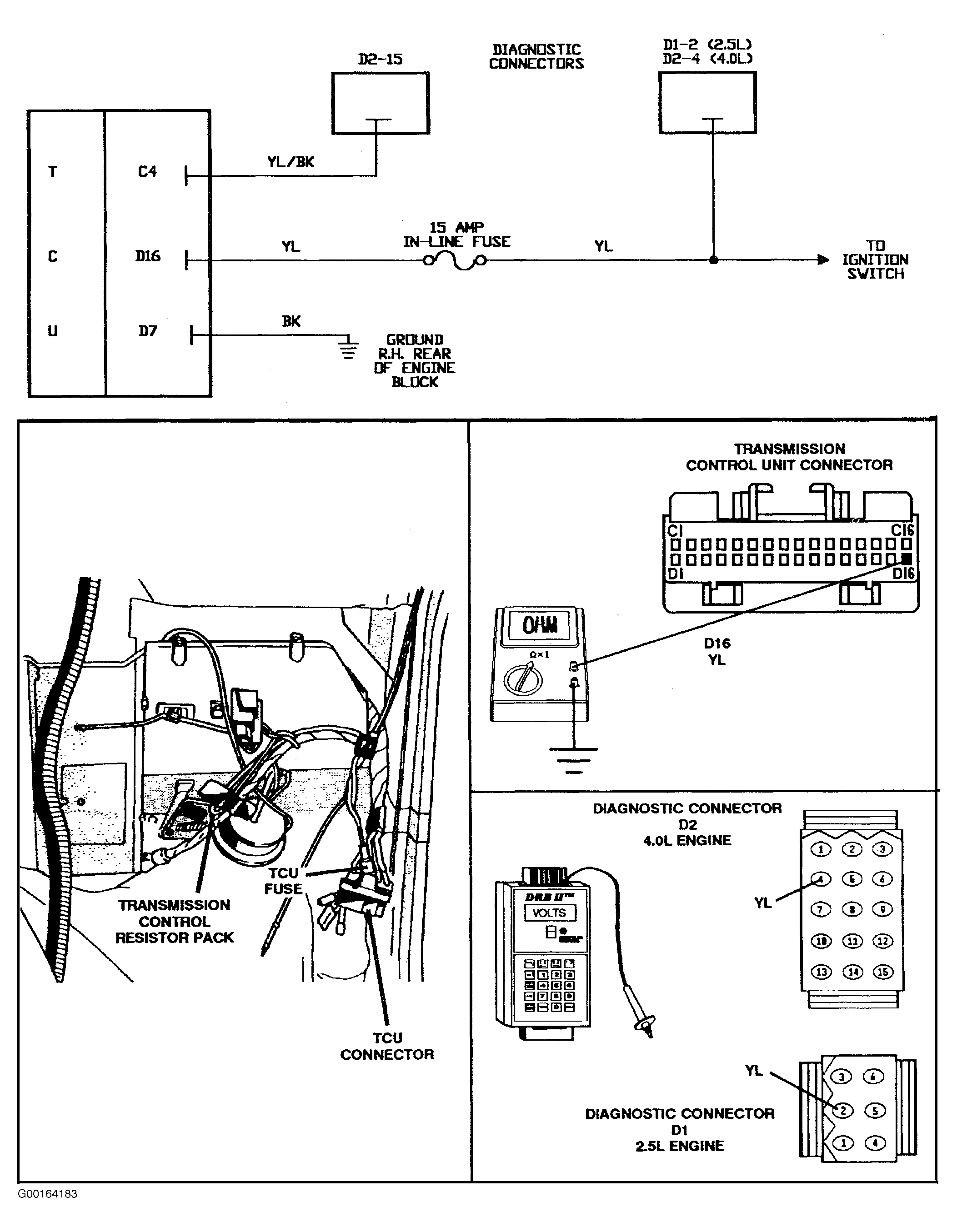

Fig 3: Code 704 - No Serial Data (3 Of 4)
G00164183Courtesy of CHRYSLER CORP.

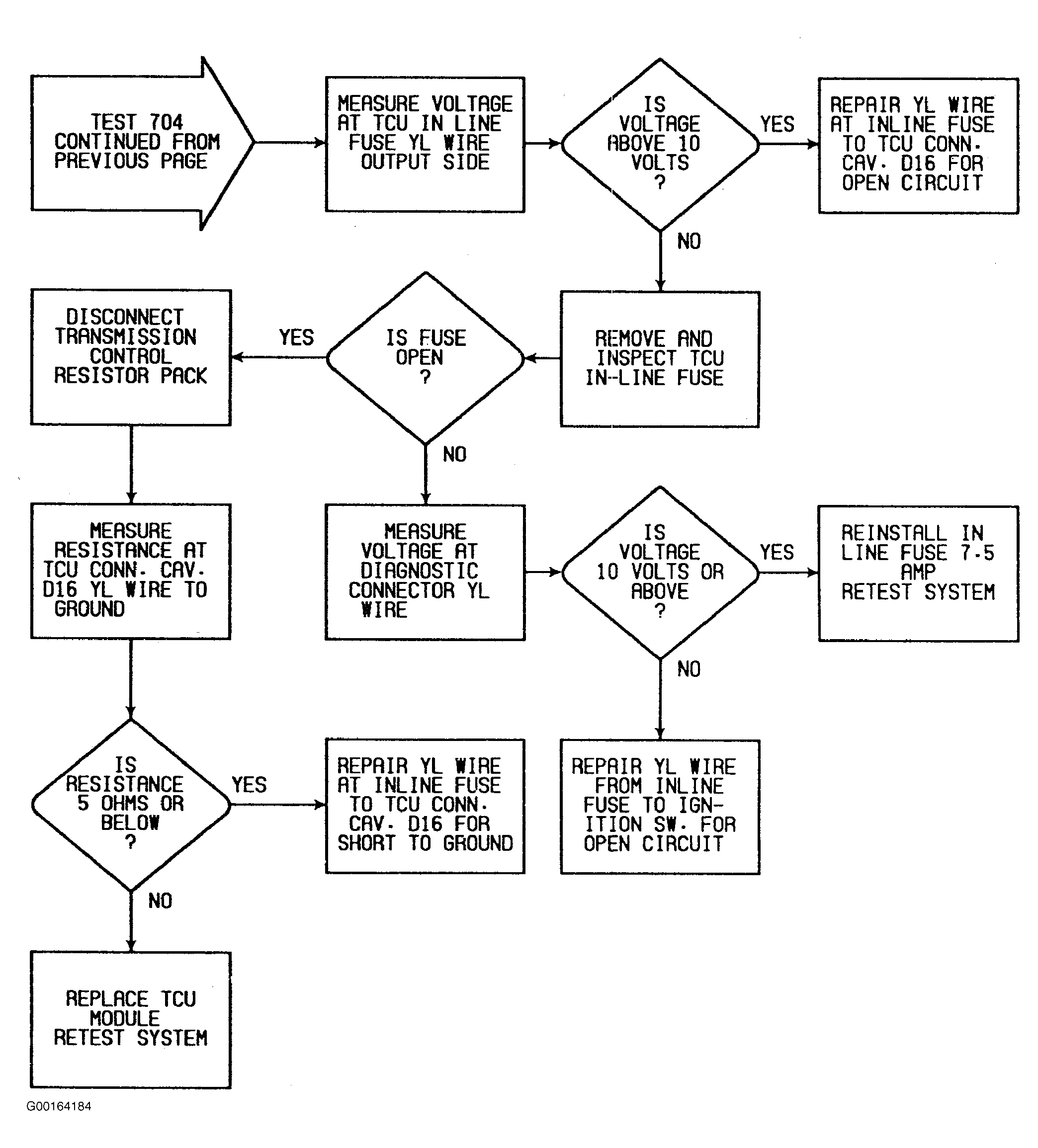

Fig 4: Code 704 - No Serial Data (4 Of 4)
G00164184Courtesy of CHRYSLER CORP.
