Fault 1215: Injector No. 6 Circuit Open

Fig 1: Fault 1215: Circuit Diagram No. 6 Injector Circuit Open

G90F17835

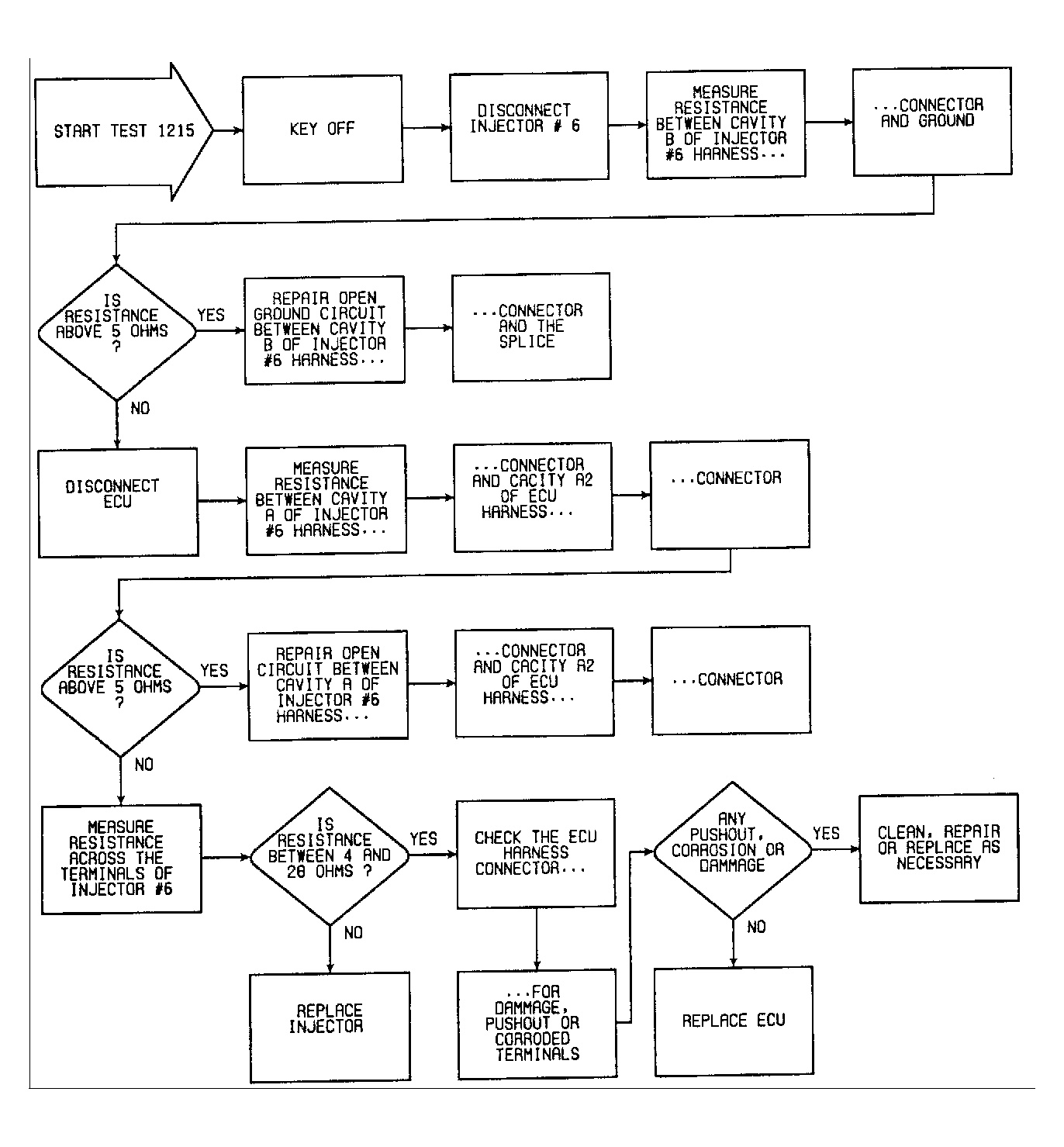

Fig 2: Fault 1215: Flow Chart No. 6 Injector Circuit Open

G90G17927
