Engine Controls - Tests W/Codes - 4.0L
>>
Code Charts
>>
Fault 1213: Injector No. 4 Circuit Open
Fault 1213: Injector No. 4 Circuit Open
Fig 1: Fault 1213: Circuit Diagram No. 4 Injector Circuit Open

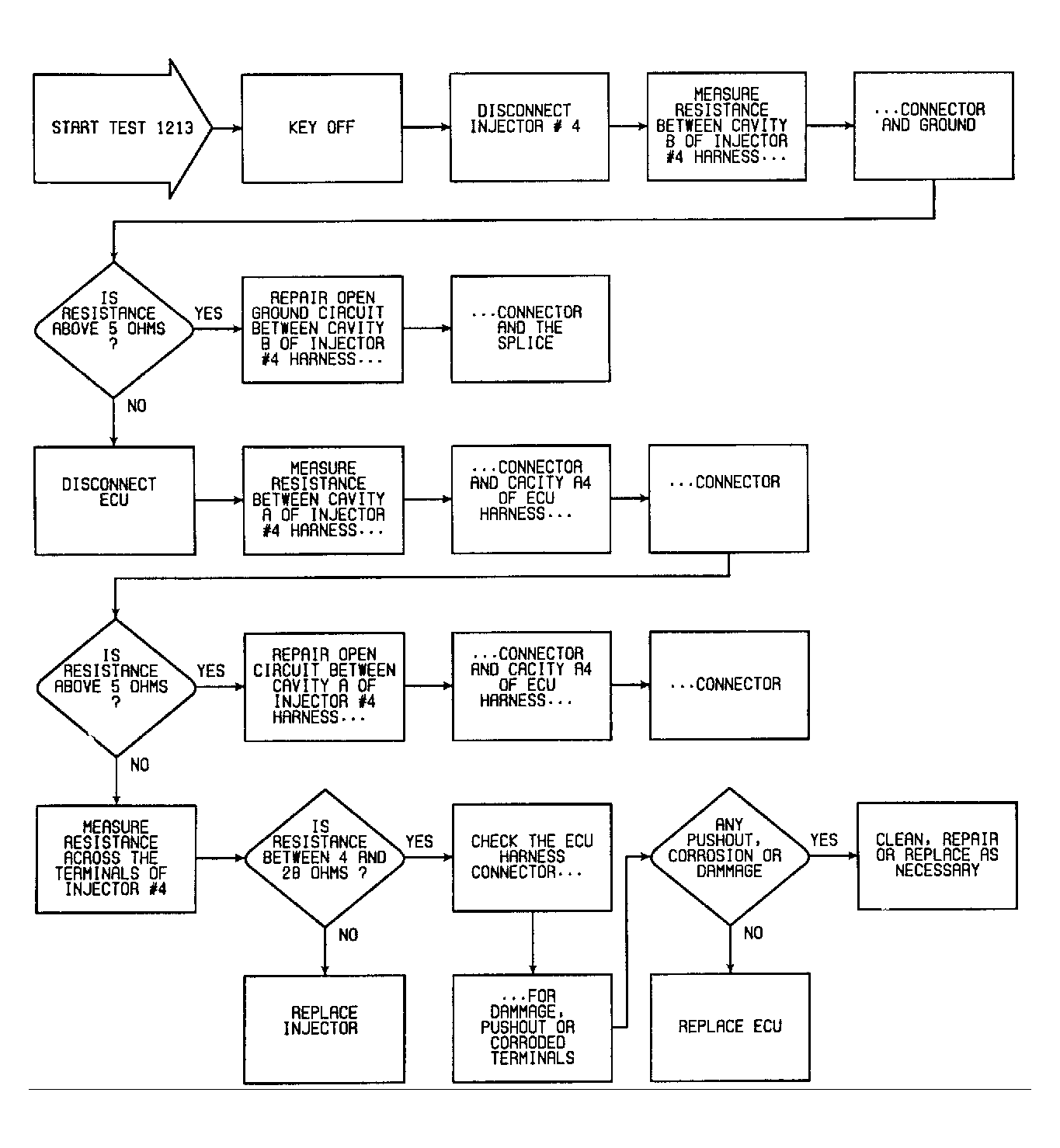

Fig 2: Fault 1213: Flow Chart No. 4 Injector Circuit Open
