Fault 1208: Injector No. 6 Shorted To Ground

Fig 1: Fault 1208: Circuit Diagram No. 6 Injector Shorted to Ground

G90F17835

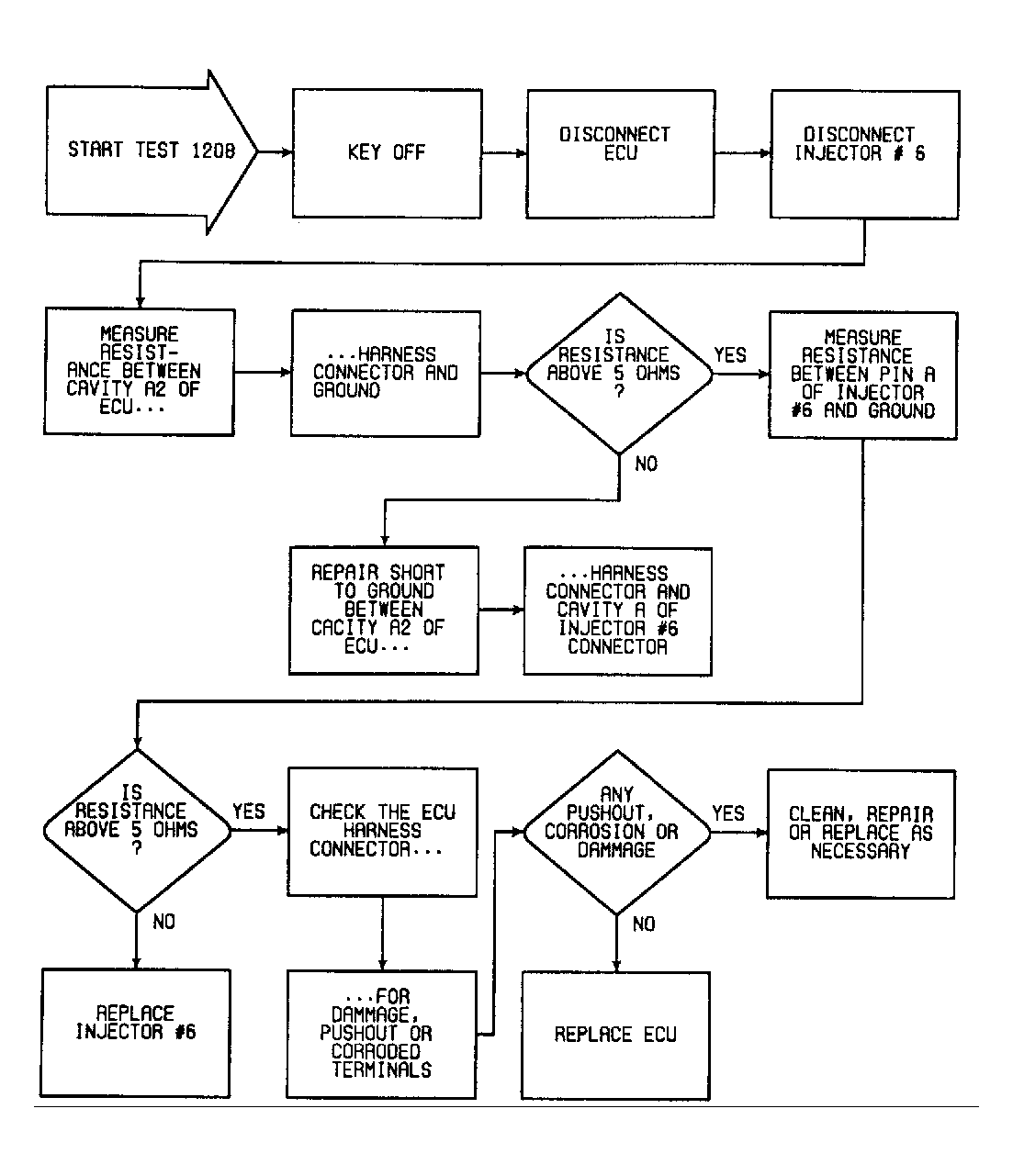

Fig 2: Fault 1208: Flow Chart No. 6 Injector Shorted to Ground

G90C17915
