Fault 1055: Coolant Temp Sensor Circuit High

Fig 1: Fault 1055: Circuit Diagram Coolant Temp Sensor Circuit High
G90F17819

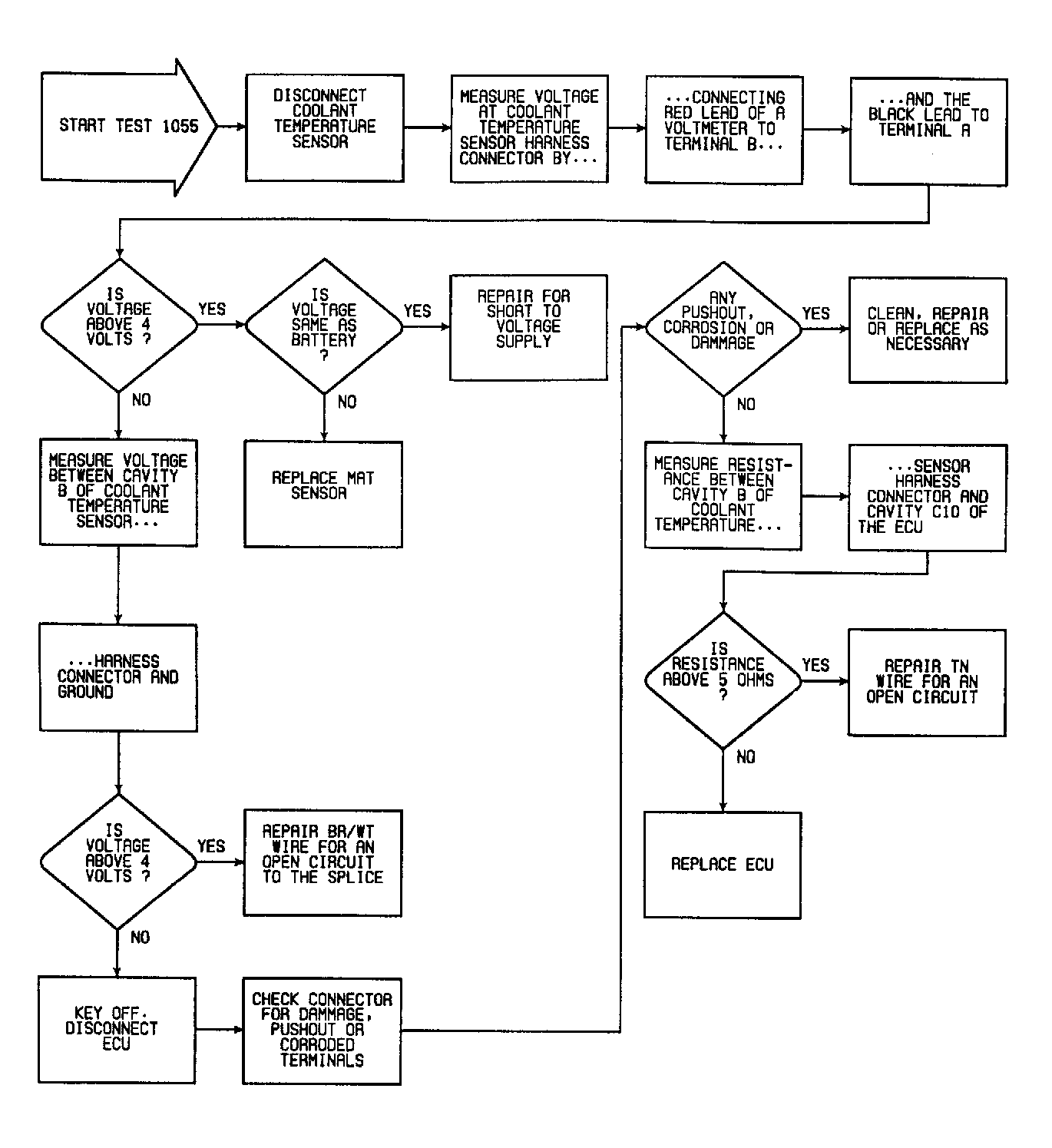

Fig 2: Fault 1055: Flow Chart Coolant Temp Sensor Circuit High
G90C17873
