Fault 1037: Throttle Position Sensor (TPS) Circuit Low

Fig 1: Fault 1037: Circuit Diagram TPS Circuit Low (For 1 of 3)

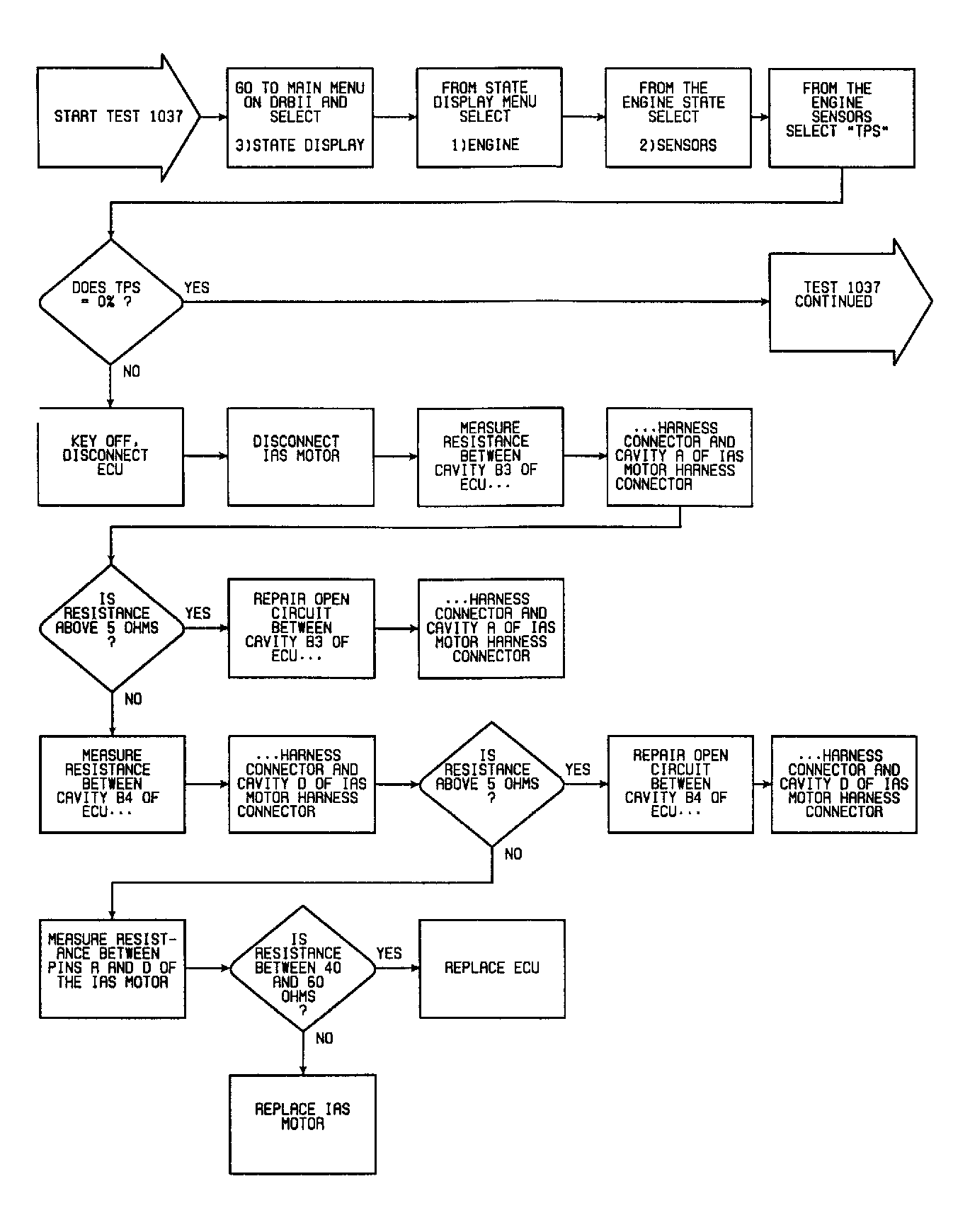

Fig 2: Fault 1037: Flow Chart TPS Circuit Low (1 of 3)

Fig 3: Fault 1037: Circuit Diagram TPS Circuit Low (For 2 & 3 of 3)

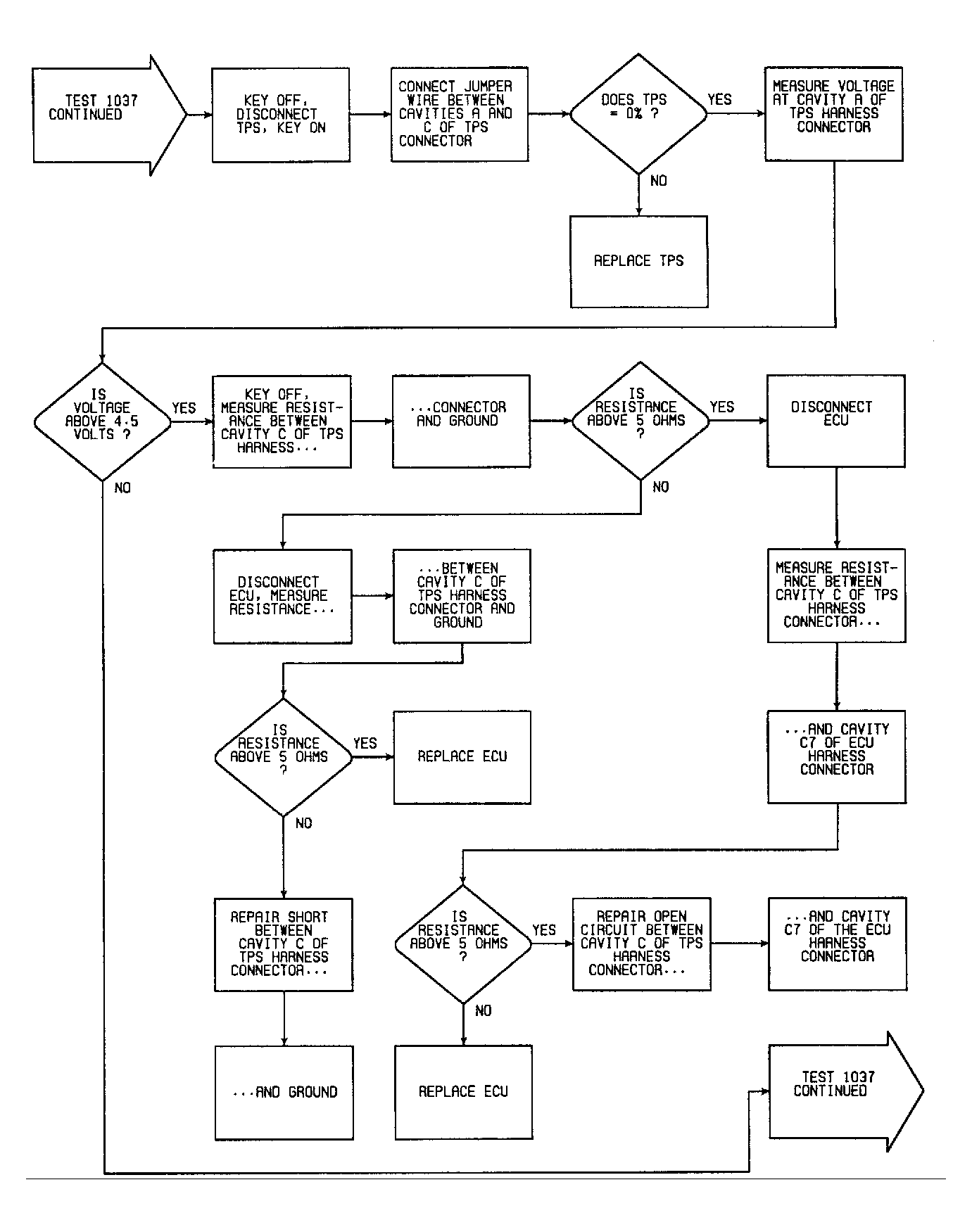

Fig 4: Fault 1037: Flow Chart TPS Circuit Low (2 of 3)

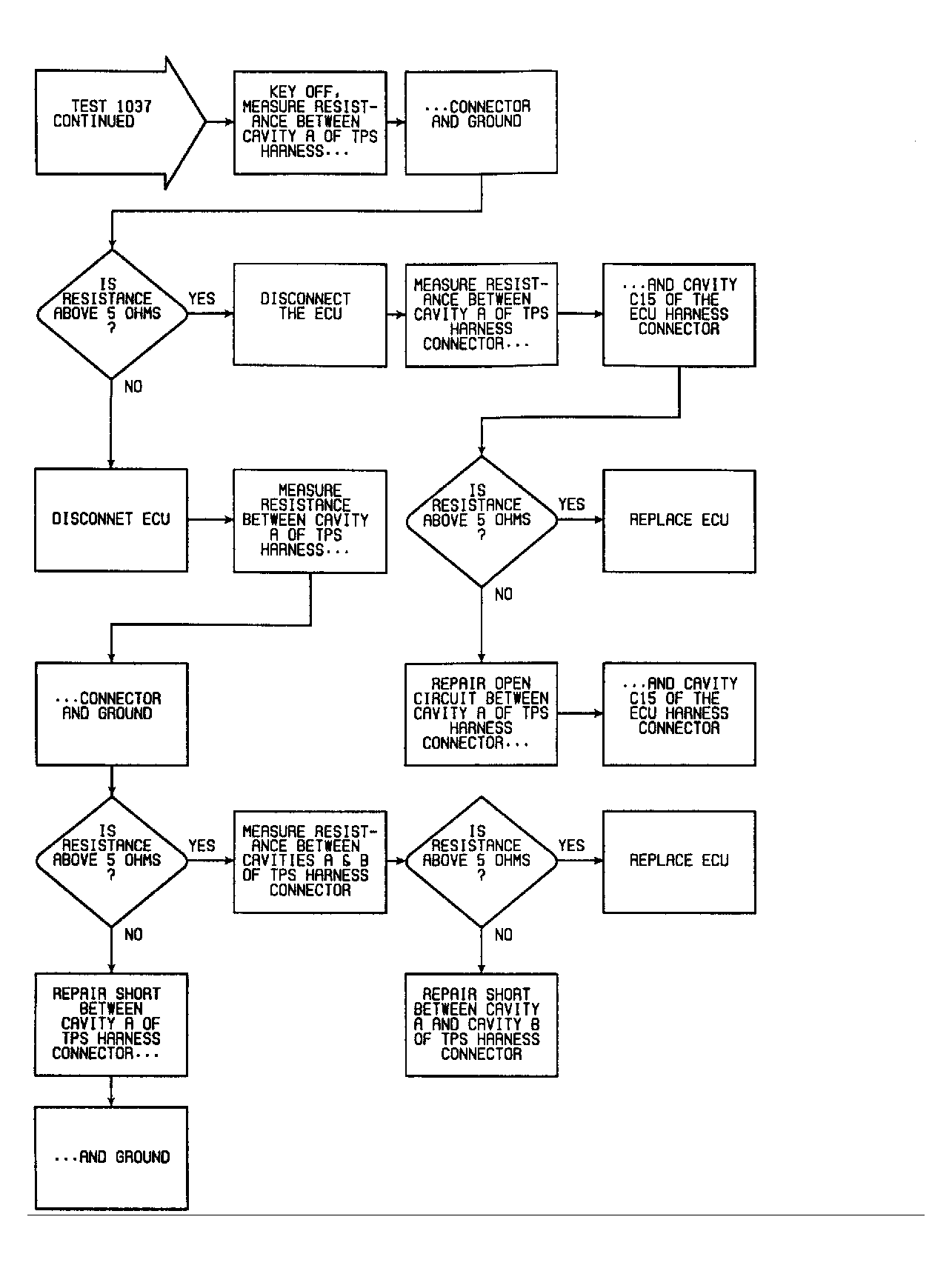

Fig 5: Fault 1037: Flow Chart TPS Circuit Low (3 of 3)
