Code 804 - "Yellow" Light Off

Fig 1: ABS Module Connector

G93A45559

Fig 2: Yellow Light Relay Connector

G93G45563

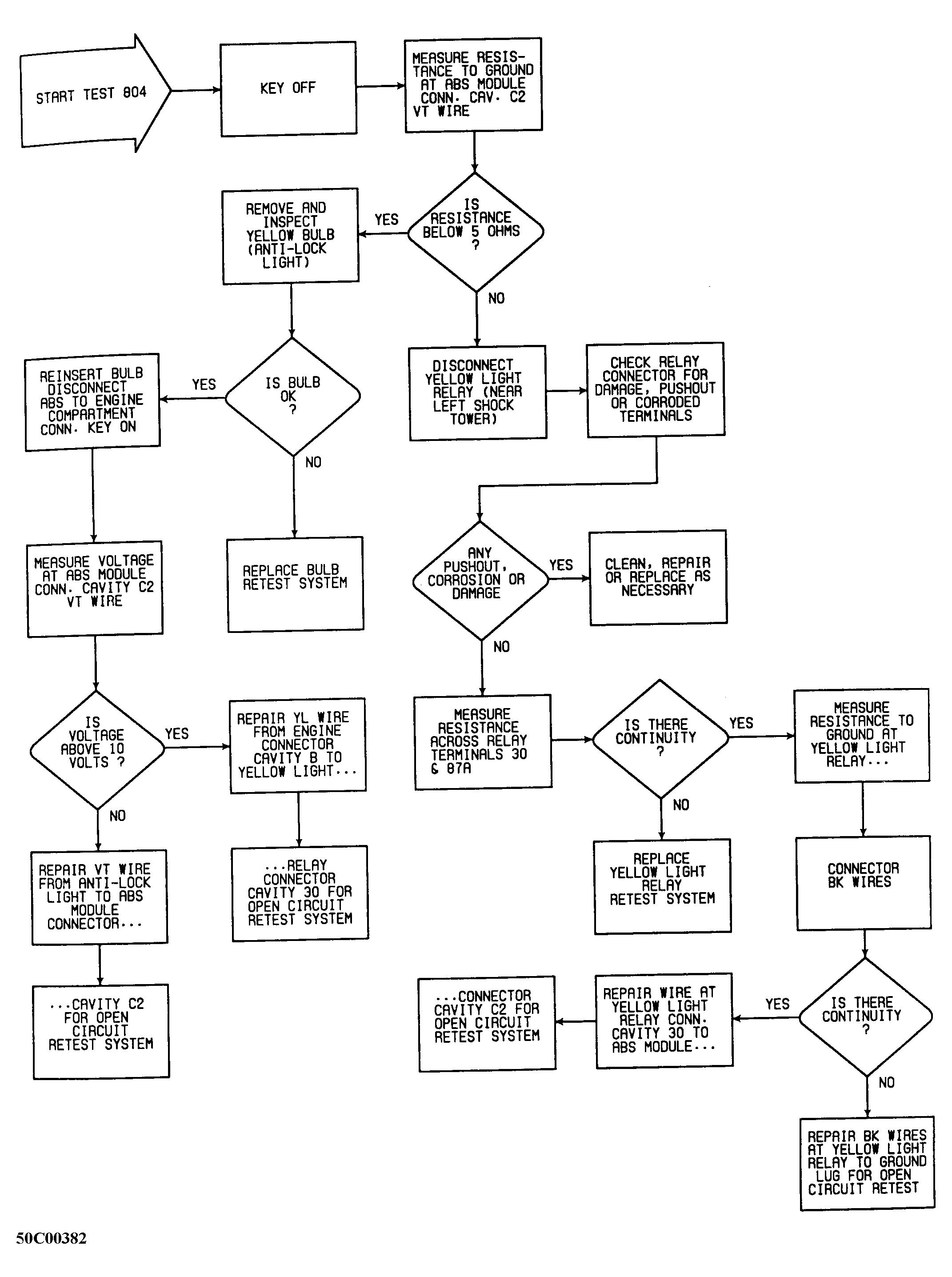

Fig 3: Fault 804: Yellow Light Off

G50C00382

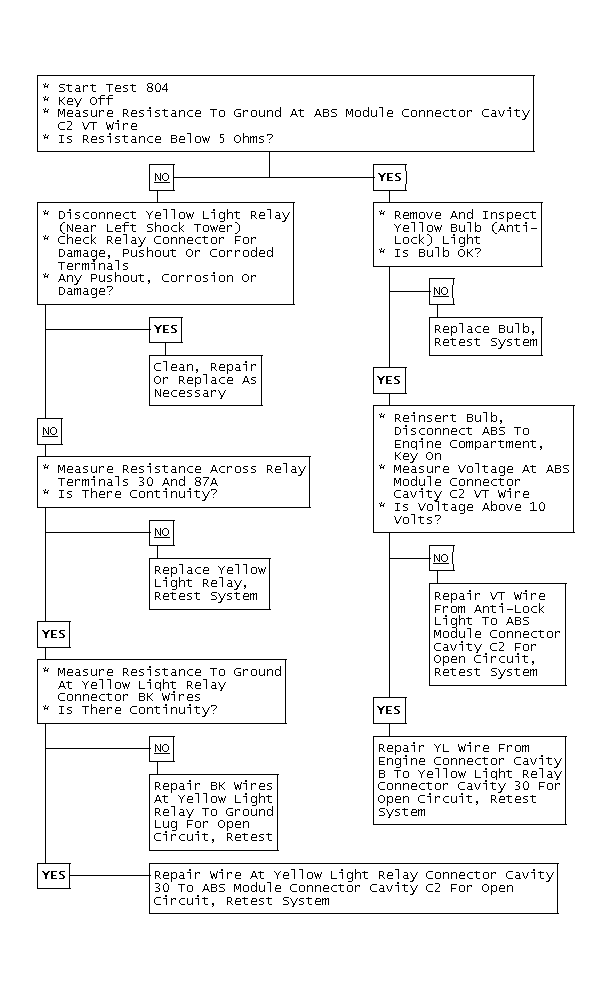

Fig 4: Fault 804: Yellow Light Off

GB0010711
