Code 817 - Right Front Wheel Speed Sensor Fault

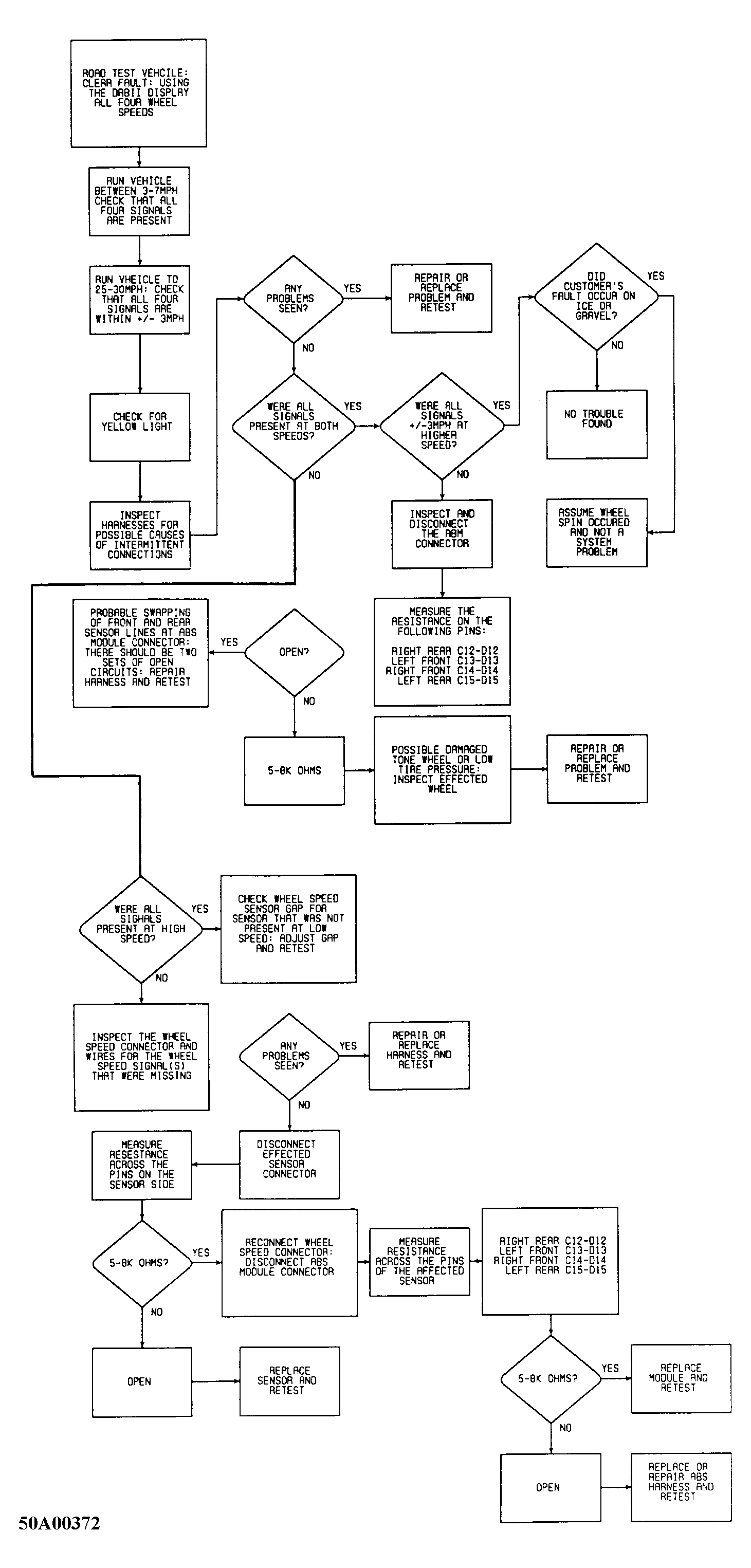

Fig 1: Code 817: Right Front Wheel Speed Sensor Fault

G50A00372

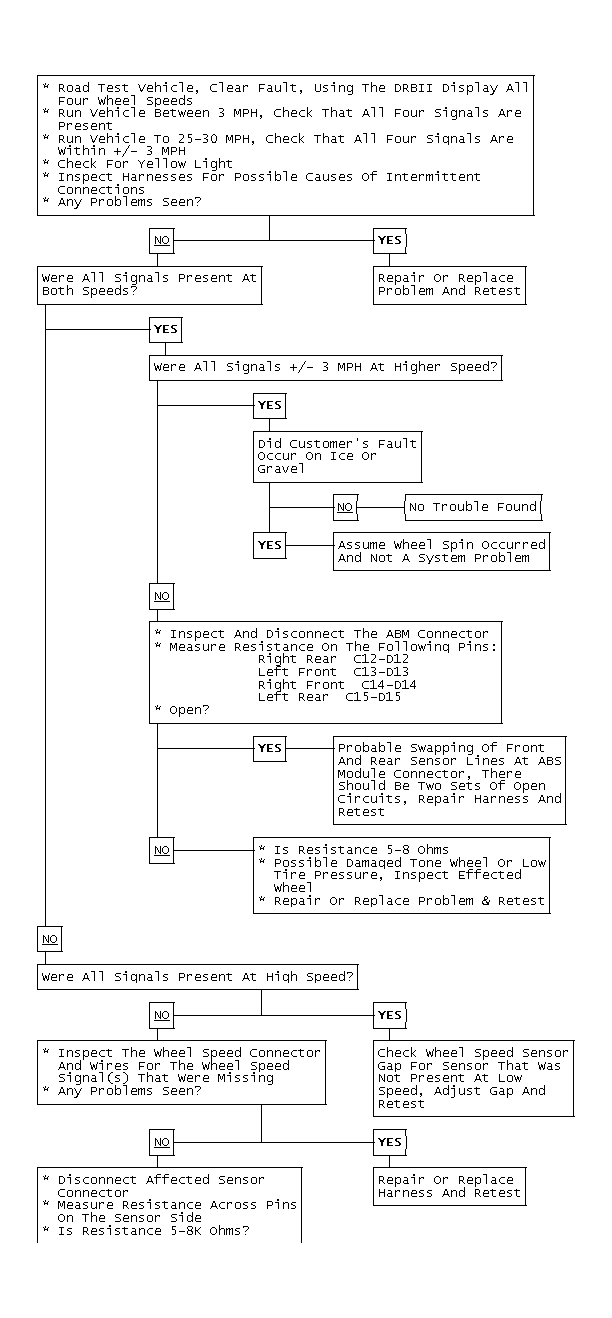

Fig 2: Code 817: Right Front Wheel Speed Sensor Fault

GB0010702
