Code 813 - Stoplight Circuit Fault

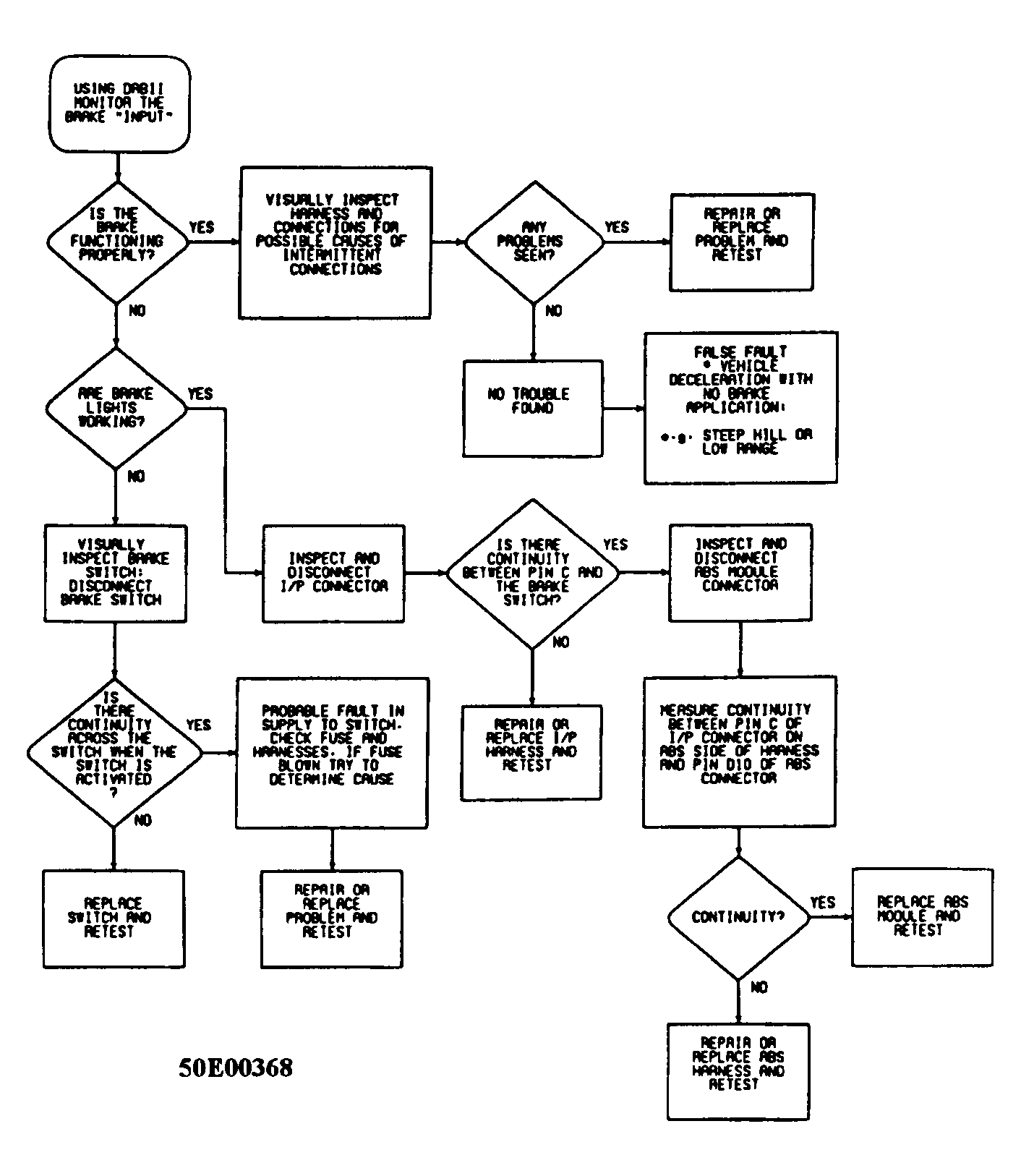

Fig 1: Code 813: Stoplight Circuit Fault

G50E00368

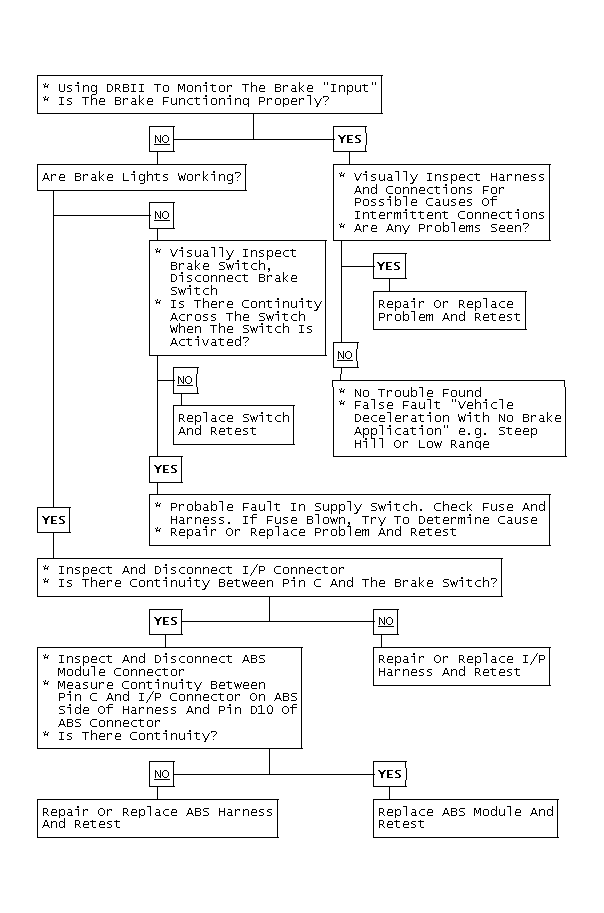

Fig 2: Code 813: Stoplight Circuit Fault

GB0010698
