Code 801 - No Serial Data From ECM

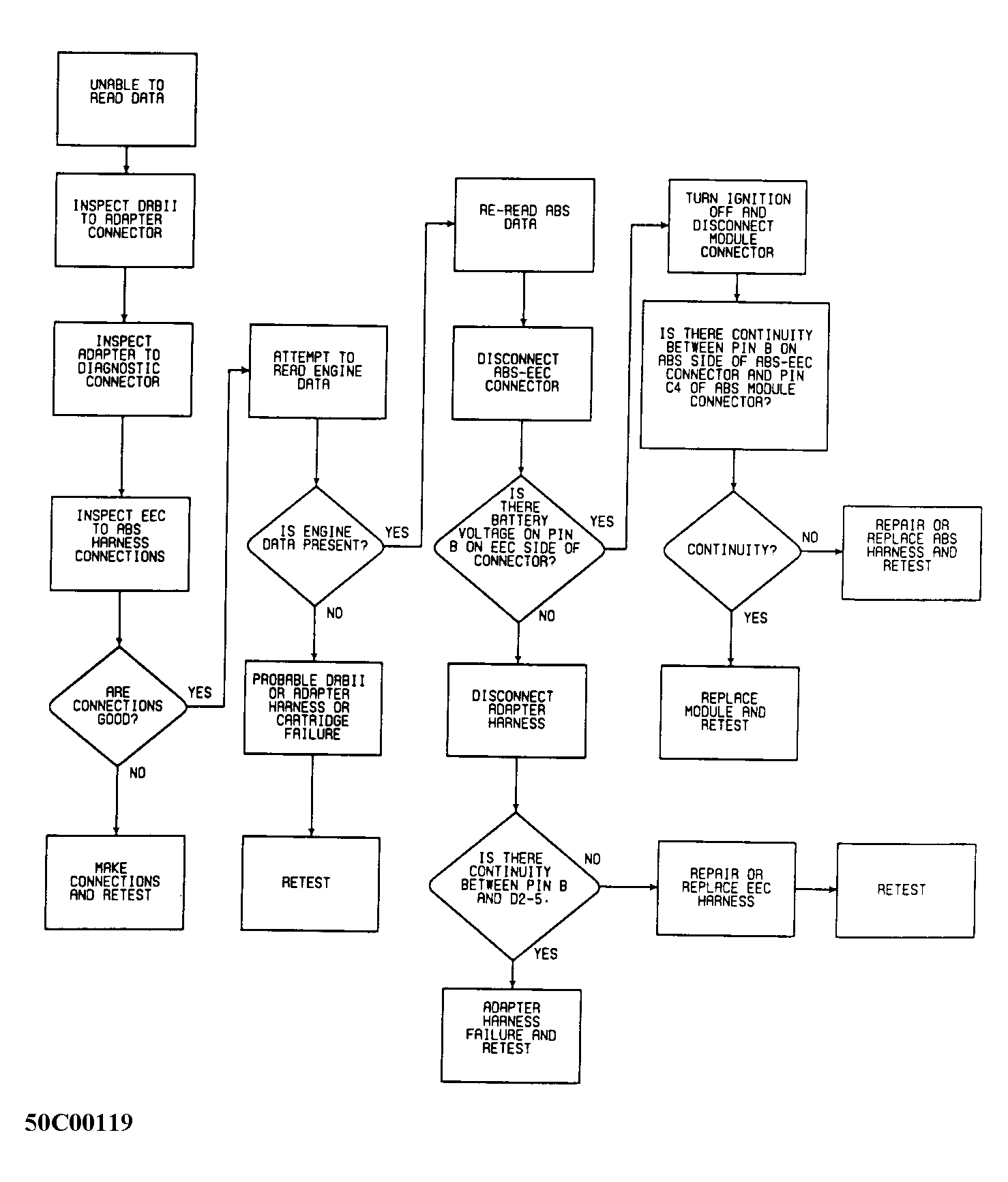

Fig 1: Code 801: No Serial Data From ECM

G50C00119

Fig 2: Code 801: No Serial Data From ECM

GB0010687
