Code 705: Throttle Position Sensor

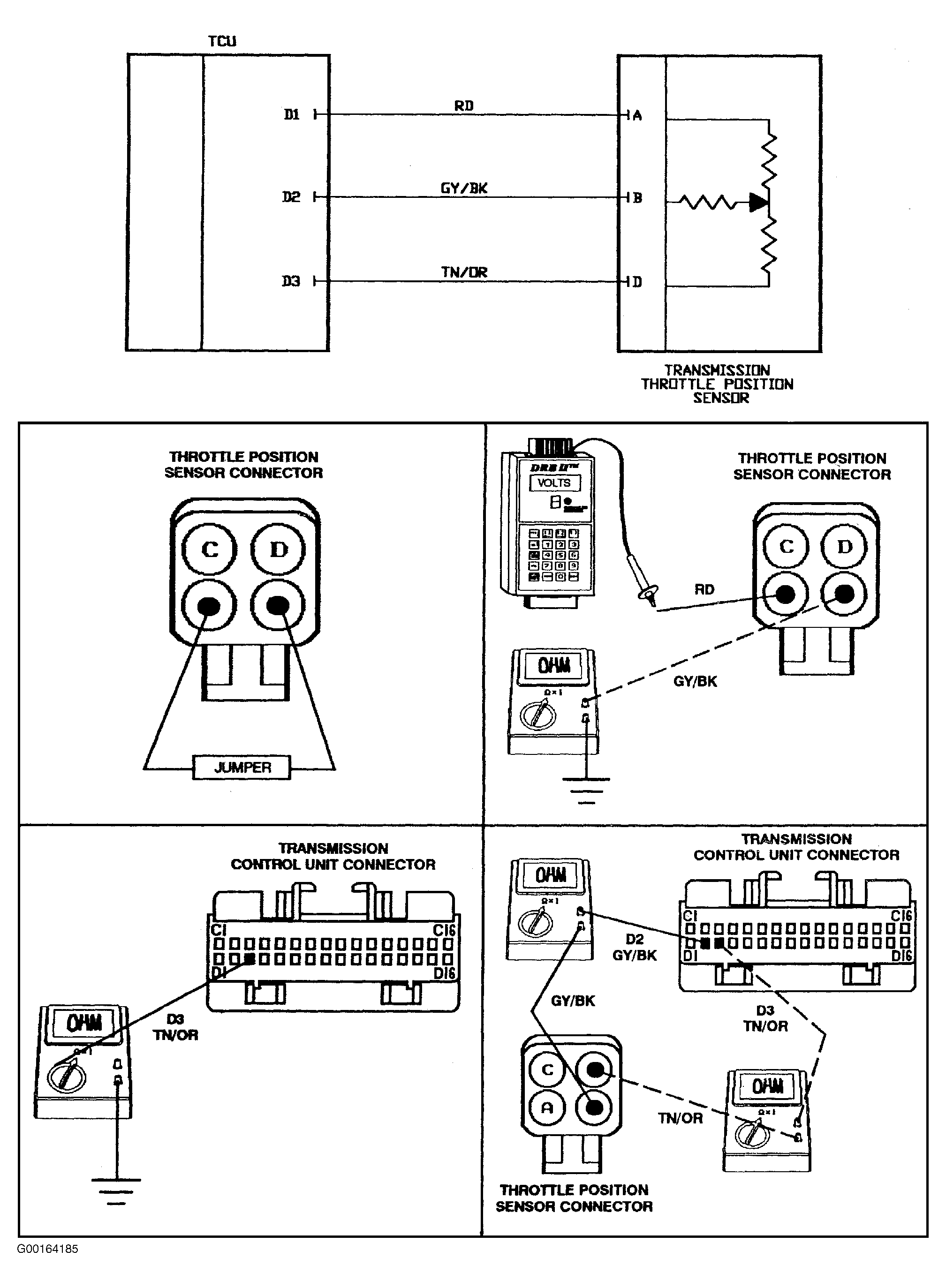

Fig 1: Code 705 - Throttle Position Sensor (1 Of 4)
G00164185Courtesy of CHRYSLER CORP.

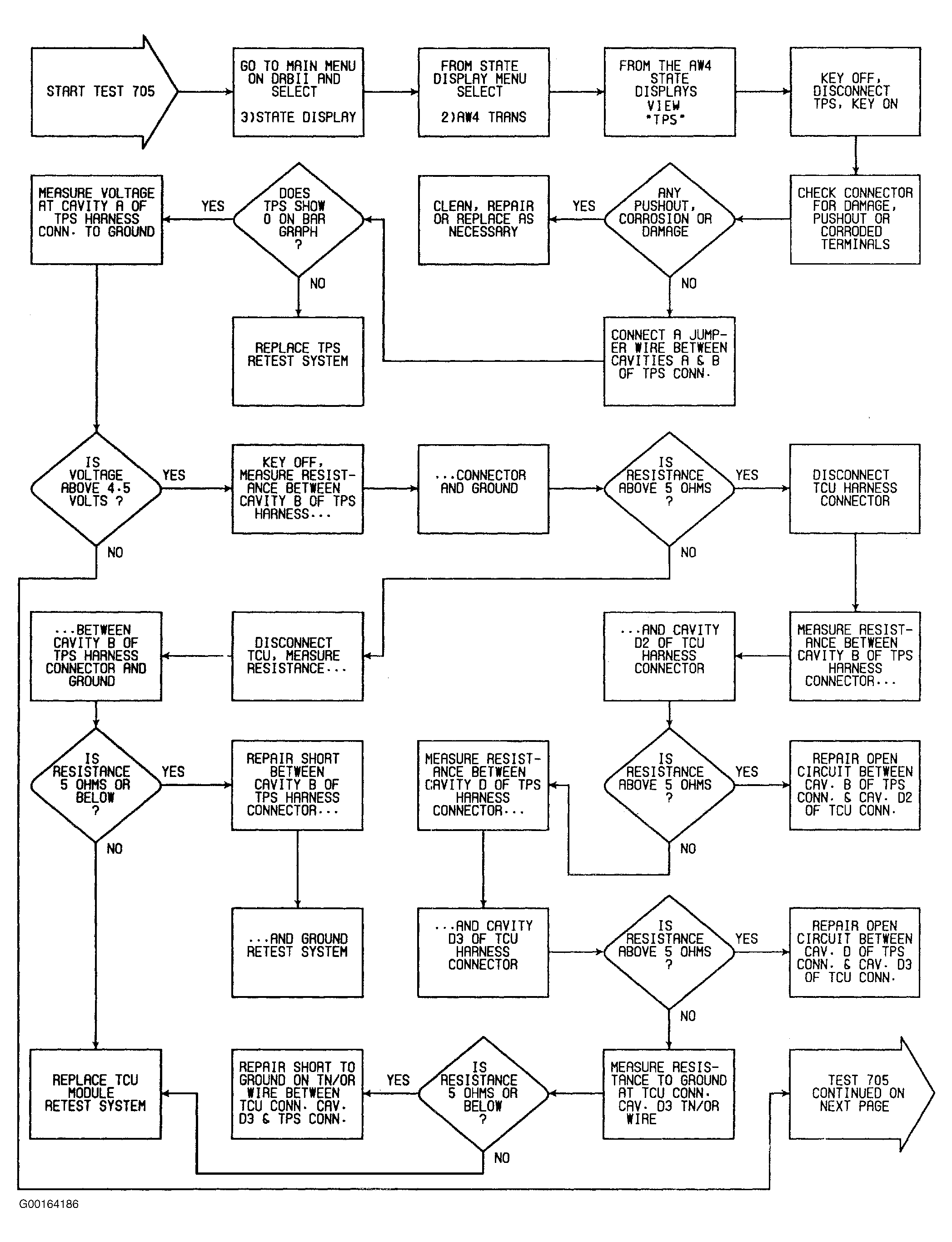

Fig 2: Code 705 - Throttle Position Sensor (2 Of 4)
G00164186Courtesy of CHRYSLER CORP.

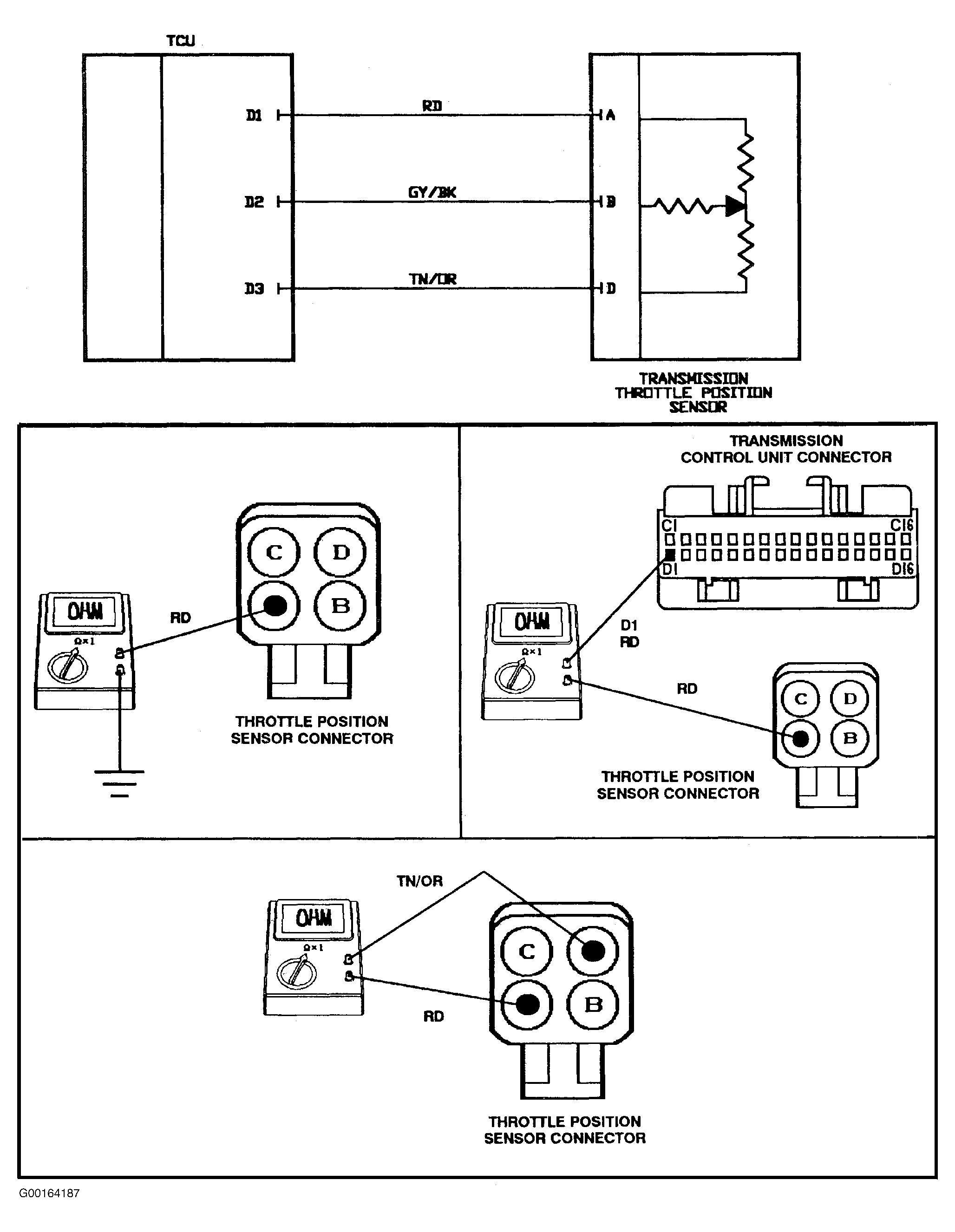

Fig 3: Code 705 - Throttle Position Sensor (3 Of 4)
G00164187Courtesy of CHRYSLER CORP.

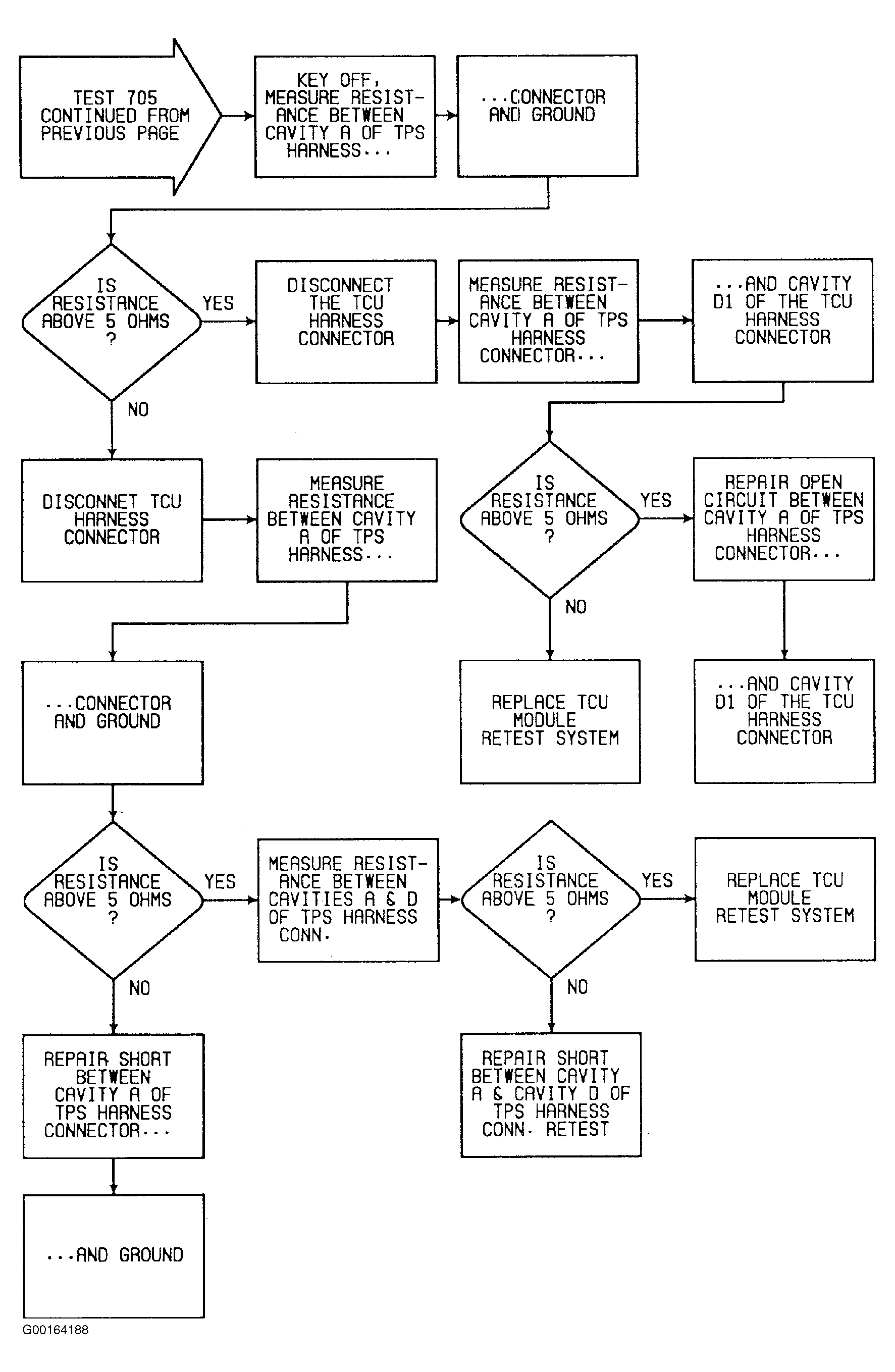

Fig 4: Code 705 - Throttle Position Sensor (4 Of 4)
G00164188Courtesy of CHRYSLER CORP.
