Code 802 - Parking Brake Not Seen

Fig 1: ABS Module Connector

G93A45559

Fig 2: Low Fluid Switch Connector

G93E45561

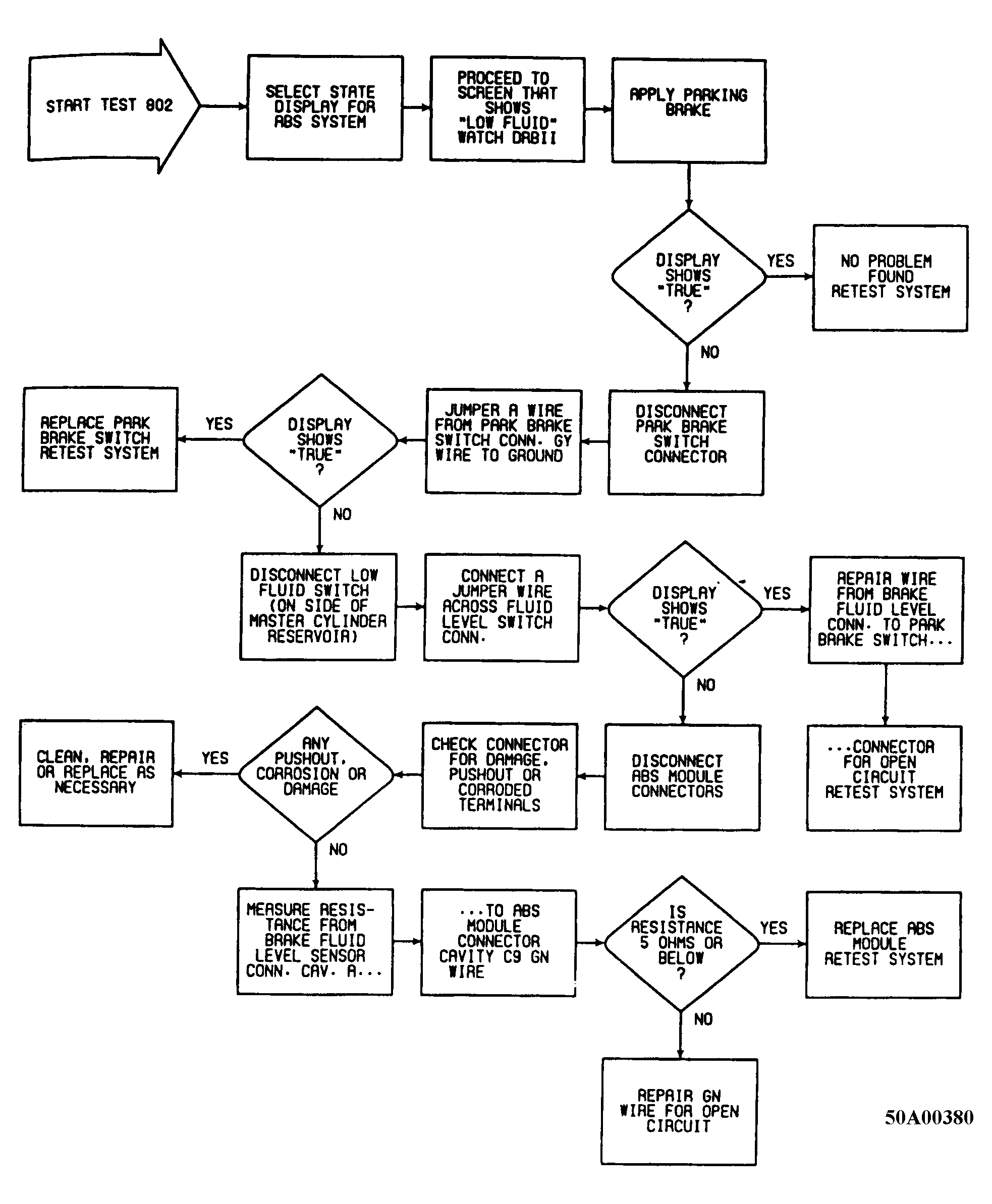

Fig 3: Fault 802: Parking Brake Not Seen

G50A00380

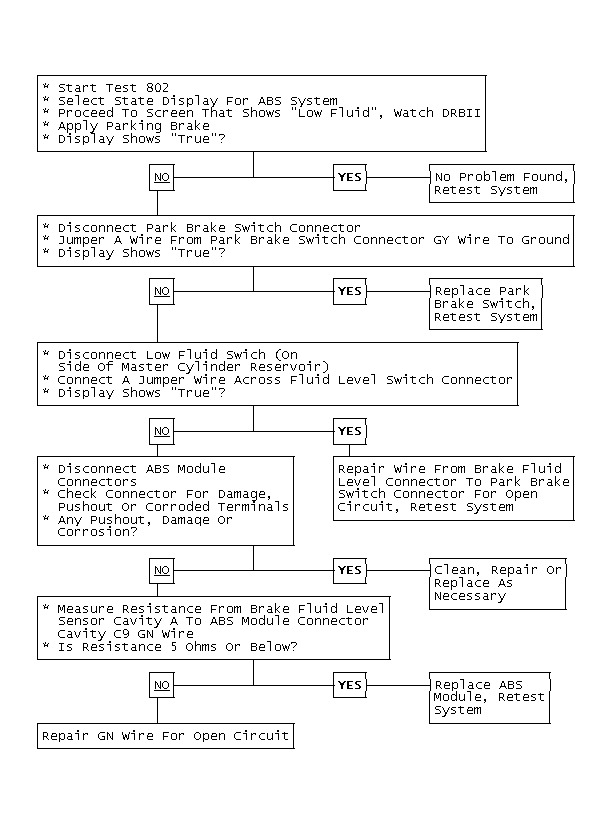

Fig 4: Fault 802: Parking Brake Not Seen

GB0010709
