Code 807 - Low Accumulator Pressure

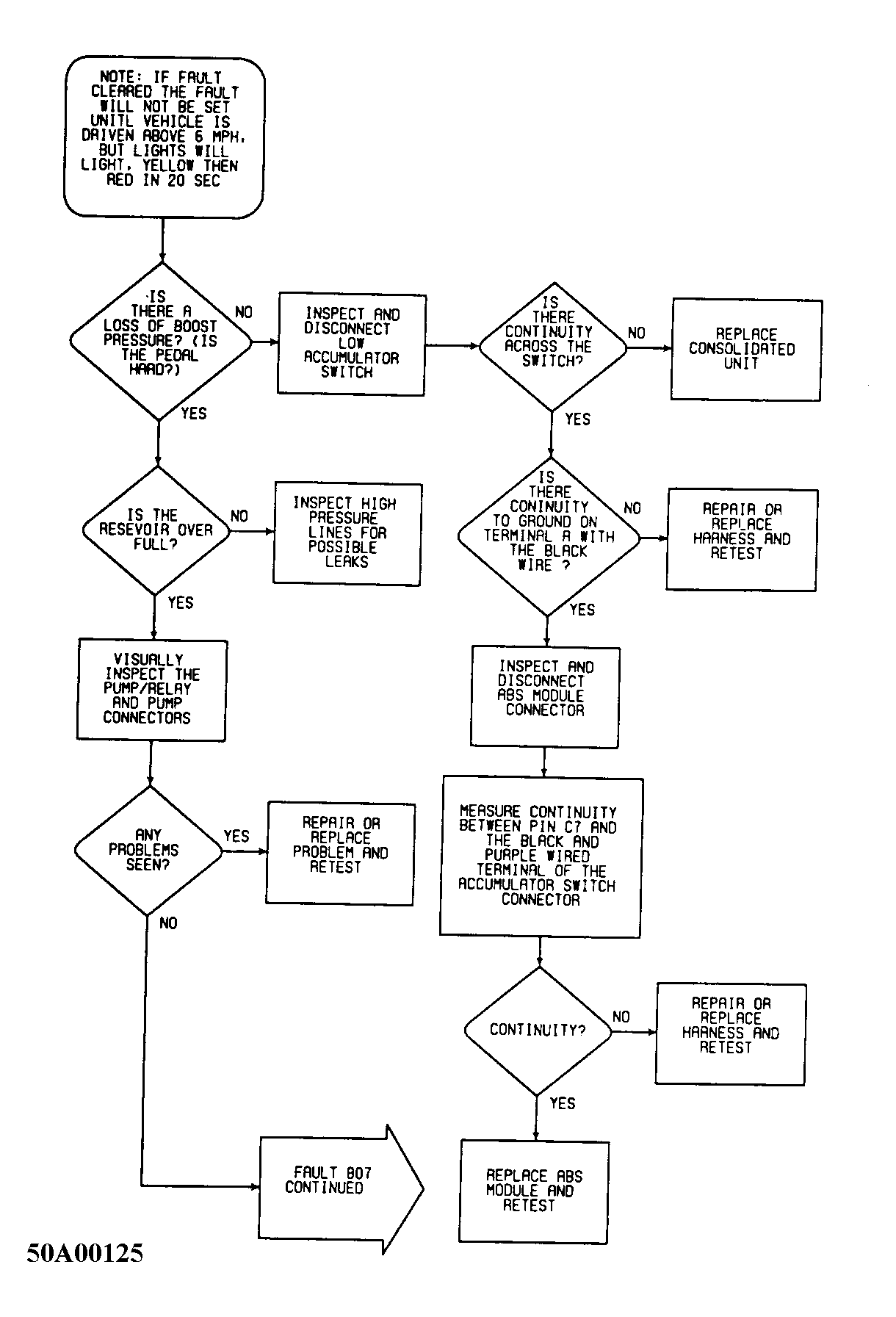

Fig 1: Code 807: Low Accumulator Pressure (1 Of 2)

G50A00125

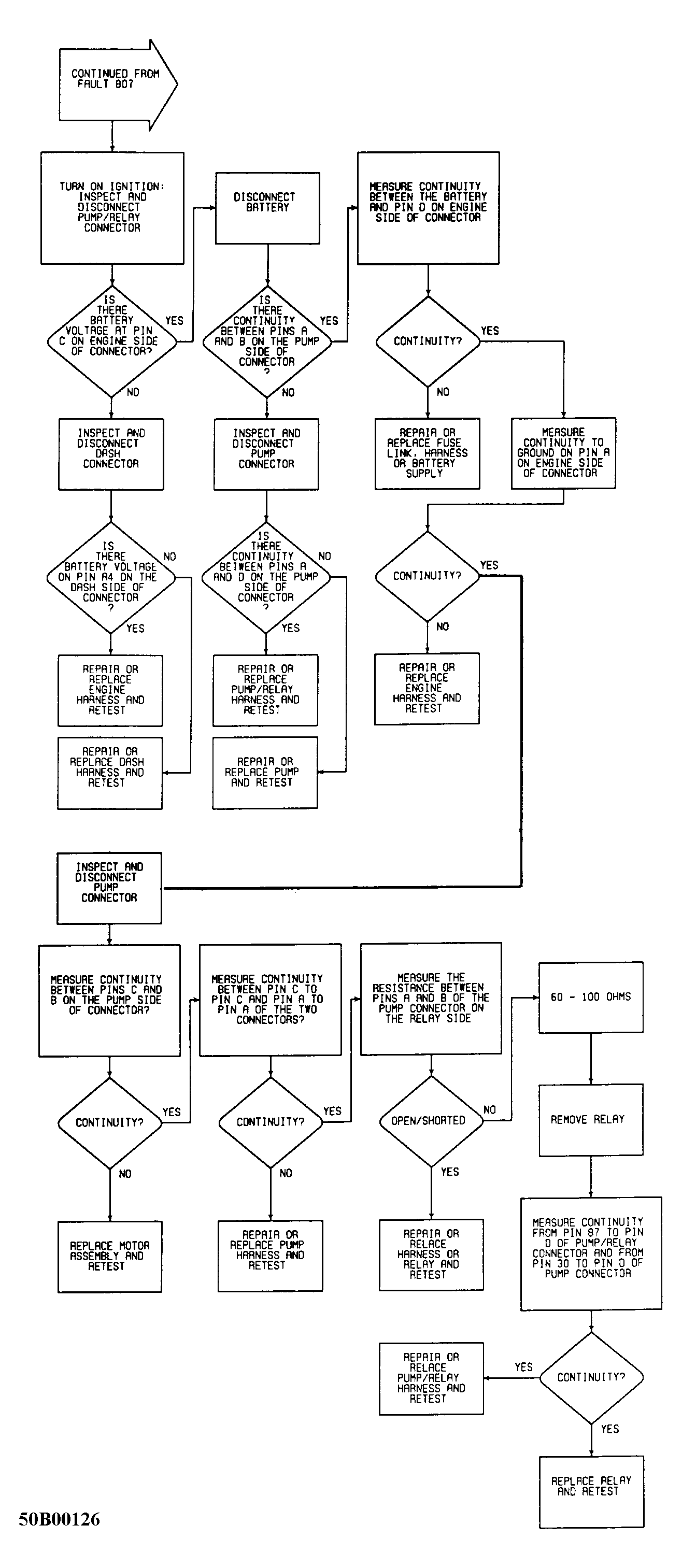

Fig 2: Code 807: Low Accumulator Pressure (2 Of 2)

G50B00126

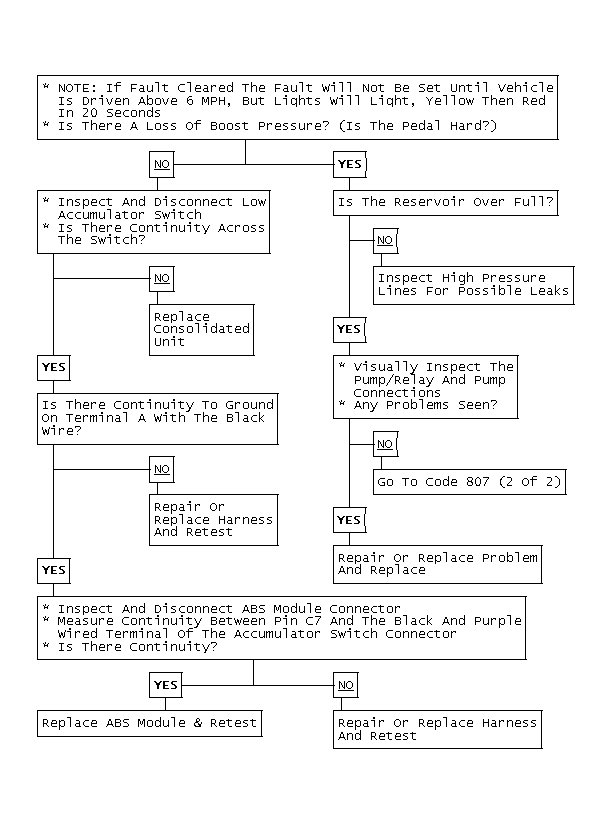

Fig 3: Code 807: Low Accumulator Pressure

GB0010693
