Fault 1207: Injector No. 5 Shorted To Ground

Fig 1: Fault 1207: Circuit Diagram No. 5 Injector Shorted to Ground

G90F17835

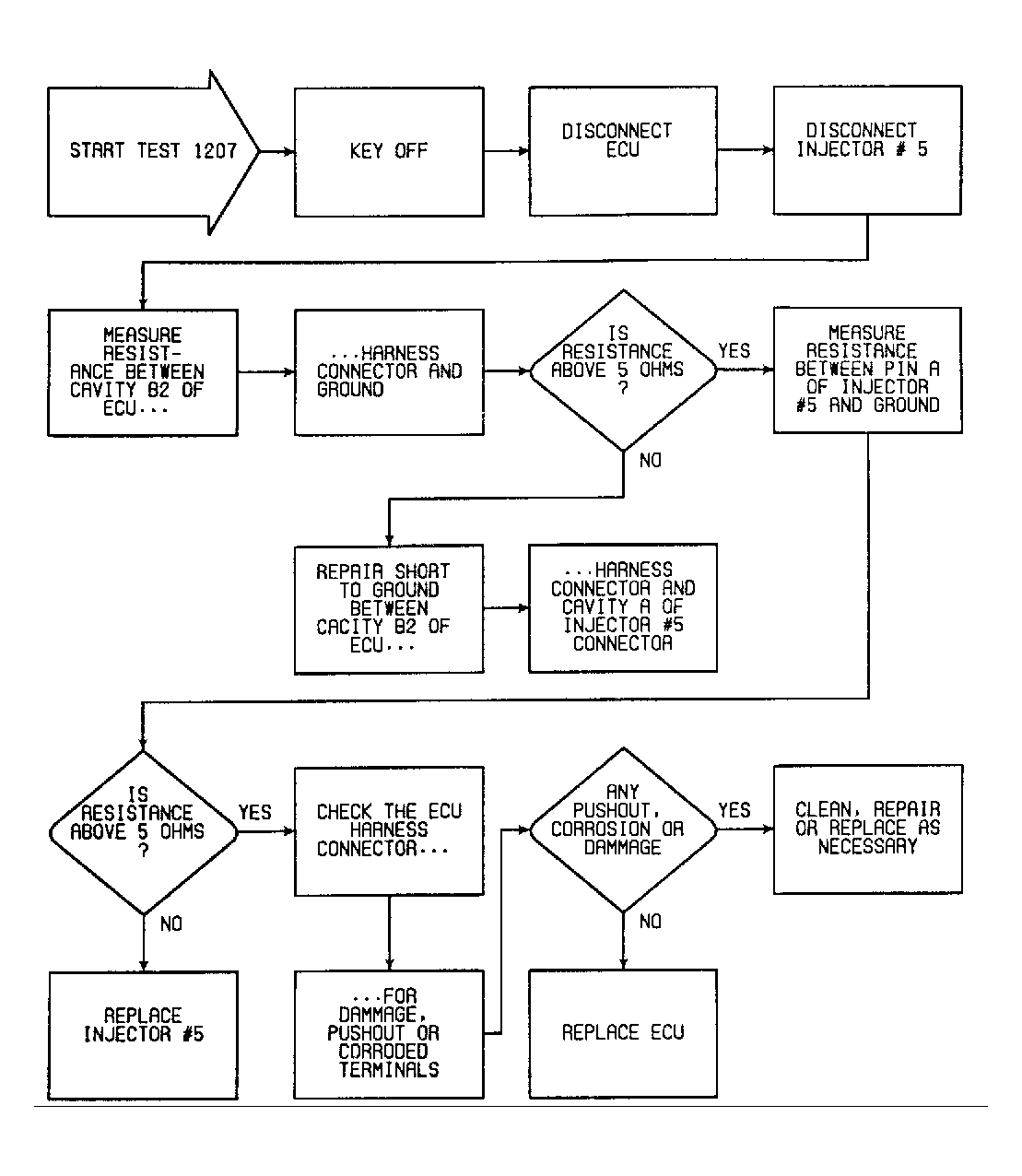

Fig 2: Fault 1207: Flow Chart No. 5 Injector Shorted to Ground

G90B17914
