Fault 1222: Ignition Module (MPA) Not Grounded

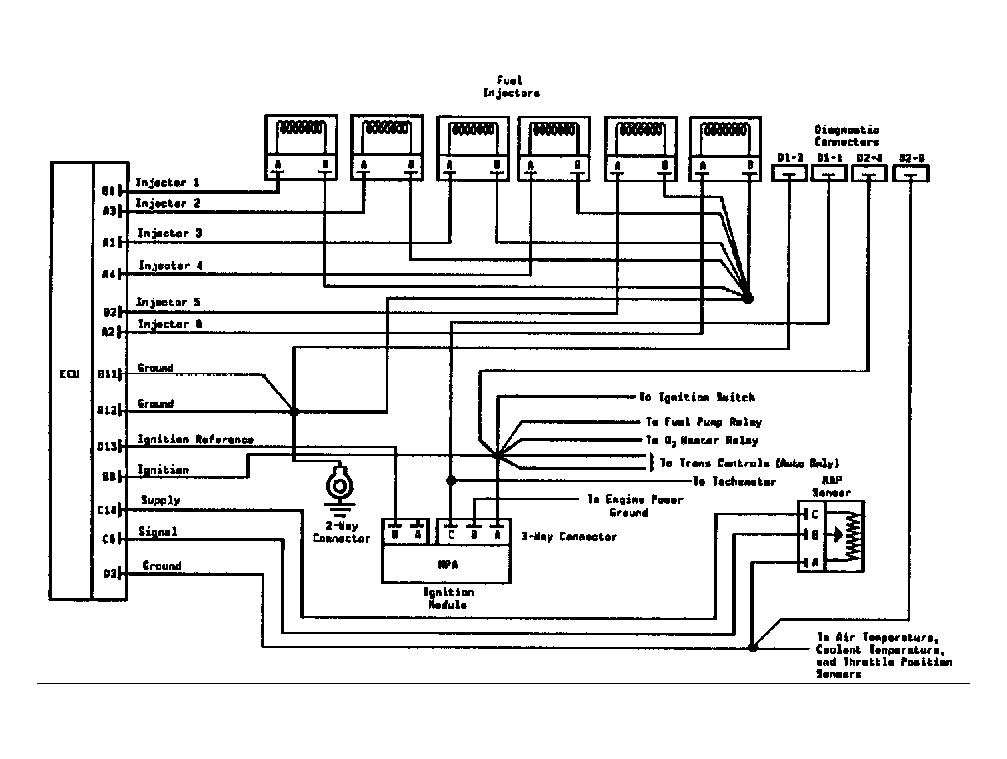

Fig 1: Fault 1222: Circuit Diagram Ignition Module Not Grounded

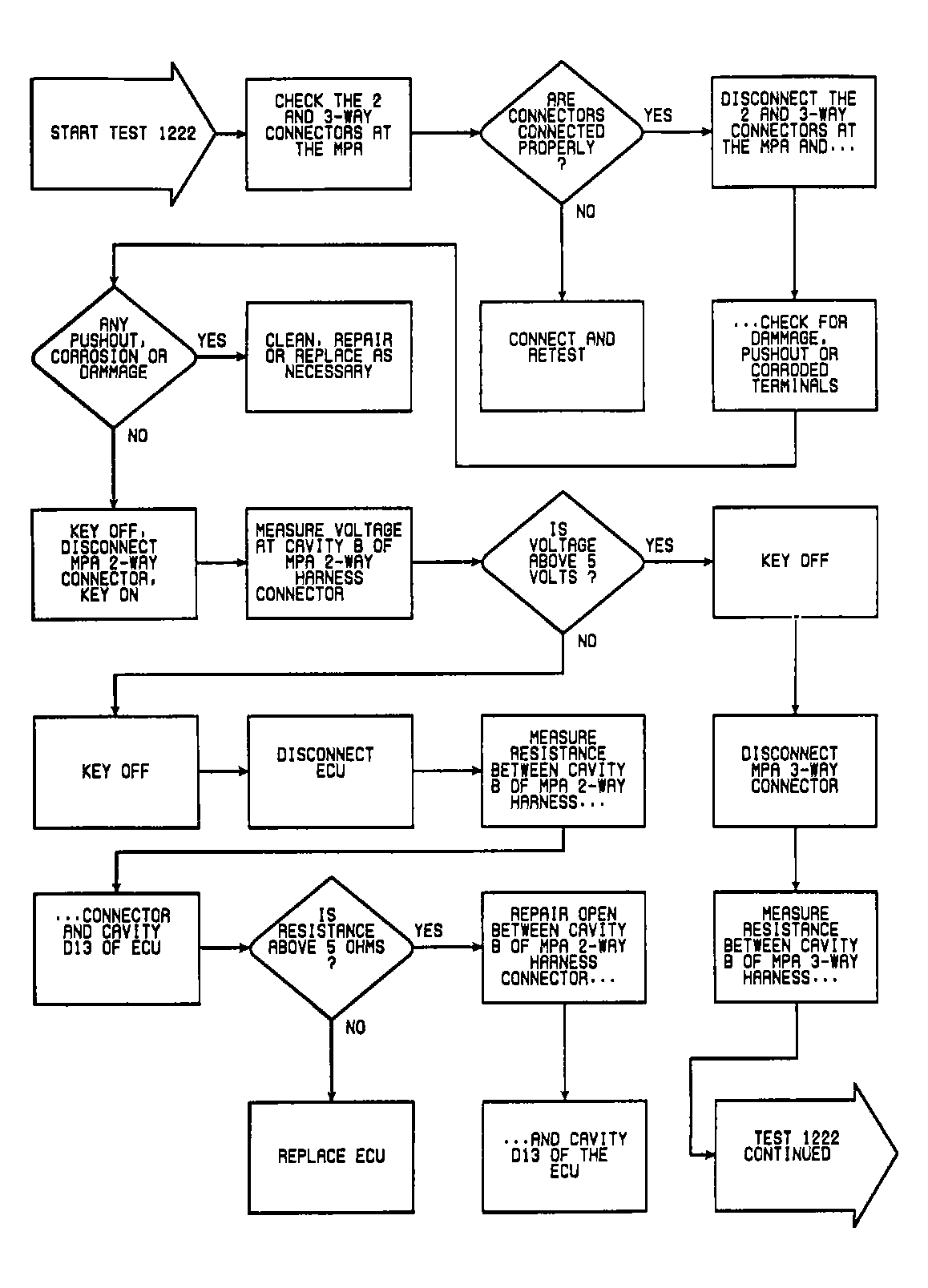

Fig 2: Fault 1222: Flow Chart Ignition Module Not Grounded (1 of 2)

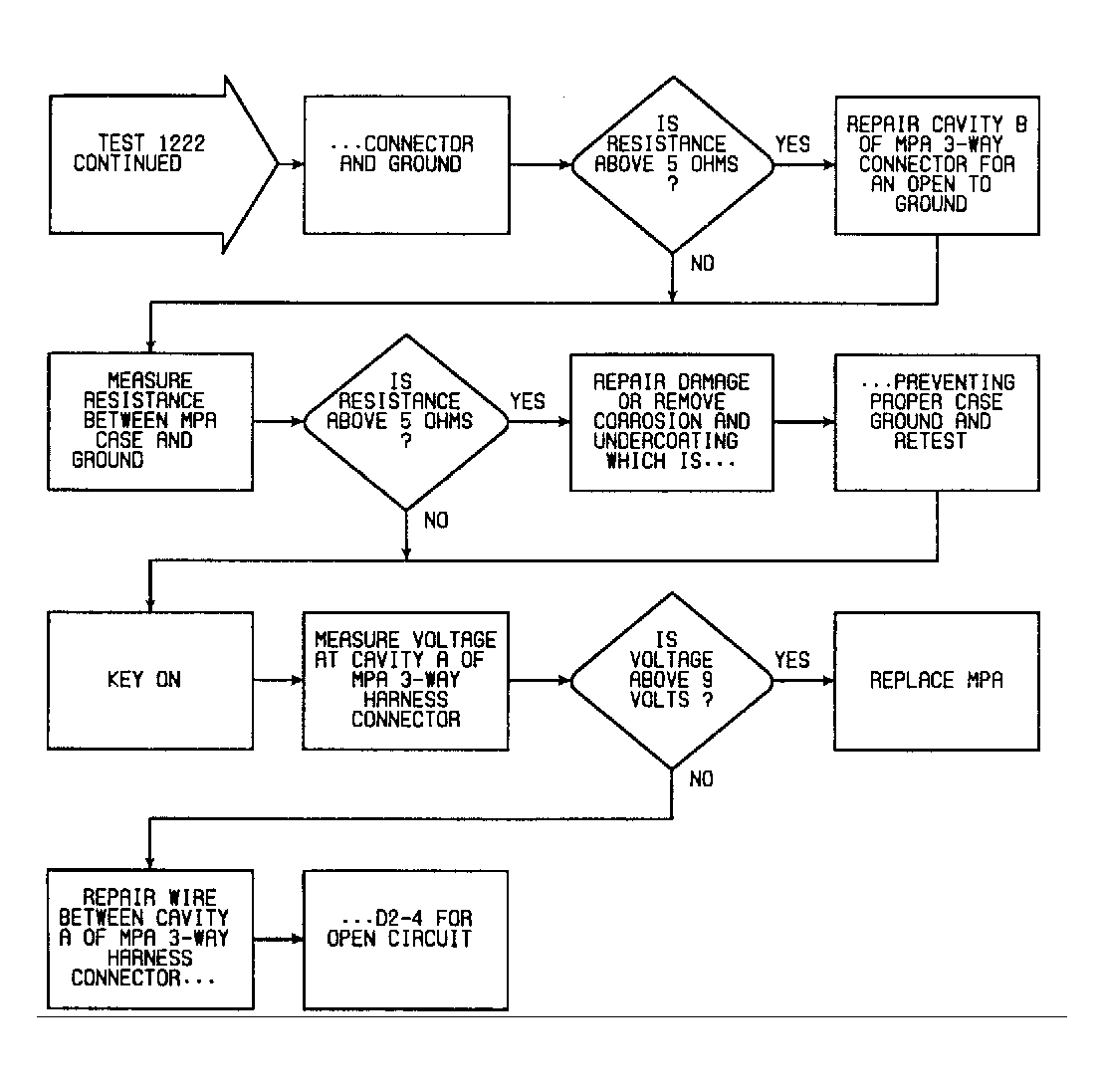

Fig 3: Fault 1222: Flow Chart Ignition Module Not Grounded (2 of 2)
