Fault 1211: Injector No. 2 Circuit Open

Fig 1: Fault 1211: Circuit Diagram No. 2 Injector Circuit Open
G90F17835

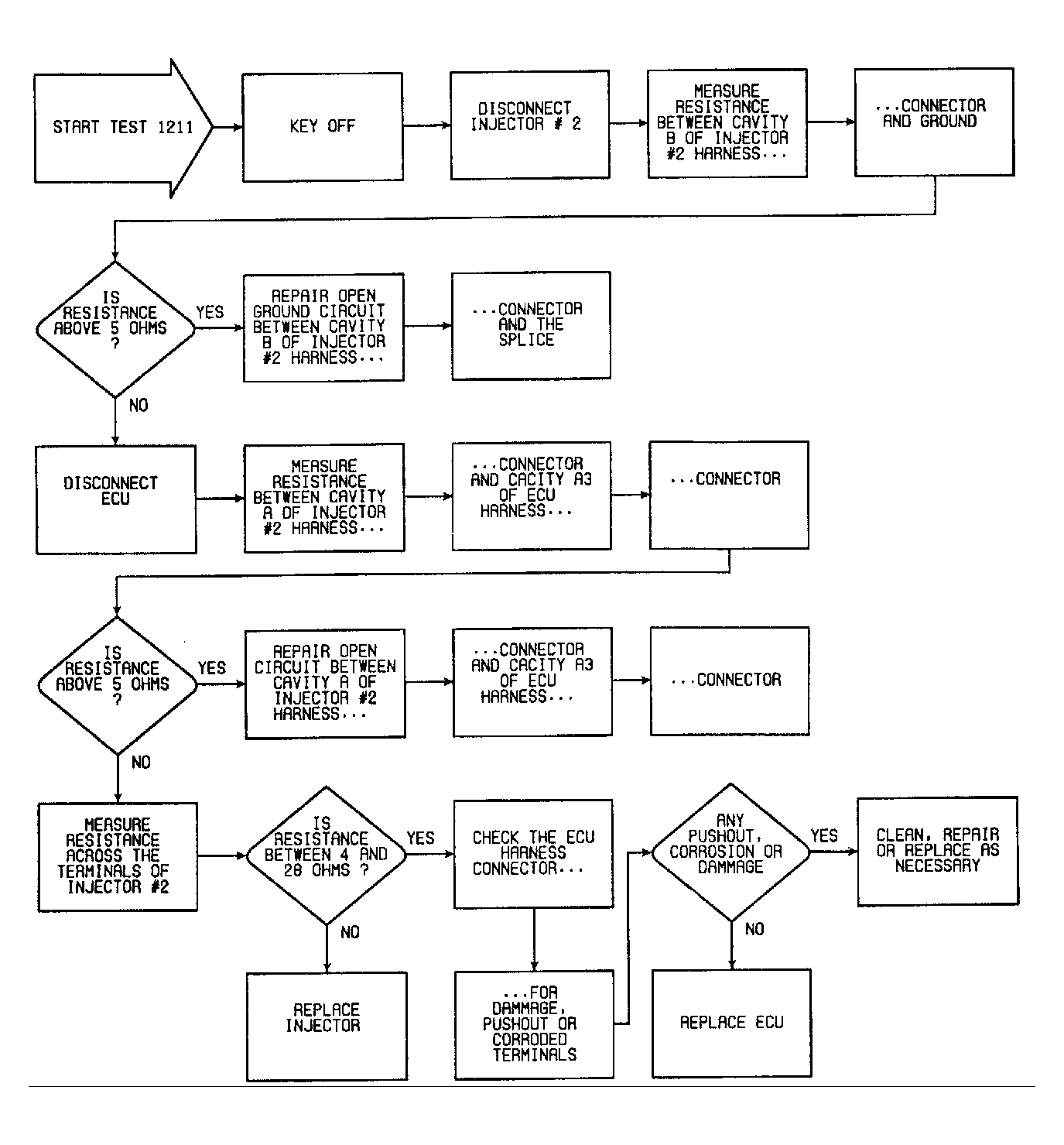

Fig 2: Fault 1211: Flow Chart No. 2 Injector Circuit Open
G90C17923
