Engine Controls - Tests W/Codes - 4.0L
>>
Code Charts
>>
Fault 1210: Injector No. 1 Circuit Open
Fault 1210: Injector No. 1 Circuit Open
Fig 1: Fault 1210: Circuit Diagram No. 1 Injector Circuit Open

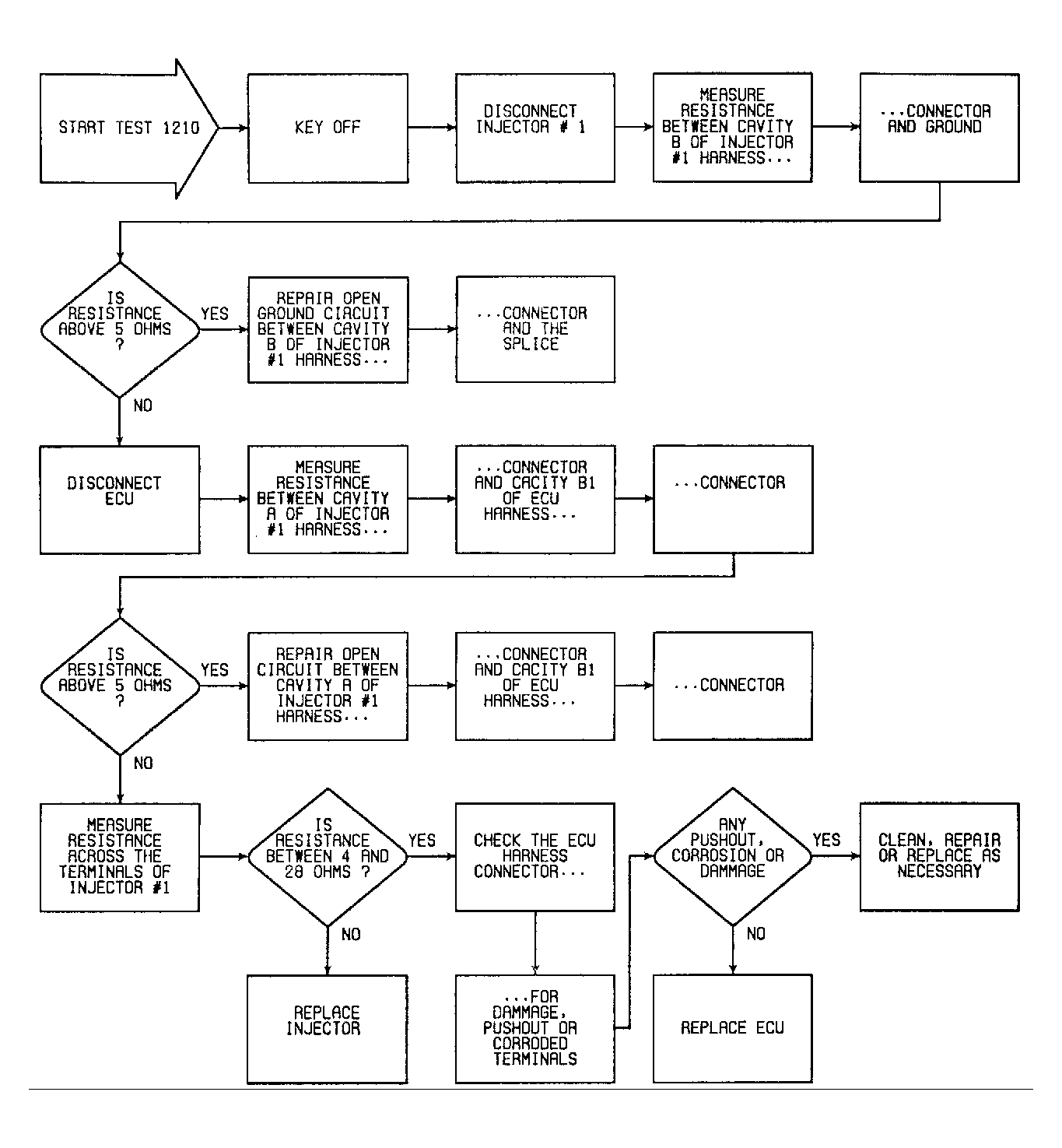

Fig 2: Fault 1210: Flow Chart No. 1 Injector Circuit Open
