Fault 1202: All Injectors Shorted To Ground

Fig 1: Fault 1202: Circuit Diagram All Injectors Shorted to Ground

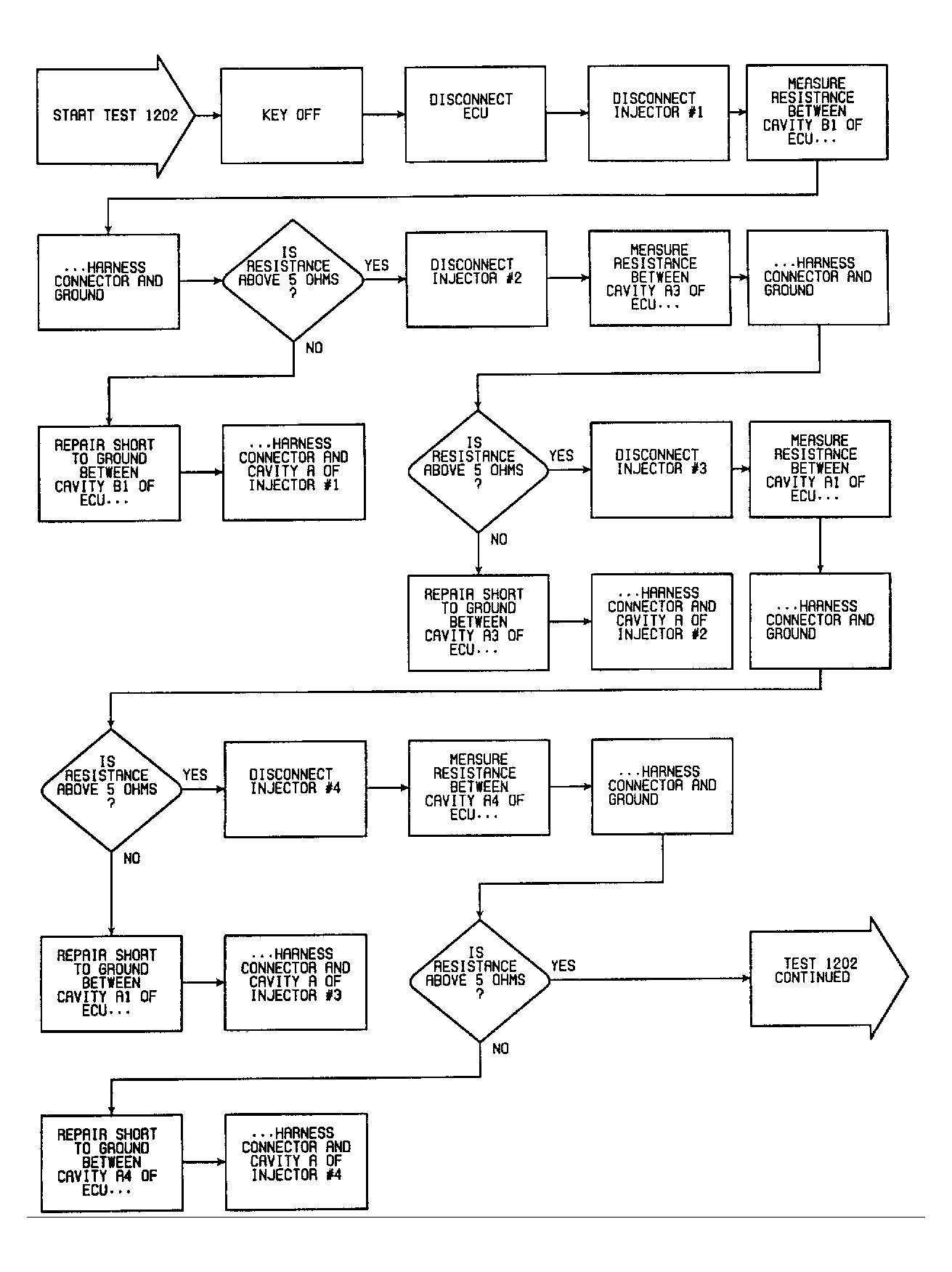

Fig 2: Fault 1202: Flow Chart All Injectors Shorted to Ground (1 of 3)

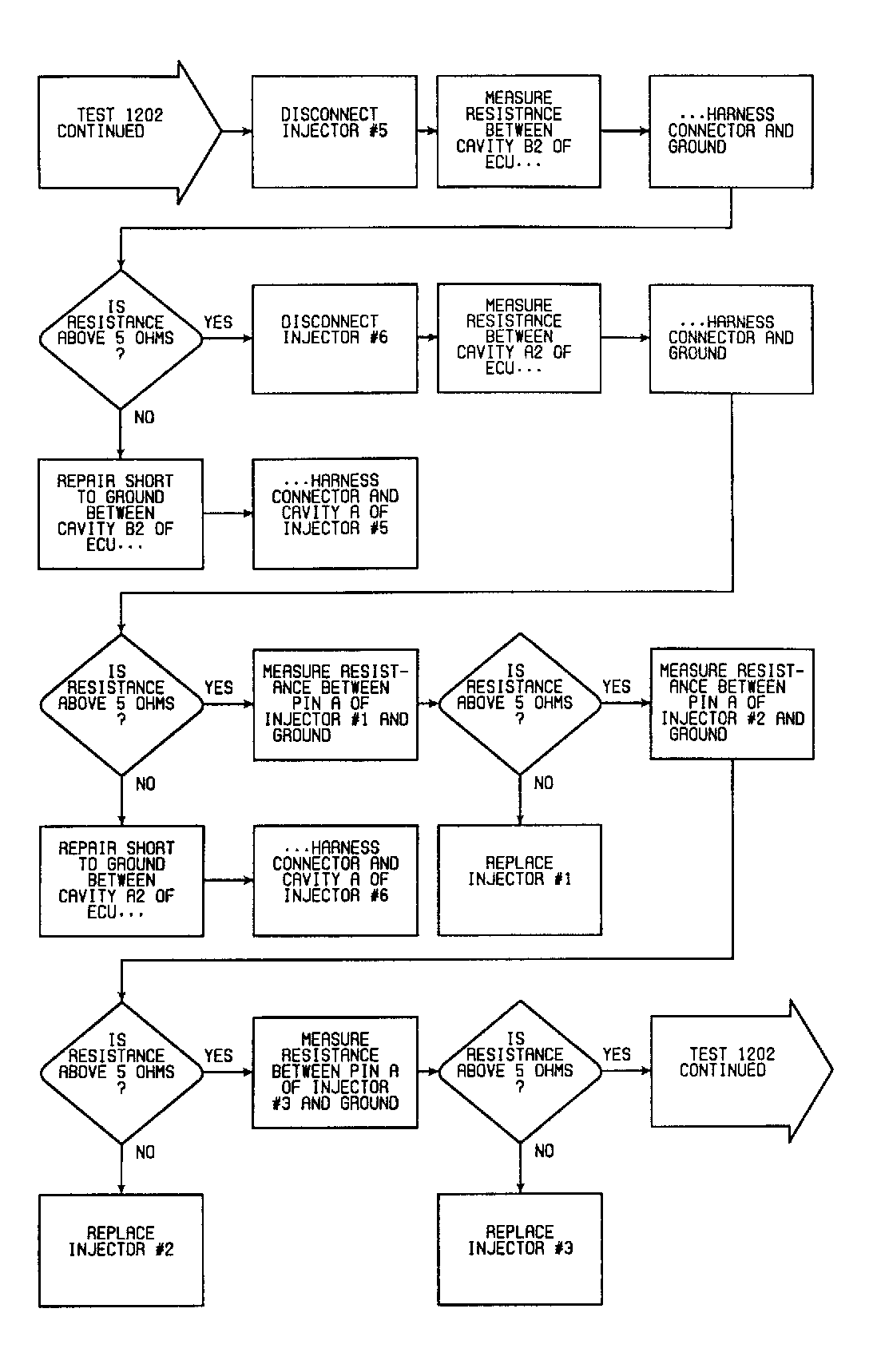

Fig 3: Fault 1202: Flow Chart All Injectors Shorted to Ground (2 of 3)

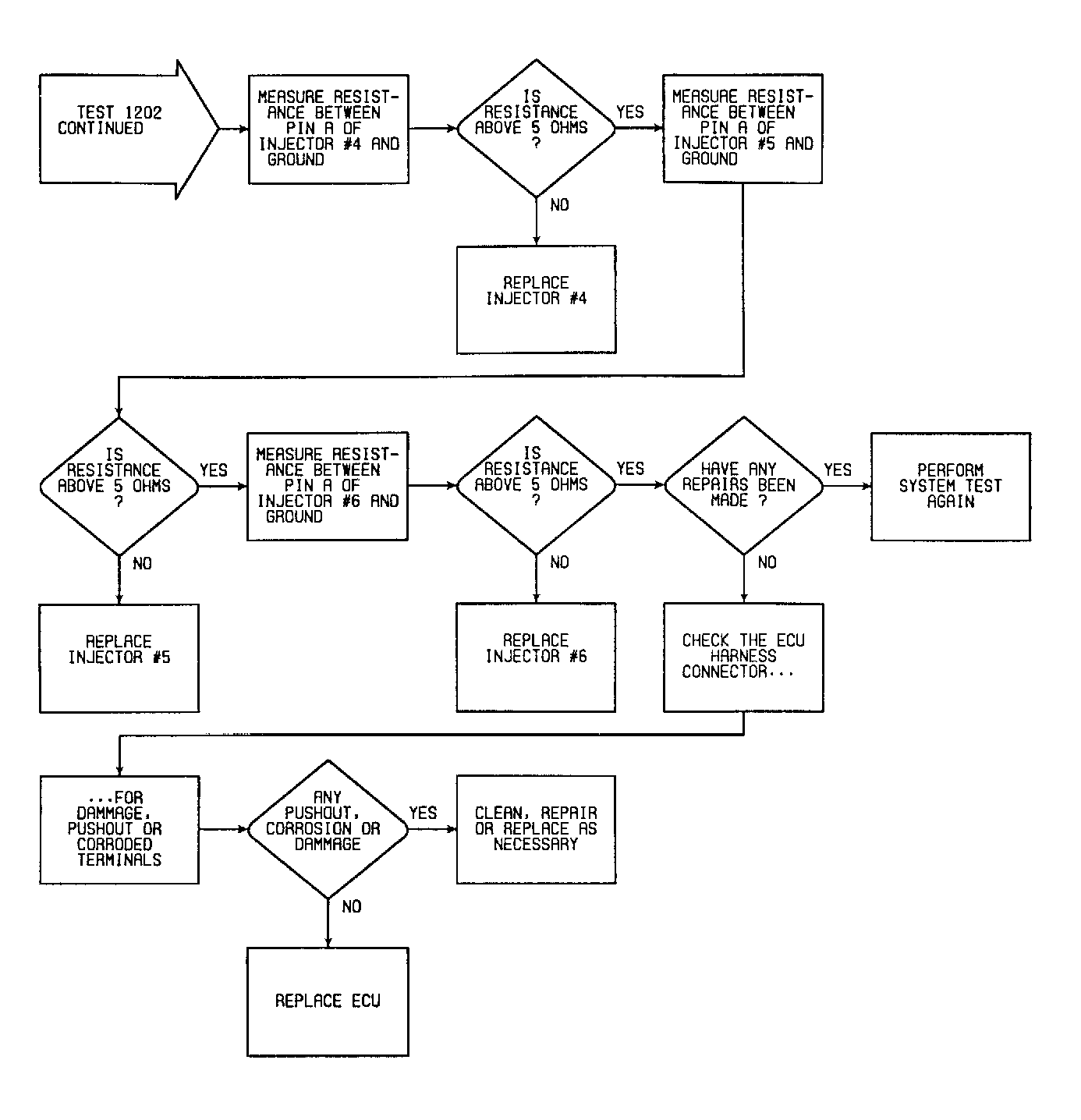

Fig 4: Fault 1202: Flow Chart All Injectors Shorted to Ground (3 of 3)
