Fault 1068: Latch Relay Circuit High

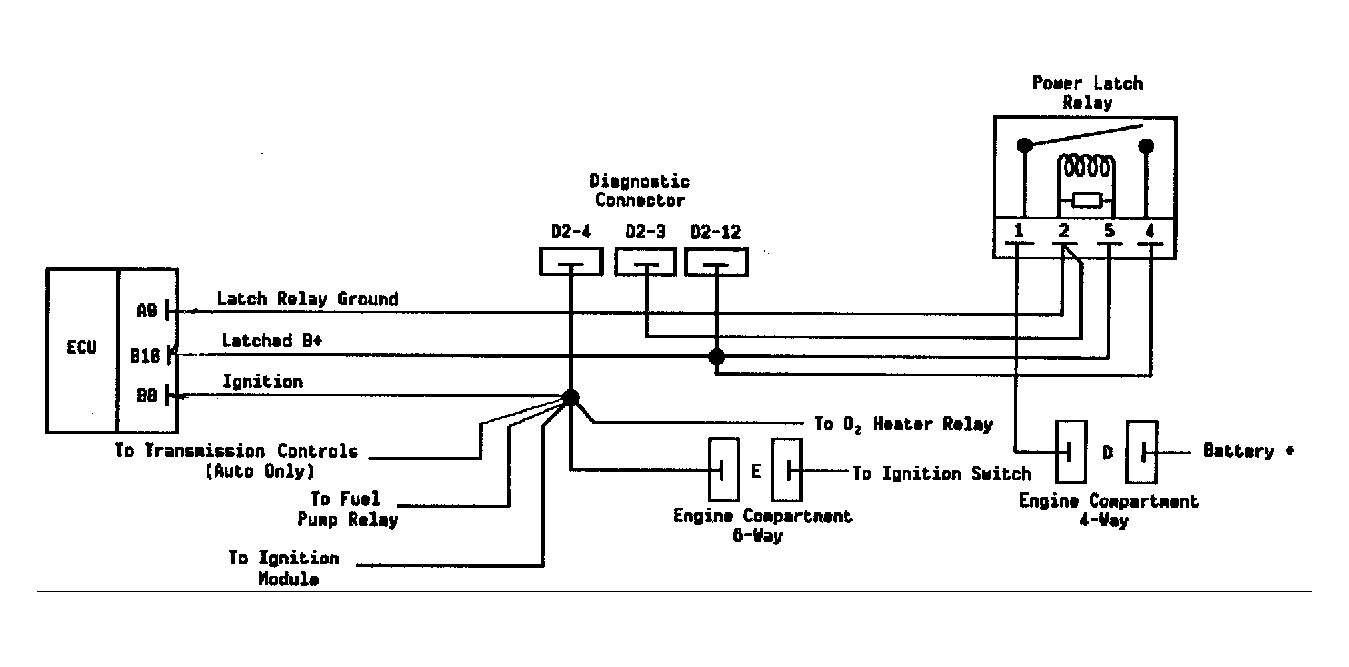

Fig 1: Fault 1068: Circuit Diagram Latch Relay Circuit High
G90A17855

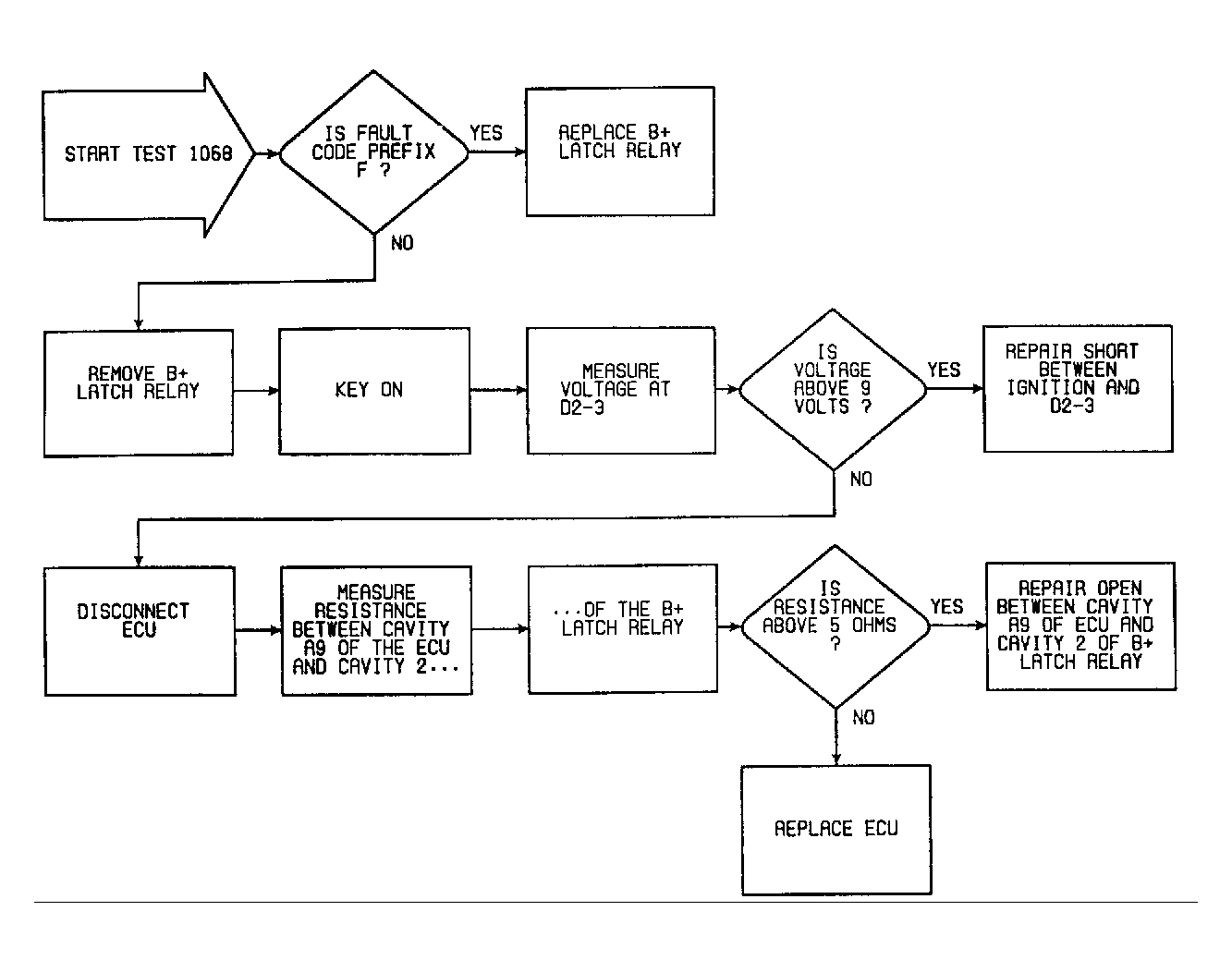

Fig 2: Fault 1068: Flow Chart Latch Relay Circuit High
G90I17895
