Fault 1059: A/C Request Circuit Low

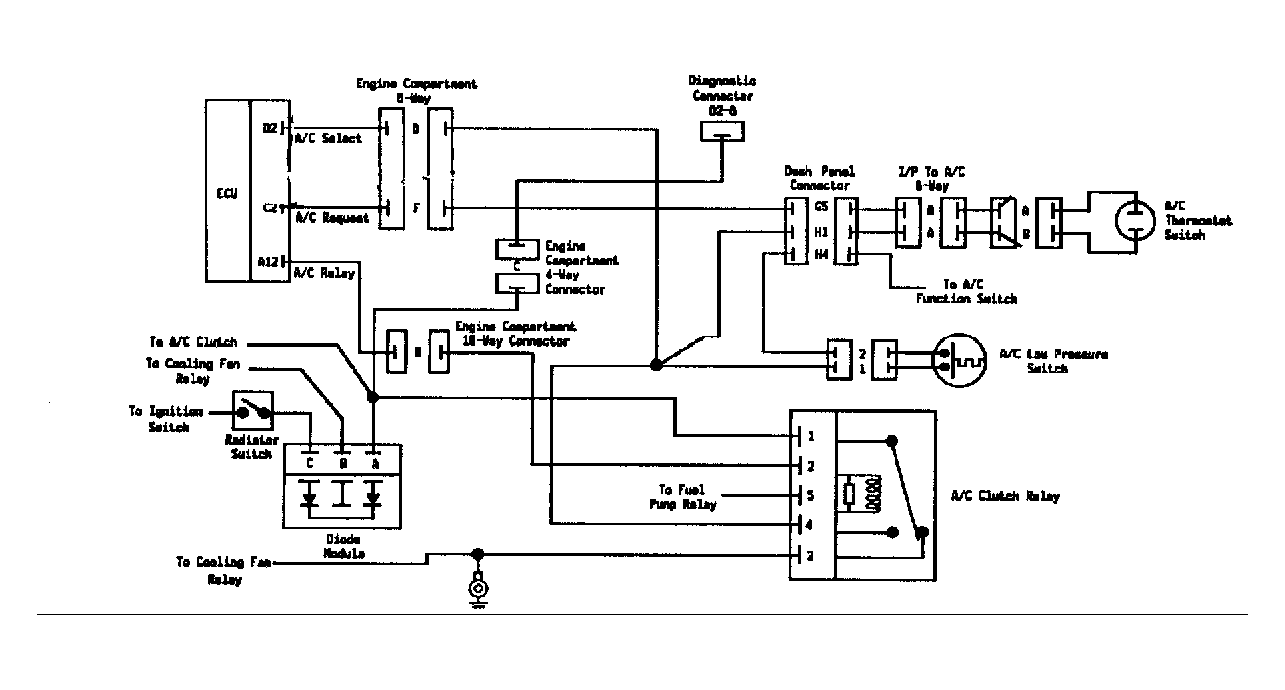

Fig 1: Fault 1059: Circuit Diagram A/C Request Circuit Low

G90B17880

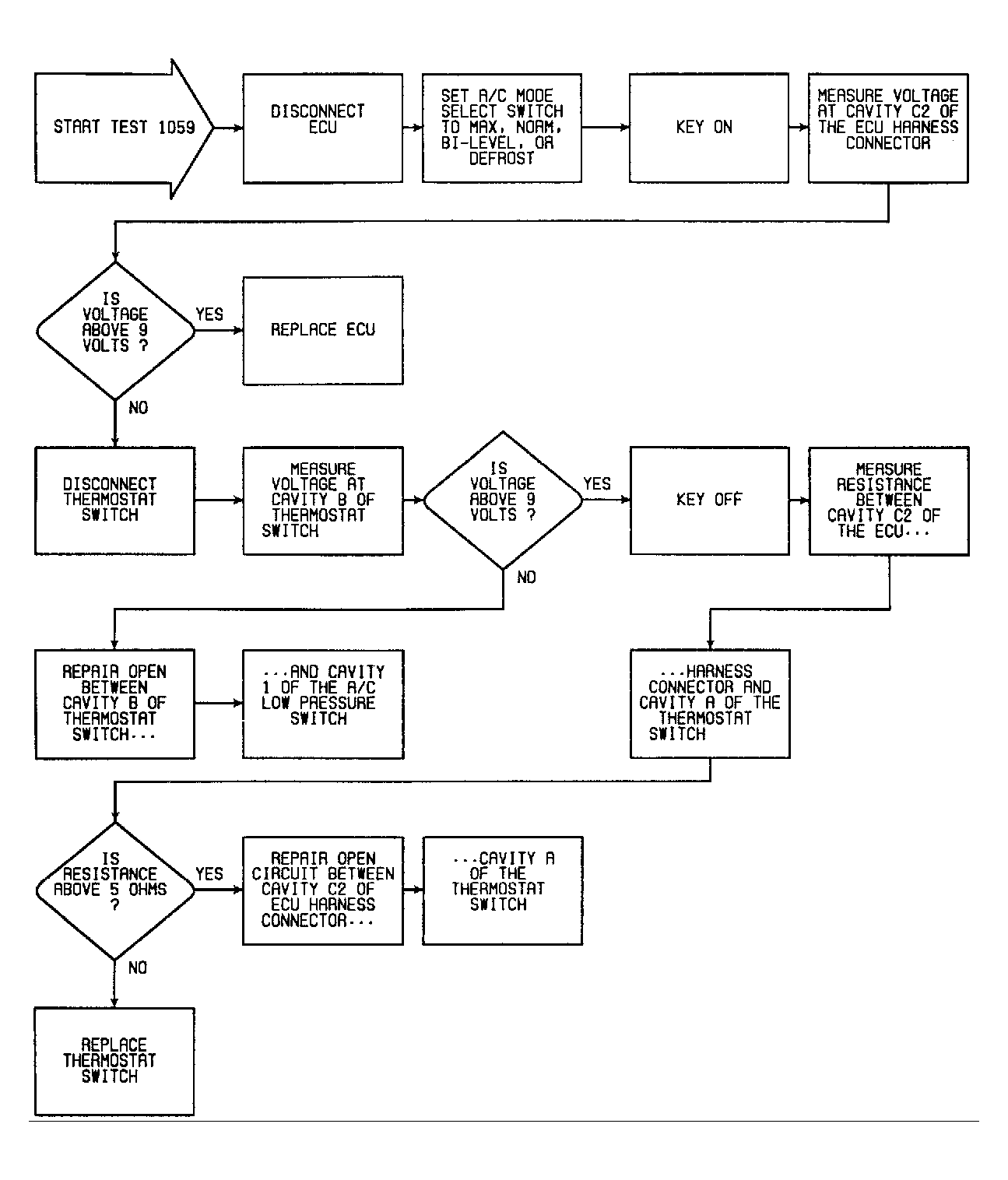

Fig 2: Fault 1059: Flow Chart A/C Request Circuit Low

G90C17881
