Fault 1057: Knock Circuit Shorted

Fig 1: Fault 1057: Circuit Diagram Knock Circuit Shorted
G90E17875

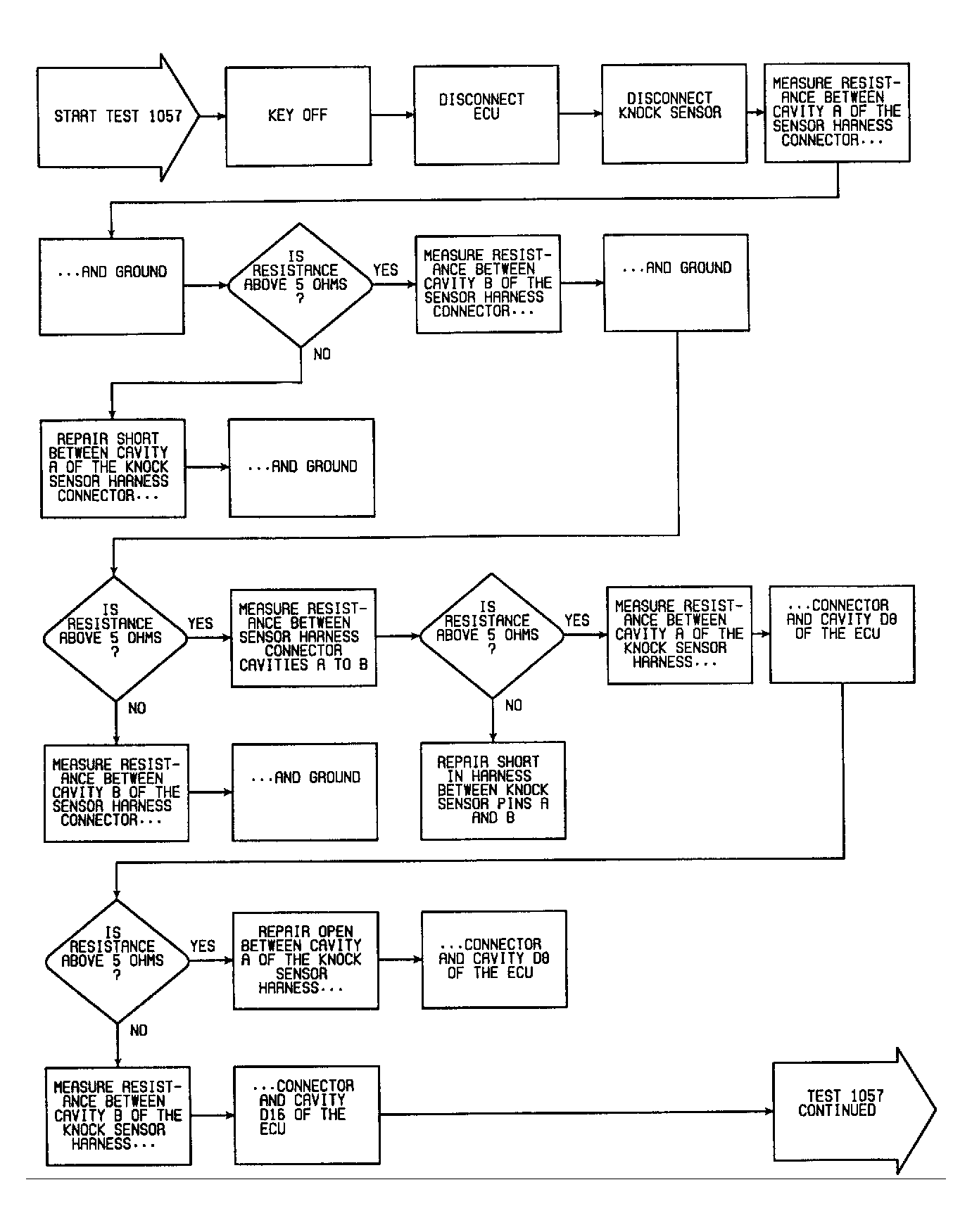

Fig 2: Fault 1057: Flow Chart Knock Circuit Shorted (1 of 2)
G90F17876

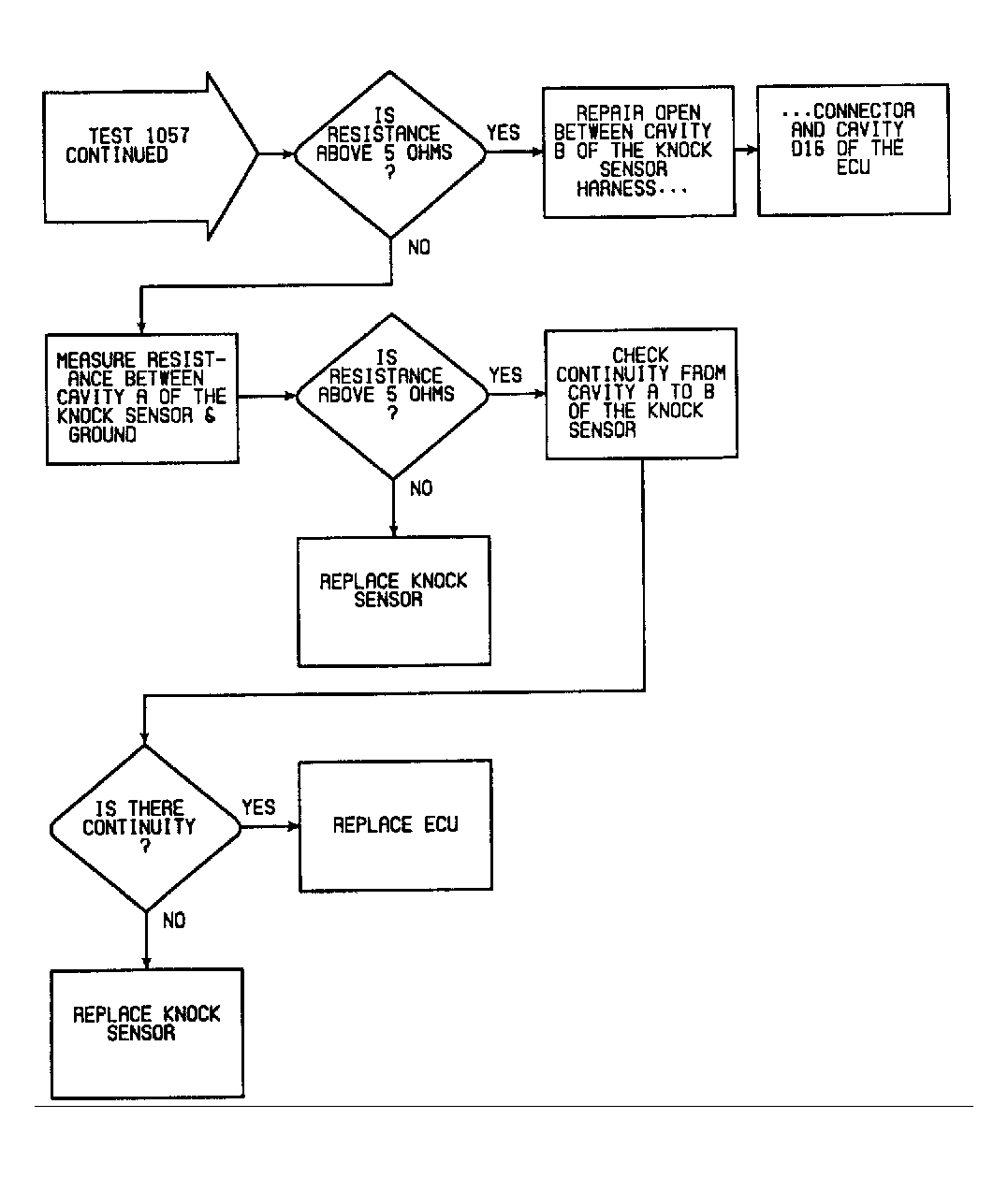

Fig 3: Fault 1057: Flow Chart Knock Circuit Shorted (2 of 2)
G90G17877
