Fault 1022: Start Circuit Low

Fig 1: Fault 1022: Circuit Diagram Starter Relay Circuit Low

G90J17839

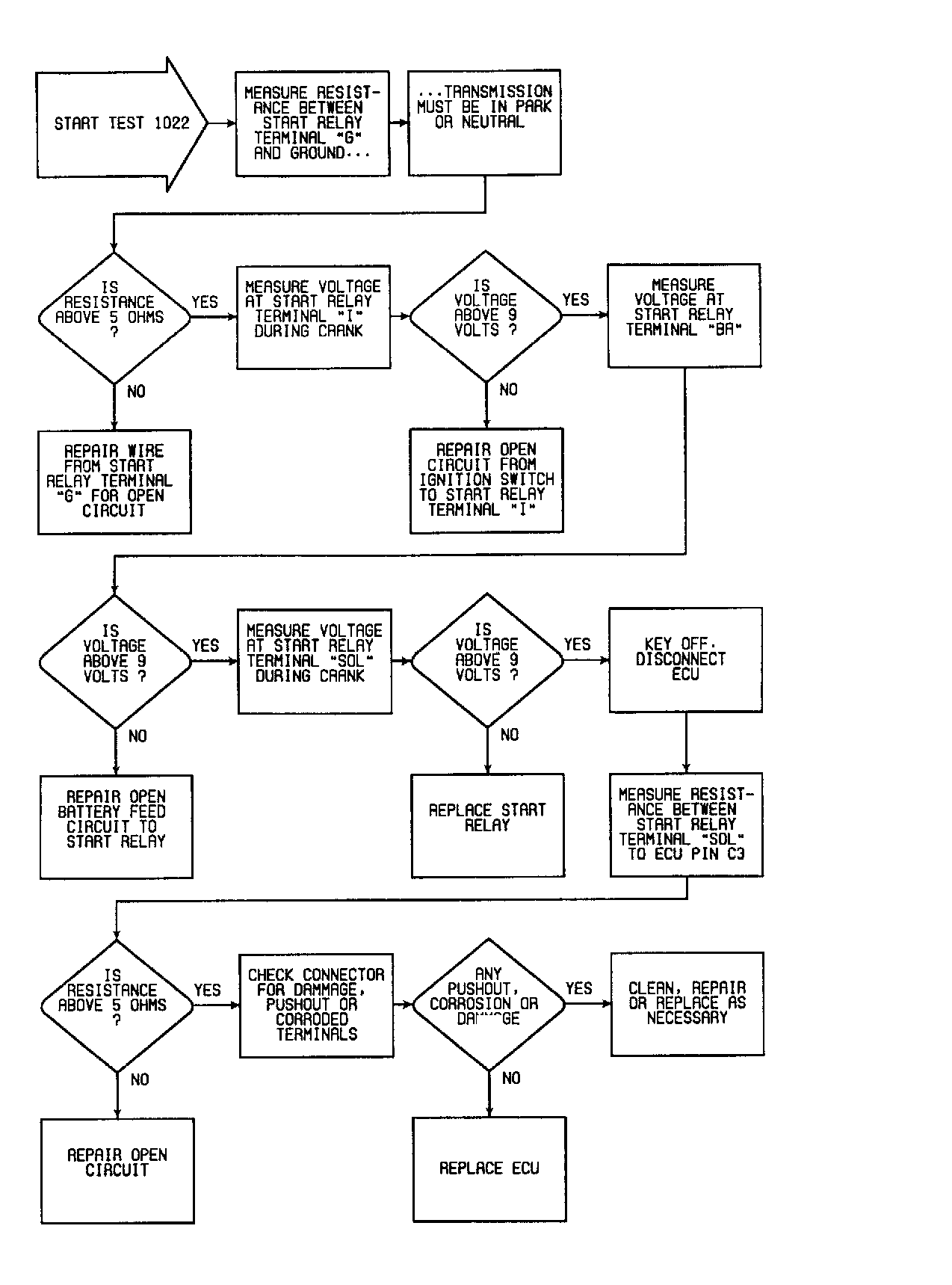

Fig 2: Fault 1022: Flow Chart Starter Relay Circuit Low

G90C17840
