Fault 1018: No Serial Data

Fig 1: Fault 1018: Circuit Diagram Serial Data Circuit

G90H17829

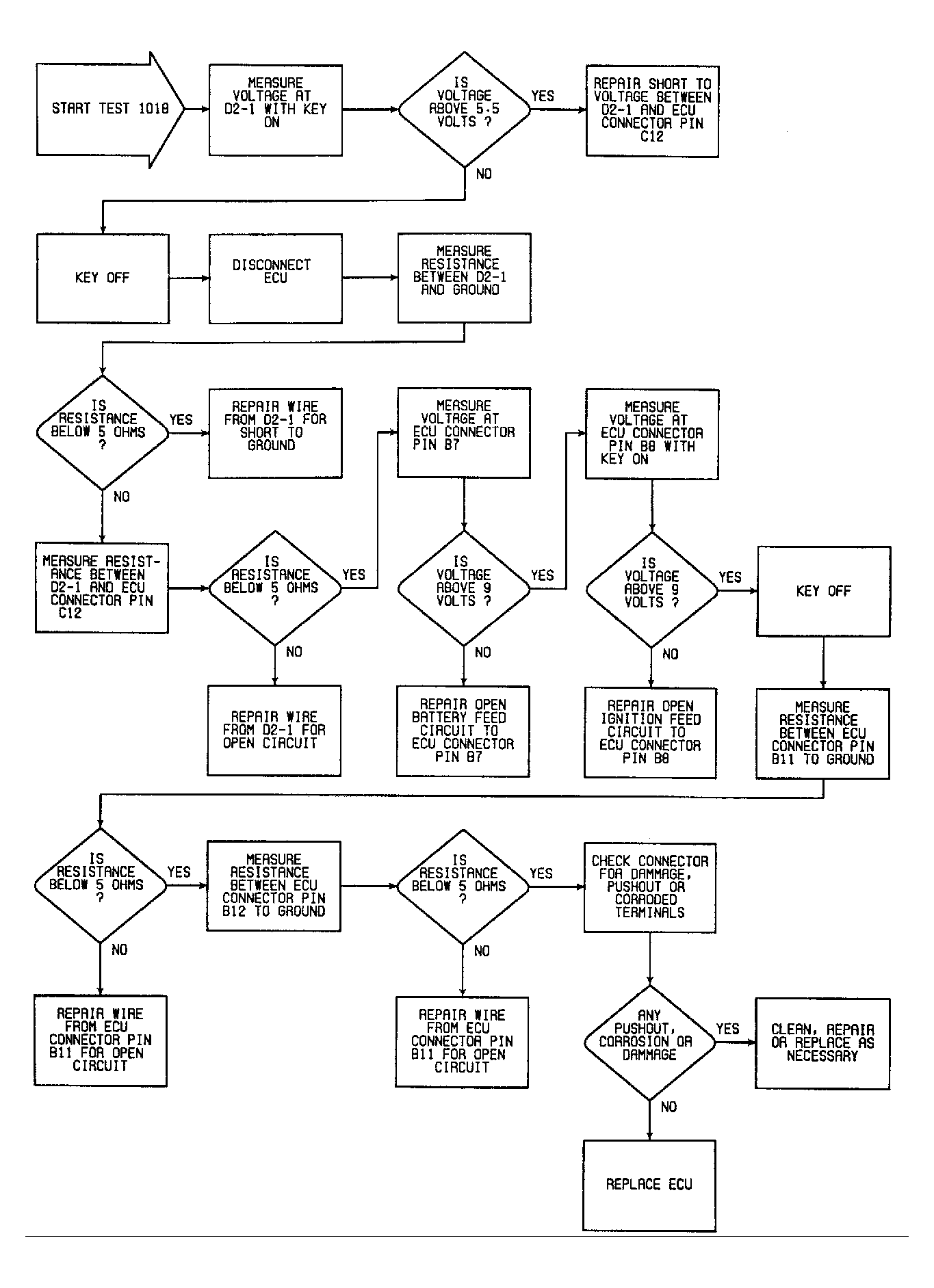

Fig 2: Fault 1018: Flow Chart Serial Data Circuit

G90A17830
