Fault 1014: Fuel Pump Circuit Low

Fig 1: Fault 1014: Circuit Diagram Fuel Pump Circuit Low
G90B17815

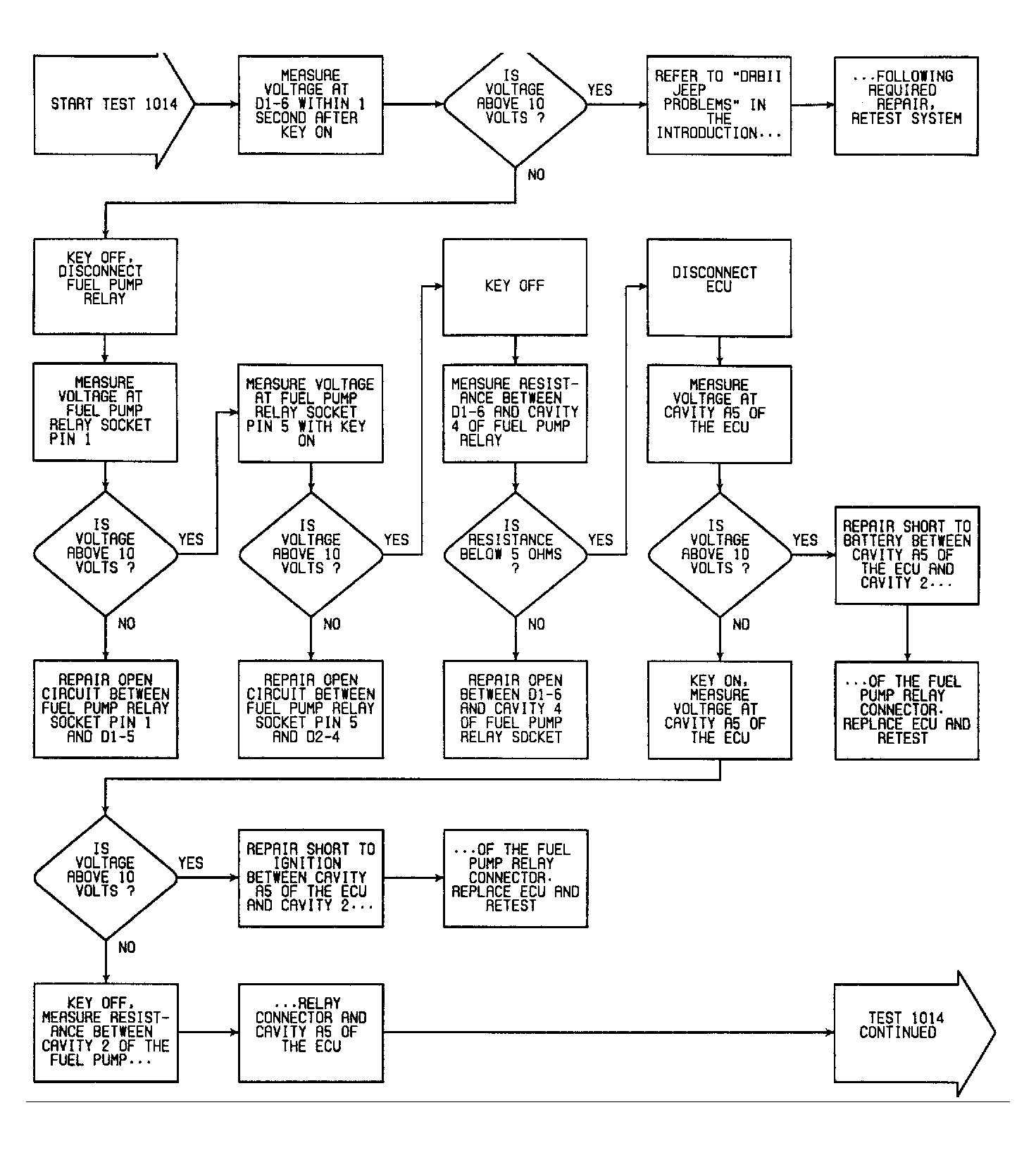

Fig 2: Fault 1014: Flow Chart Fuel Pump Circuit Low (1 Of 2)
G90B17823

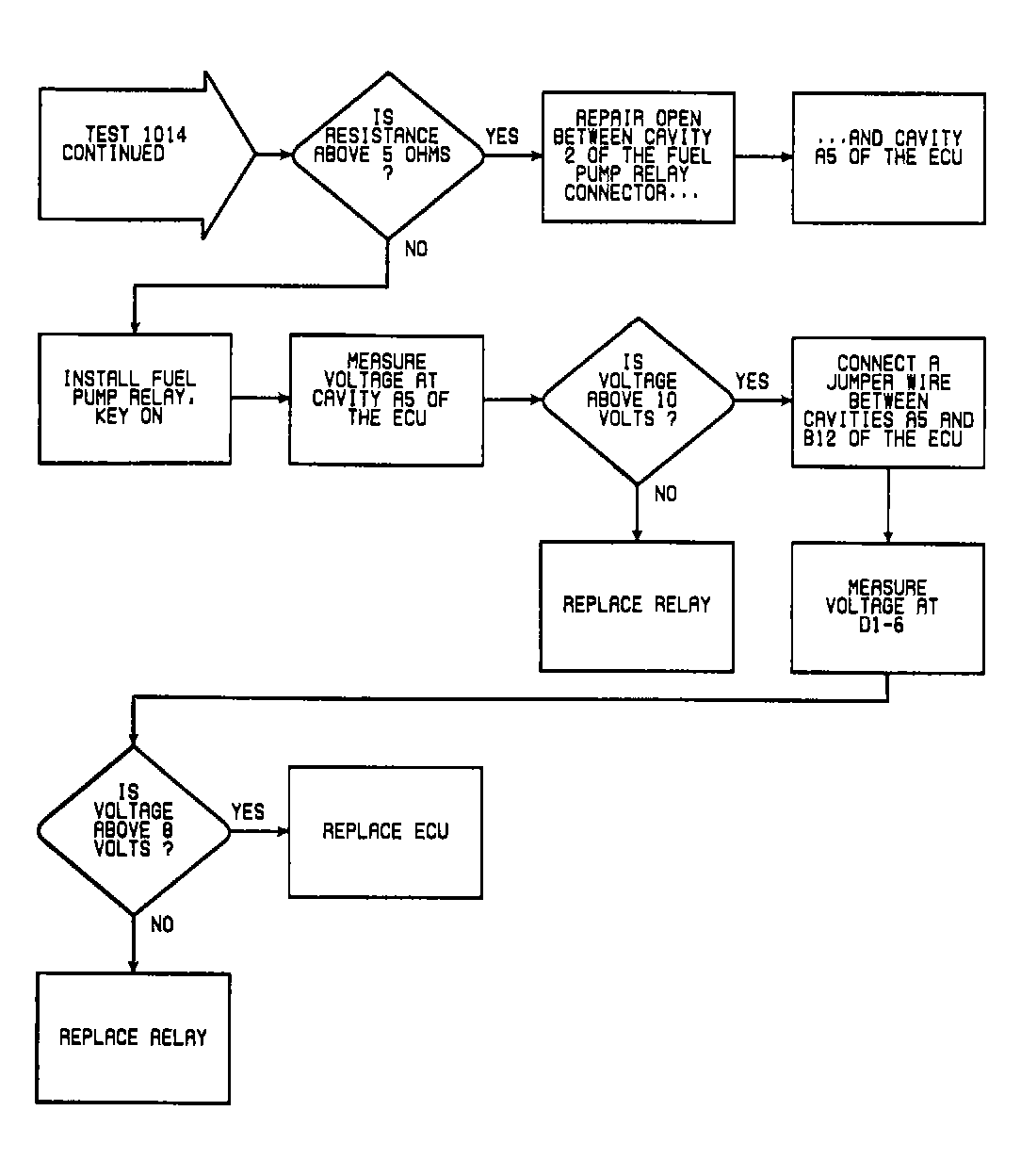

Fig 3: Fault 1014: Flow Chart Fuel Pump Circuit Low (2 Of 2)
G90C17824
